1200 1200s Abs Question

Discussion in 'Multistrada' started by Multistrada_PT, Feb 28, 2025.

  1. Dont think so... according to parts catalogue, "independent" speed sensor only shows up models from 2013 up...

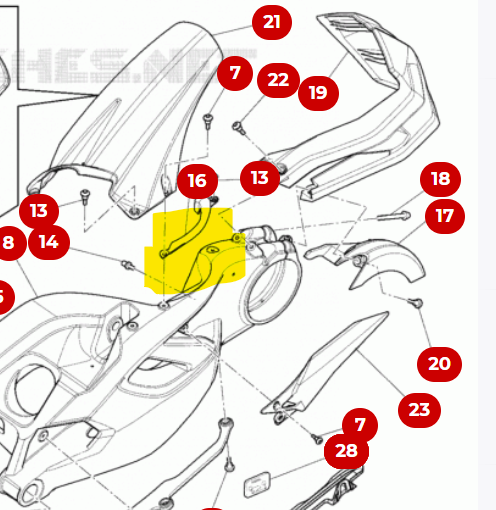

    this is the diagram for 2010-2012 model , there is no speed sensor/detector

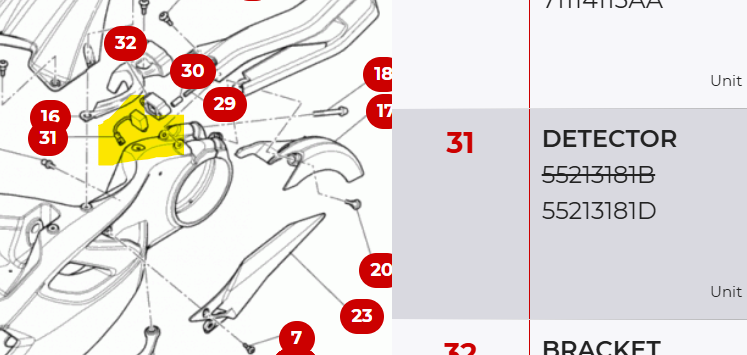

    And this is the 2013-2014 model diagram, where there is a speed detector


  2. 2010-2012 first generation Multistrada 1200 only had 2 sensors to operate the ABS, Traction control and speed. If I remember correctly, speed is taken from the rear sensor. Andy

    • Like Like x 1
