1991 900 Ss Restoration (slow)

Discussion in 'Supersport (1974-2007)' started by wolfram, Jun 12, 2015.

  1. Beautiful bike, with amazing history...

  2. I can give you the OEM 900SS jetting from around '97 era so probably the same......and Dynojet as well......

    Do you know if you have OEM or DJ?

  3. OEM - ta

  4. When I go the bike, this one was hanging free with the throttle and choke cables running through it - I presume it should be bolted on somewhere?
    [​IMG]
    [​IMG]

  5. Yes. It is held by the right side bolt of the regulator.

    • Agree Agree x 1

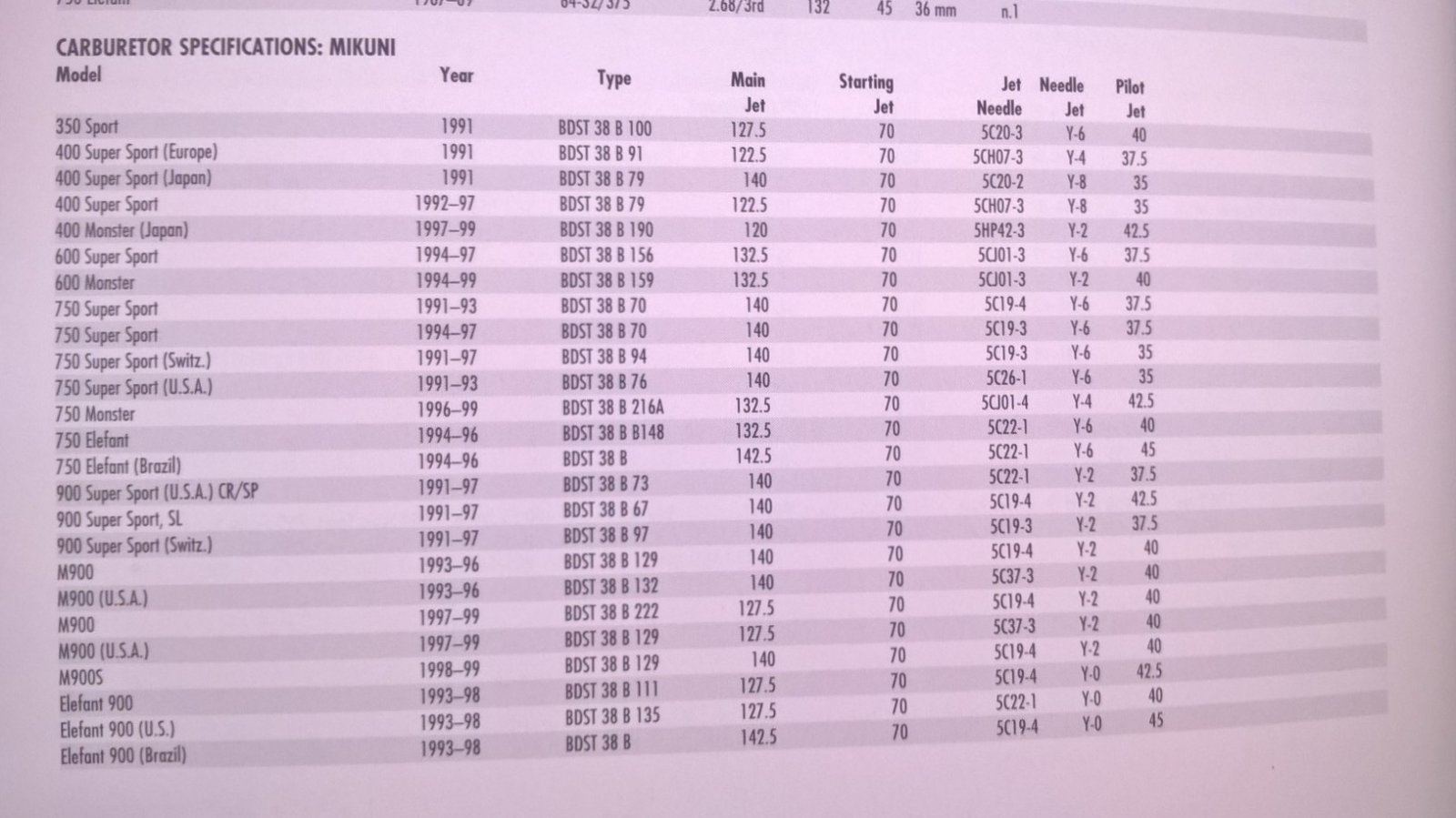

  6. sscarbspec.jpg

    • Agree Agree x 1
  7. And don't forget the grommet.........

    • Like Like x 1
  8. Or the cheese. Don't forget the cheese.

    • Funny Funny x 1
  9. As far as I recall, the choke cable is not routed through that ring. Only the throttle cables. Am I wrong?

    • Useful Useful x 1
  10. Correct. The choke cable runs along the rhs of the frame

    • Agree Agree x 1
    • Useful Useful x 1
  11. But it's a pig to get it to sit right......If I recall correctly it runs across the front of the headstock roughly with the clutch hose, but I can't check on mine because I have a different clutch hose route to the original OEM hose......but the bend in the choke cable from the RHS frame to the choke mounting bracket is tight, almost 90 degrees.

    • Like Like x 1

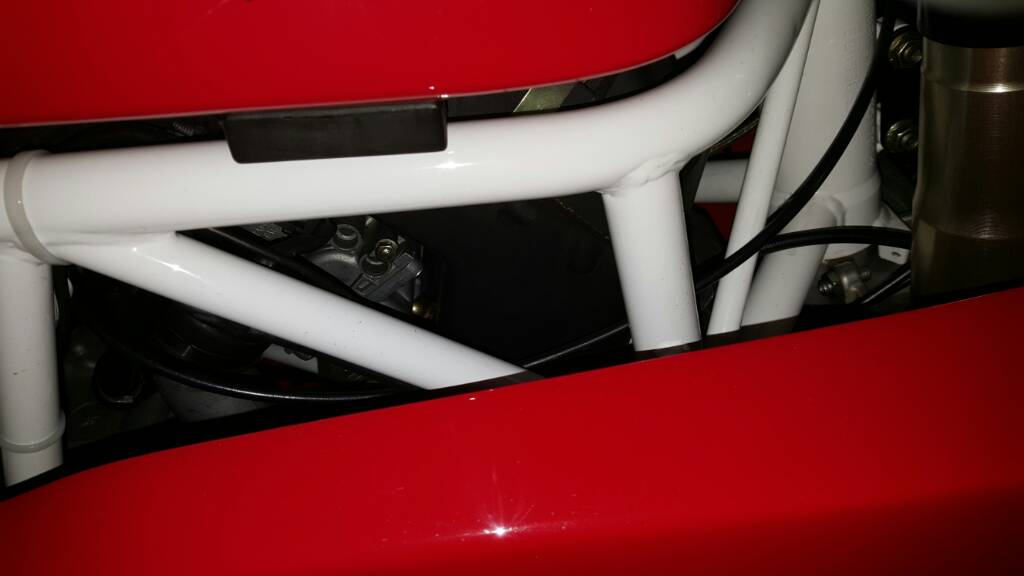

  12. I've had mine off and on a few times and don't remember it being too tricky. It does go in front of the headstock then inside the frame. Here's mine

    [​IMG]

    • Useful Useful x 1
  13. When ain't you my huckleberry............mine is still at as near as dammit 90 degrees.........

  14. Thanks for all the help on the carbs - I have the following table:
    [​IMG]
    anyone fill in any blanks? also - which of these is called the 'emulsion tube'? very confused with all the different names for things. I will post on the monster forum as well

    #314 wolfram, Apr 5, 2016
    Last edited: Oct 24, 2017
    • Like Like x 1
  15. 'Needle Jet' has the reference number of the Needle, so I guess that should read Needle.

    Needle Valve Jet is the Emulsion Tube,

    14mm for the float height is purely a starting point and should probably be less...........there is no set dimension by Ducati for the the fuel / float height..........which by the way, are opposing....the float height is measured 'upside down', so the greater the dimension, the lower the fuel height in the float bowl.

    • Like Like x 1
    • Useful Useful x 1
  16. if you get completely stumped I can recommend Allens Performance, they're very helpful and experienced in all things carb related, give them a ring and speak with one of their tech chaps

    • Like Like x 1
  17. OK, have been reading up on carbs today - lots to learn!

    Turning to another issue, How does one separate the front brake discs from the rotors? Those 'bobbins' don't look easy to remove...

  18.
    #318 WAH900ss, Apr 6, 2016
    Last edited: Apr 6, 2016
    • Useful Useful x 1
  19. Clearing powder-coat out of the rotor bolt hole threads...

    [​IMG]

    • Like Like x 1
