748SP 1198S sleeper project

Discussion in 'Builds & Projects' started by Cranker V2, Nov 18, 2013.

Page 4 of 5
  1. more than likely a high reader. Its only a 748 motor mr

    #61 Cranker V2, Dec 11, 2014
    • Funny Funny x 1
  2. And that damn dyno said it had 97ft/lb torque. Go figure huh

    #62 Cranker V2, Dec 12, 2014
    • Like Like x 1

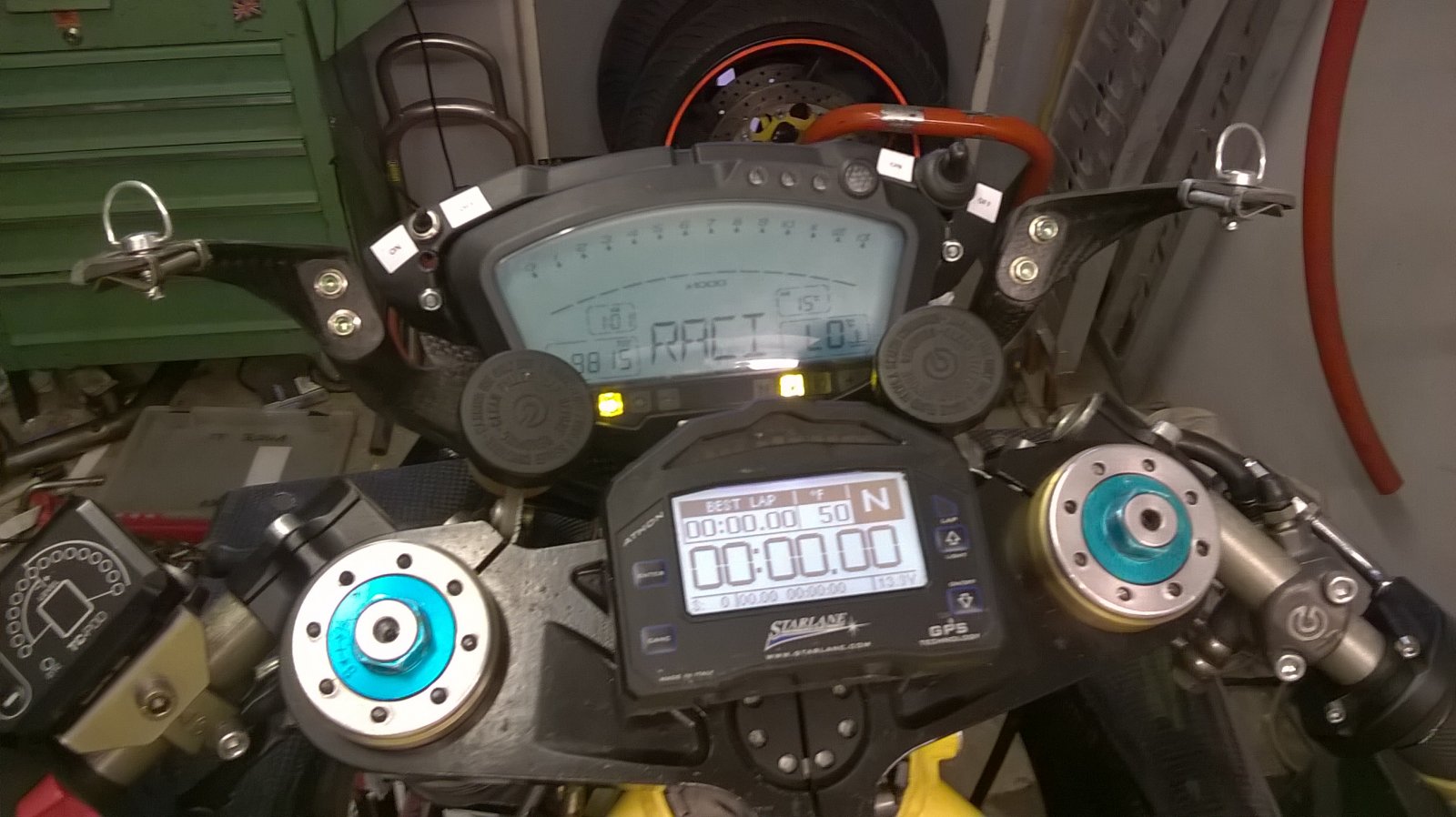

  3. Starlane GPS laptime and shift light fitted on top clamp, ignition and rain light switches fitted in dash surround. TCS TC pod fitted on clutch lever mount. WP_20150131_002[1].jpg 10mm closed cell foam used to lift the GPS unit of the top clamp, the pain in the arerse unit has a rear entry cable so needs that little lift.

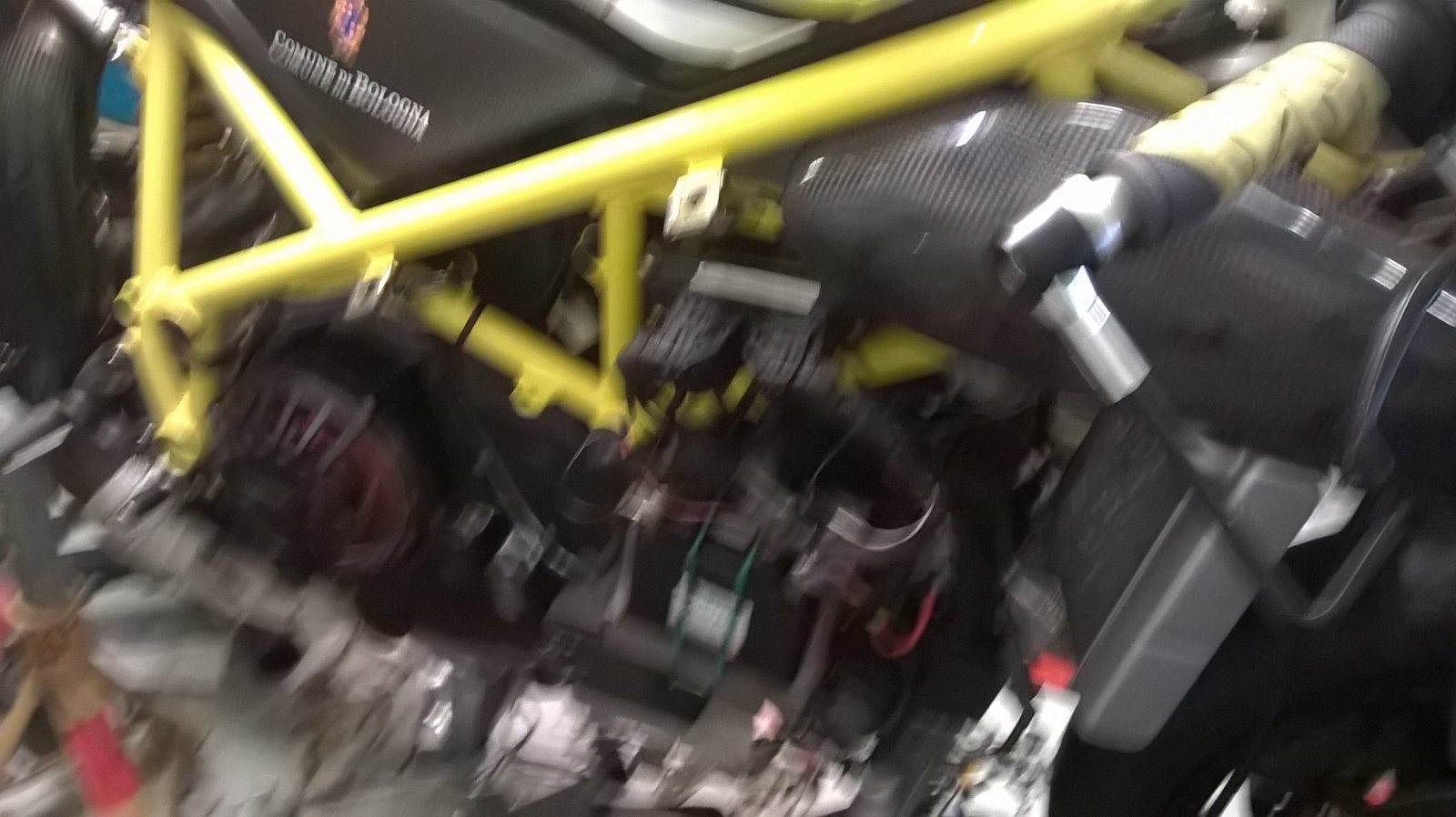

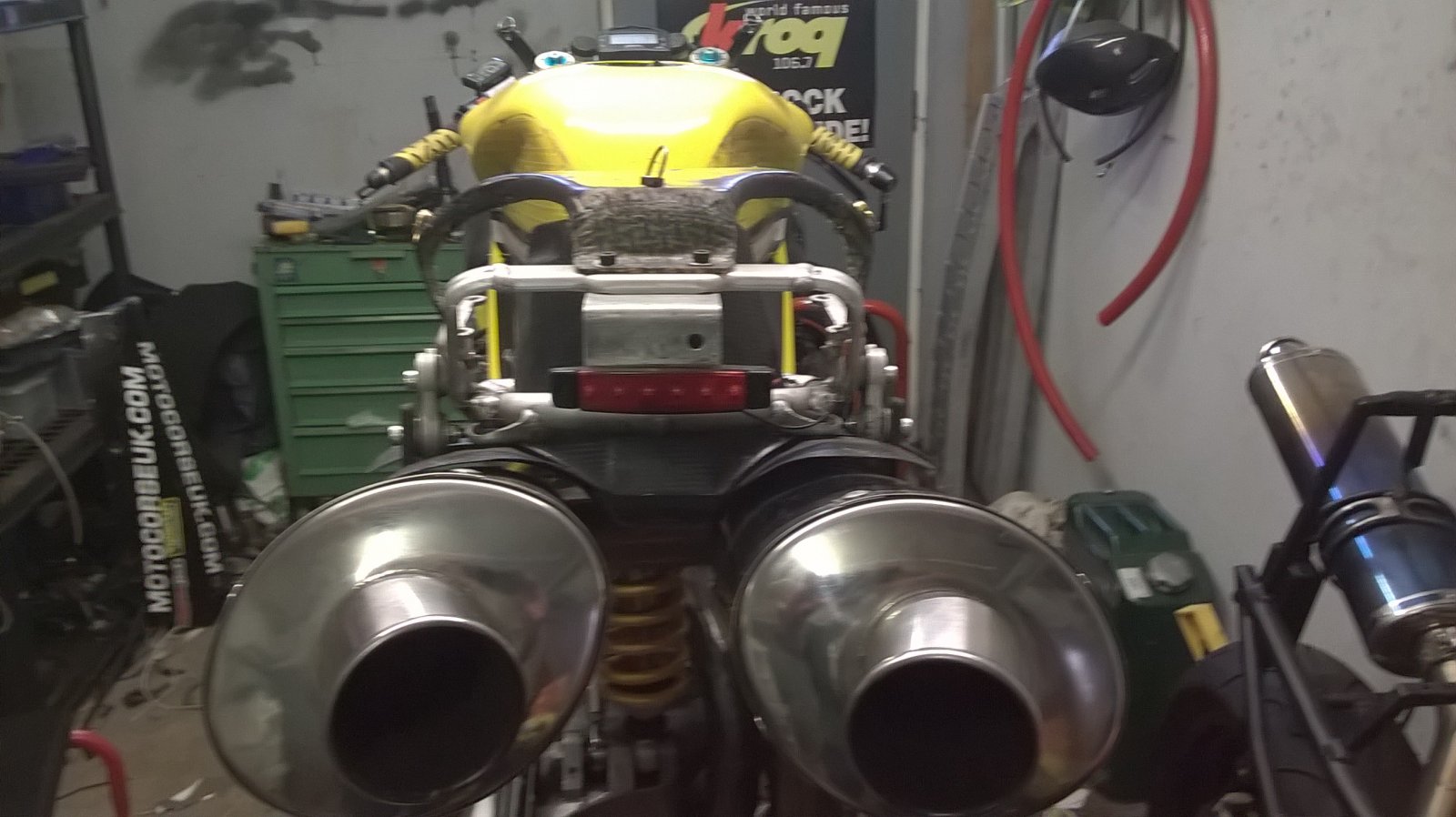

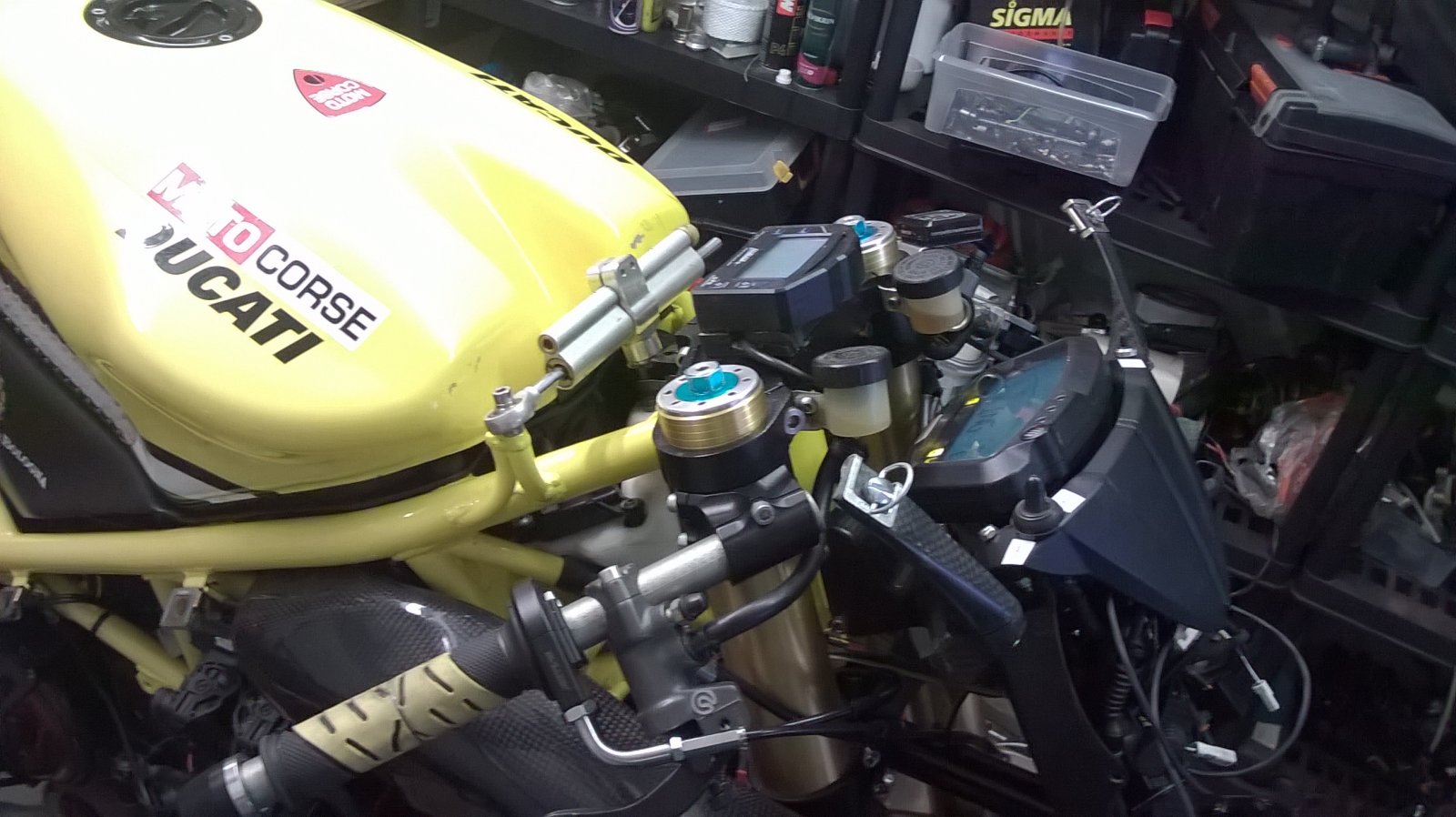

    WP_20150131_003[1].jpg Blurred buggery. WP_20150131_004[1].jpg WP_20150131_005[1].jpg The rain light is mounted on a piece of junk aluminium and off centre. What a waste of effort. Time to re-plan and re-execute in a more professional manner. The wiring is done though, on its own little circuit with the on/off switch up front.

    #63 Cranker V2, Jan 31, 2015
    • Like Like x 4
  4. Looking really good.
    I have some bright yellow cable ties knocking about somewhere, if you want them.

    #64 deleteduser211220, Jan 31, 2015
    • Like Like x 1
  5. ..


    #65 andyb, Jan 31, 2015
    • Funny Funny x 1
  6. what cans have you used and why are they twisted outwards as it were....

    #66 andyb, Jan 31, 2015
    • Disagree Disagree x 1
  7. akrapovic evo cans, mid section and back half of headers - custom exhaust port sections. I guess they are twisted because they are.

    matt corse owned the system in the past I believe

    #67 Cranker V2, Jan 31, 2015
  8. Old sad eyes :(

    #68 Tobytyke, Jan 31, 2015
    • Like Like x 1
  9. wall-e.jpg

    #69 Tobytyke, Jan 31, 2015
    • Funny Funny x 1
  10. Fitting of the AP rear caliper is being a drawn out process of cut n shut and machining. The caliper is intended to be used with a 200mm x 4mm disc and the standard 916 series discs are 220mm x 5.4mm. So the discs id off being skimmed 0.7 mm on each pad face and 4mm (yes I know- 216mm dia) off the diameter. This will give clearance back and allow chain adjustment. Running the big hub swingarm with a modified (thanks again FE) small hub reduced the eccentric action and reduces clearance of the caliper mount. It will fit in the end and achive the eight loss I was looking for (1kg)

    #69 Cranker V2, Jan 31, 2015
  11. Did @bradders fit them.........

    can you not twist them square ......

    #70 andyb, Jan 31, 2015
    • Disagree Disagree x 1

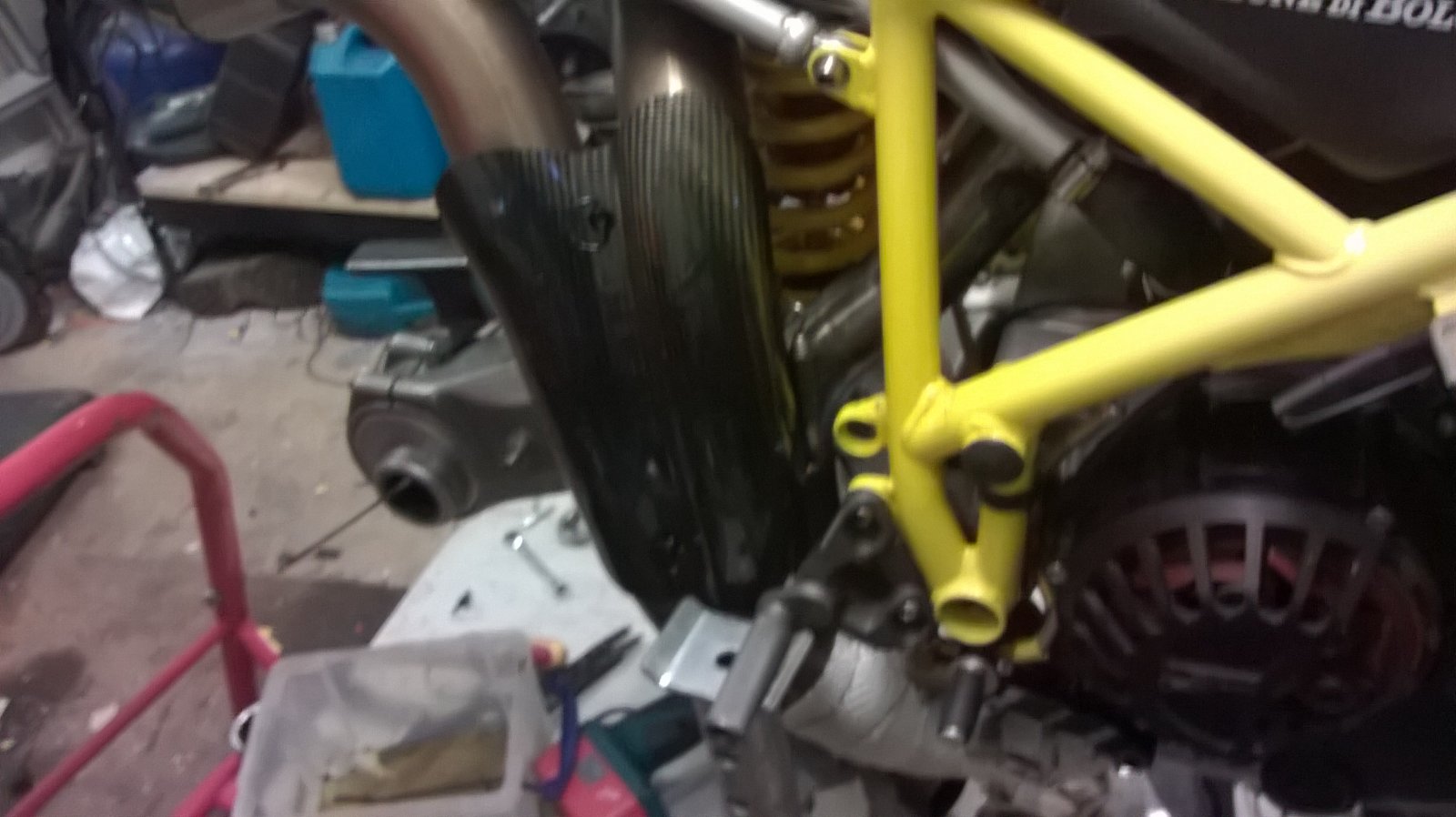

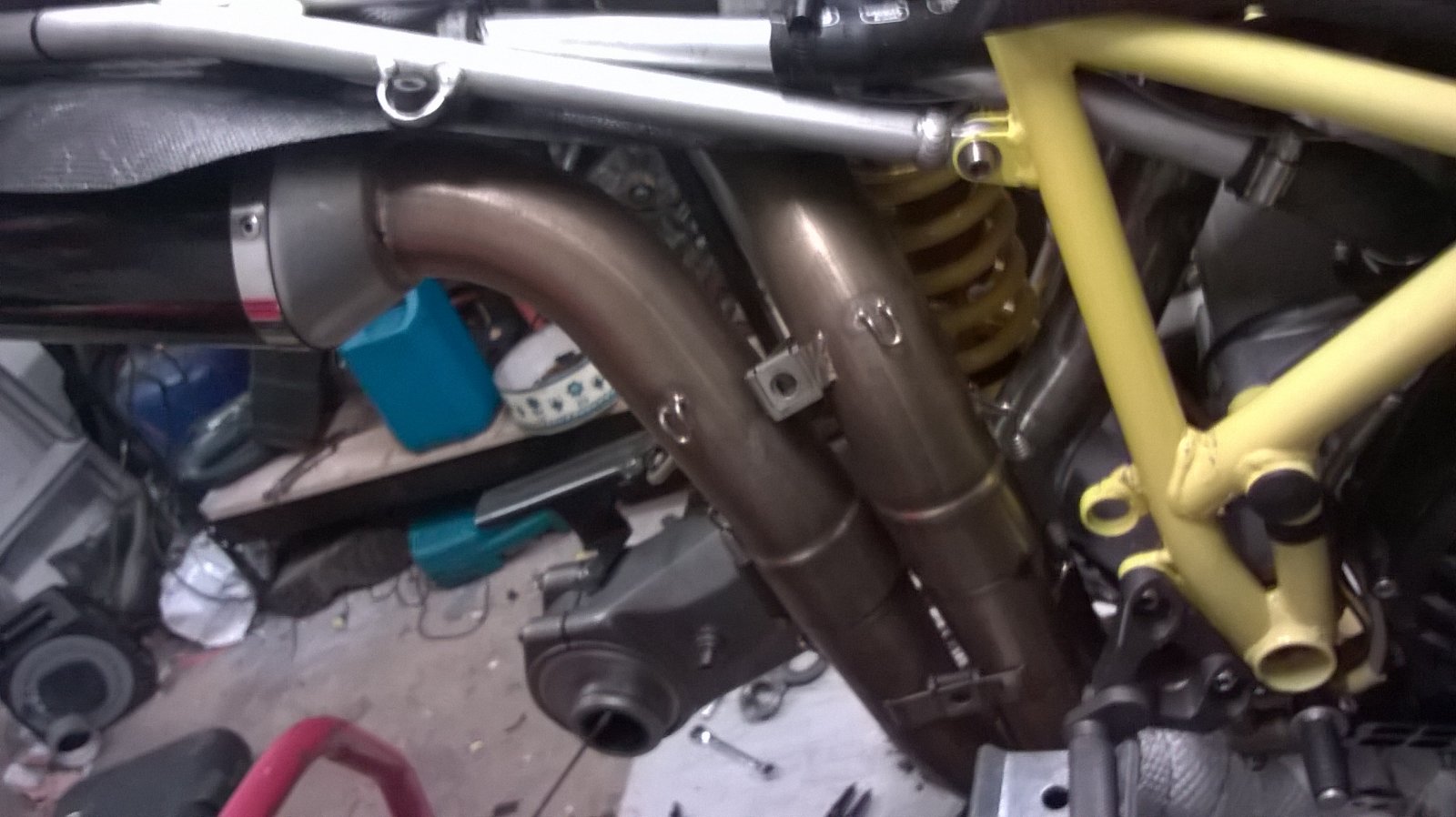

  12. WP_20150131_006[1].jpg WP_20150131_007[1].jpg No its how they are fabricated. Bradders would try to fit to his van - as windscreen wipers

    #71 Cranker V2, Jan 31, 2015
    Last edited: Jan 31, 2015
  13. Can you not get the pipes cut just before they go into the cans, then twist and re-welded?

    #72 deleteduser211220, Jan 31, 2015
  14. I could, but I'm happy to have a sad face for now. The hangers are made to for the position they are in too. So thay would need to be changed - more buggerance.

    Bodywork is of for paint now, I just keep fiddling with parts and re fabbing bits as I wait for the sun to return and the first track run out. Anyone interested in 3 x phonic rings to fit 5 hole PCD wheels? One used and colour faded, two as new and never fitted.

    #73 Cranker V2, Jan 31, 2015
  15. Great work Cranker, serious bit of kit you have there. It will pull like a train. Top work

    #74 Haydn, Feb 1, 2015

  16. So JC what'shisname disagrees on this.................but there is no solution provided....great!

    #75 andyb, Feb 1, 2015
  17. The cans are as designed originally. Not damaged, not modified from mid section back. It would seem there is no problem, just a matter of taste. I am happy enough with them, they are not run of the mill termis after all. ;)

    #76 Cranker V2, Feb 1, 2015
  18. You still building it!!!!!!!!!!!!!!!!

    #77 Charlie999R, Feb 1, 2015
    • Useful Useful x 1
  19. Yes!

    #78 Cranker V2, Feb 1, 2015
    • Like Like x 1
  20. ;)

    Screen Shot 2015-02-01 at 19.18.00.png

    #79 andyb, Feb 1, 2015
  21. [​IMG]

    #80 Cranker V2, Feb 1, 2015
