How thick are the lifter plates?



I still don't understand what you or they have done I'm going for a 6mm spacer (just measured it btw)

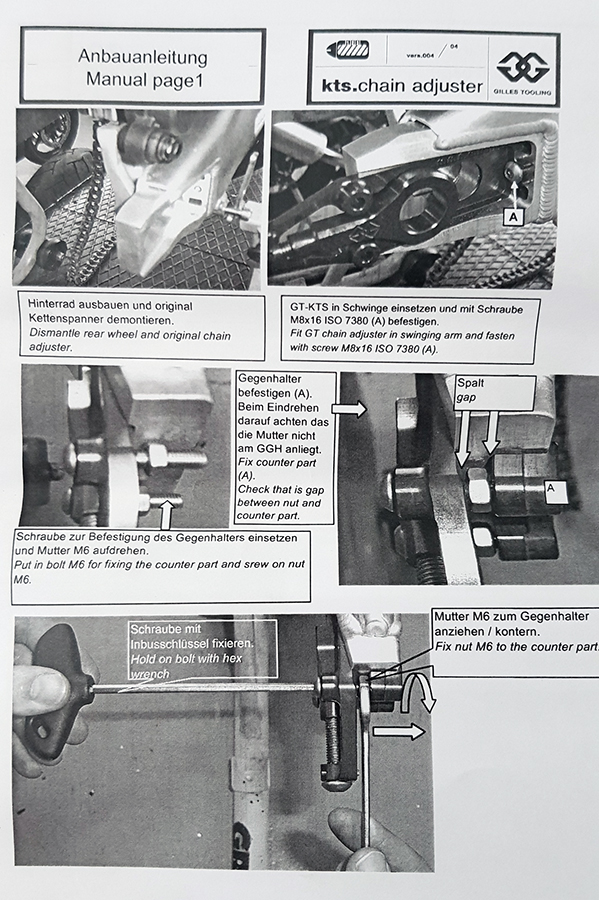

Hang on a mo, I'll check (thought I said on the photocopy profile I sent you)



7.00mm



I can’t recall



I see what you’ve done but how did you get a spanner on the nit as it looks like it’s hidden within the recess?



And how does the nut tighten at the same time as the bracket - if you tighten the bracket first it will rock on the threads, then the nut has to be tightened somehow, I am confused. A 6mm spacer will be more robust



Now that makes more sense - but I'm still going for a spacer

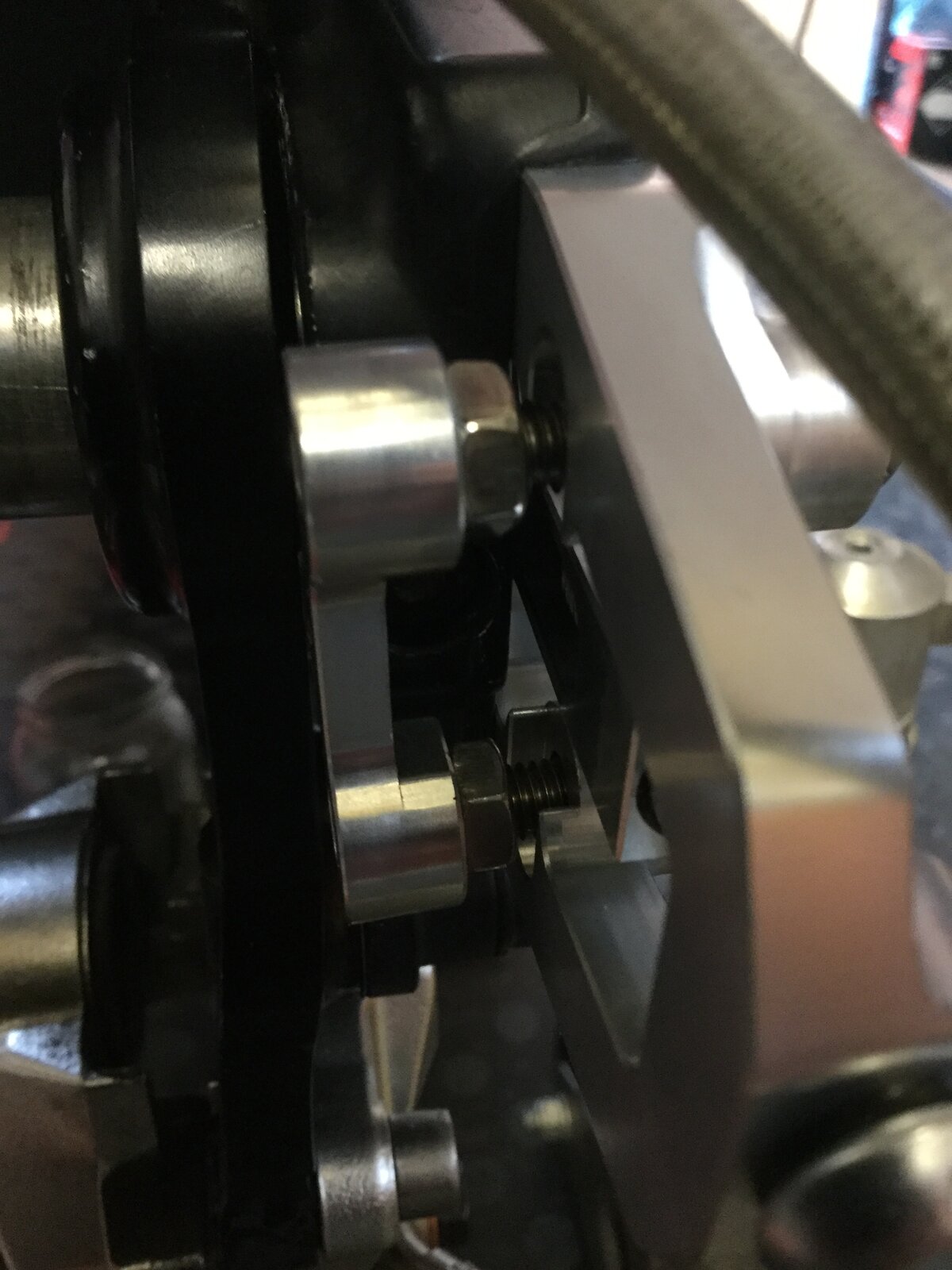

So like this?



I’ve ordered these spacers 6mm as the nuts look a little bit of a bodge against @Jamie Clare lovely work! Just need to order some 30mm domed bolts to finish off.
https://www.ebay.co.uk/itm/193391036716



Just ordered these too

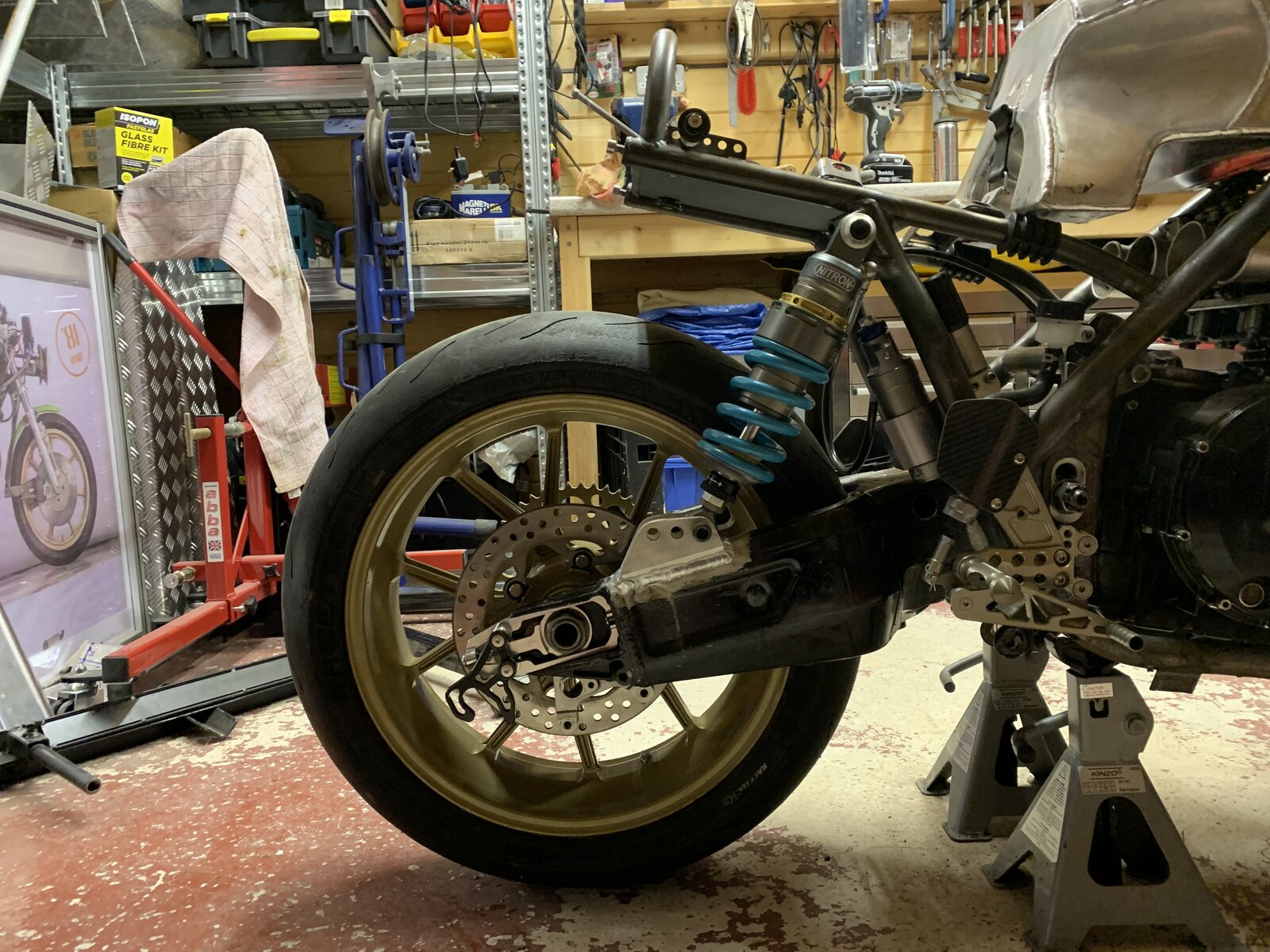

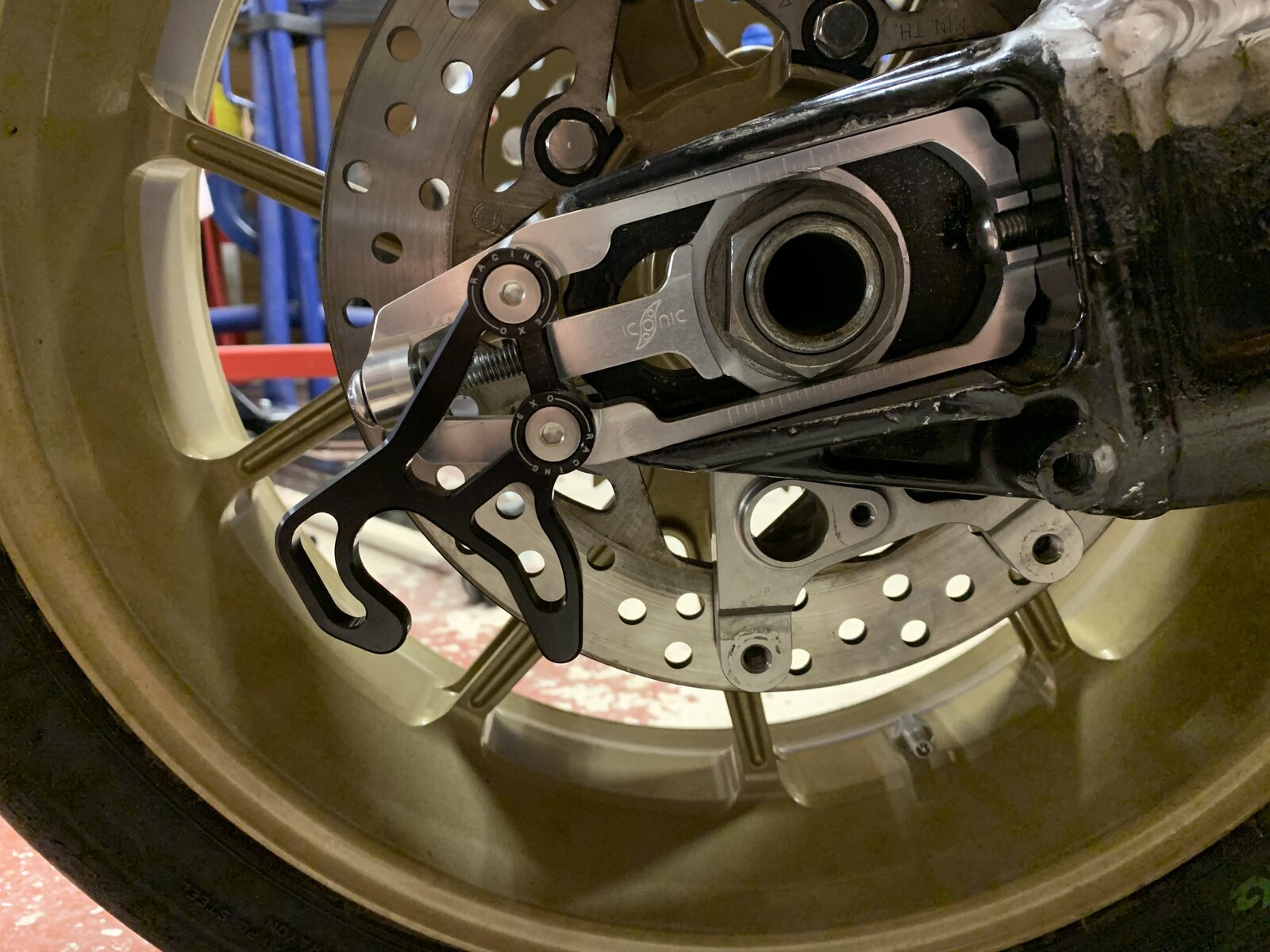

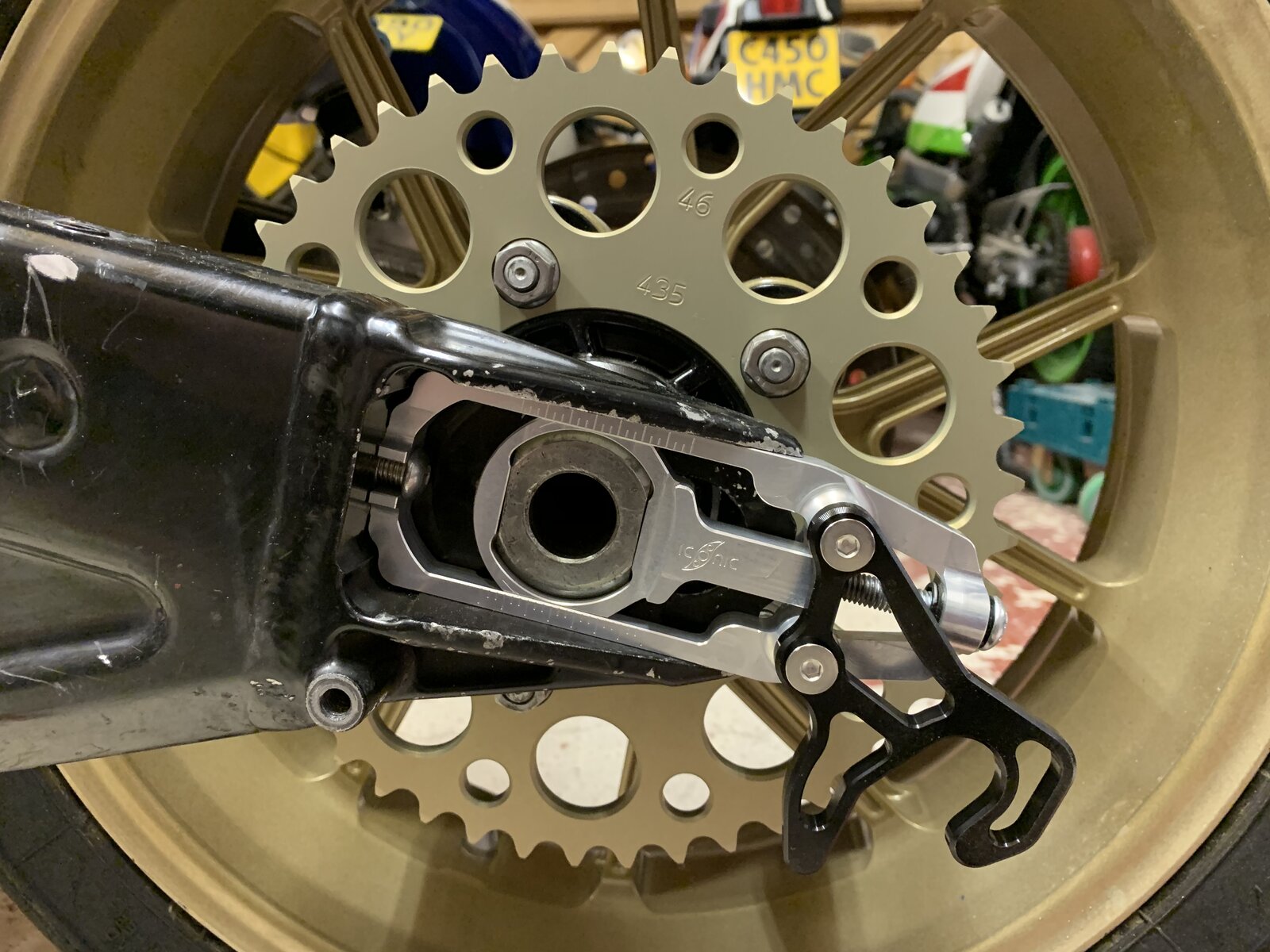

My set arrived yesterday - looks great. Many thanks Jamie



Spacers arrived today, should’ve got 7mm!

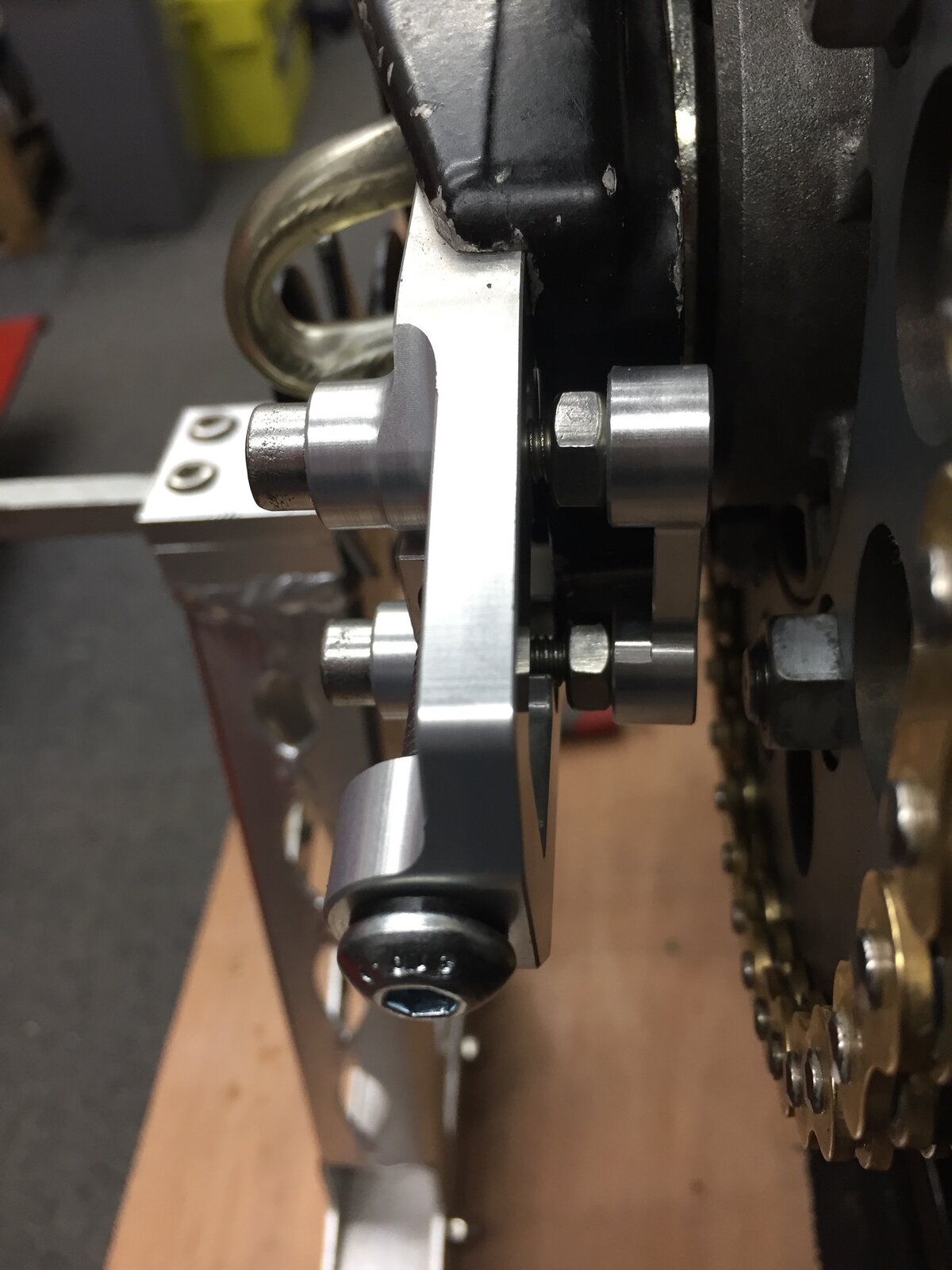

Yeh, 7mm spacing and it just kisses the inside of the swingarm



Are these extra parts required for the basic installation or with the paddock stand parts?



thanks for the info.

What’s the hole diameter of the spacer required and do I need 4? Not looked at installing them yet.was hoping to do it Saturday but that may not happen now
