Discussion in 'Supersport (1974-2007)' started by johnboy, Feb 13, 2013.

  1. So what happened to the oil cooler Guard then.

  2. not finished that yet about 50% there
    just thought I would get the clutch sorted as the super sausage is looming
    also need to do an oil and filter change beforehand
    hoping to have oil cooler guard sorted before then
    attention span is a b..............ooh a squirrel :Watching:

    • Like Like x 1
    • Funny Funny x 1
  3. well got round to a bit servicing oil and filters etc
    also fitted a replacement air filter lid clip and pin
    what a crap design for holding the pin in place
    no wonder I had one missing
    and that moto italia at Lincoln keep them on stock;)

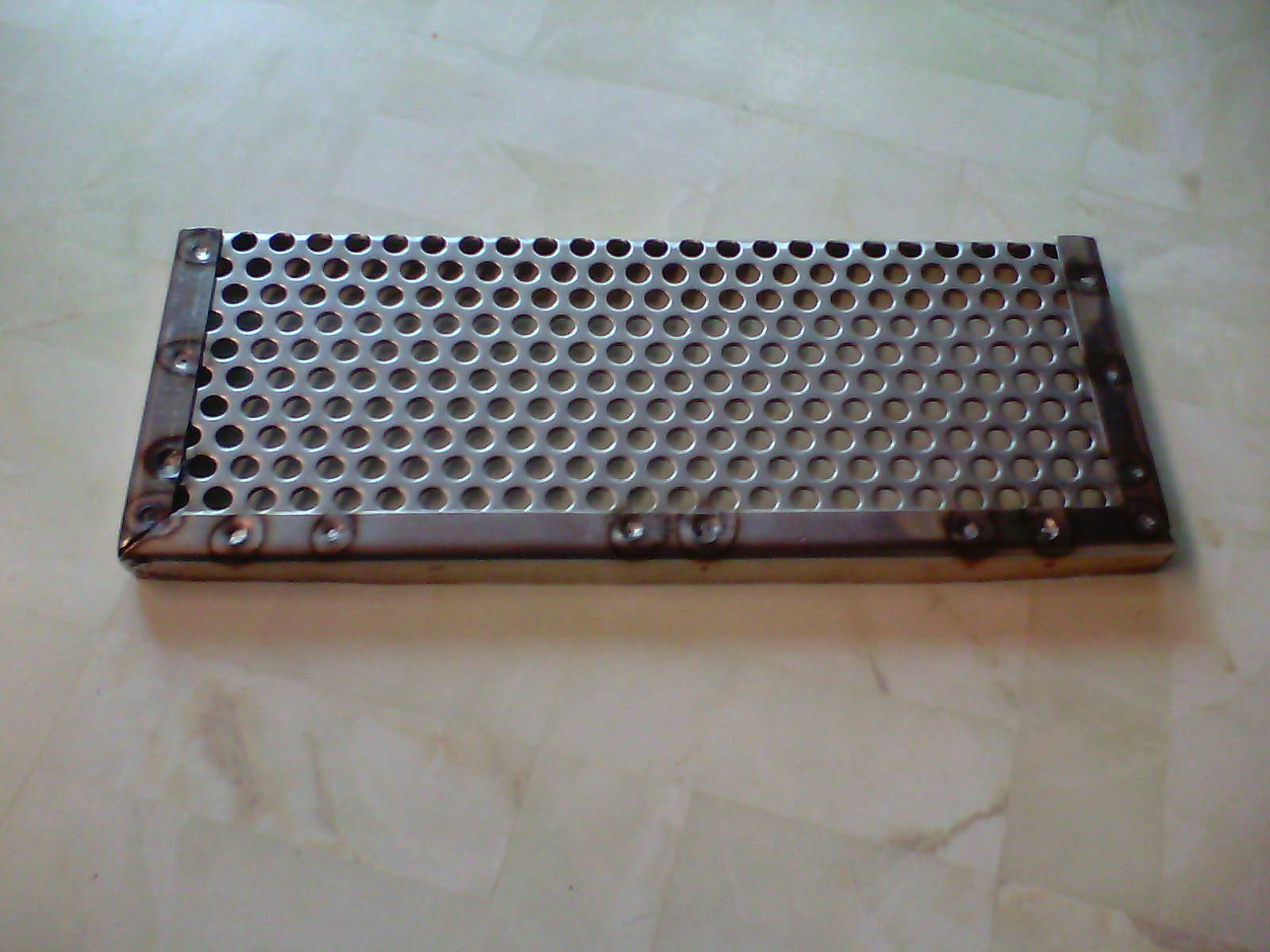

  4. well as promised progress on the squirrel I mean oil cooler guard
    main cover fabricated just got to get some brackets made
    got some cleaning to do so far after spot welding together


    • Like Like x 1
  5. Liking this..... Just what I need. What colour you finishing it in?

  6. not really thought of colour as its all stainless
    did you need some stainless mesh
    as I still have a bit left lol


  7. well looking at dakks thread I am not the only one with issues with the bike after sundays trip to the super sausage
    all ran fine there and back just to prove my mates lad wrong as he was just waiting for it to brake down in true ducati fashion hah .......
    but .......noticed Monday a spot of oil on the ground under the bike not a lot but oil non the less inspection first found
    the side stand mount and sprocket cover wet with oil
    first thoughts were clutch pushrod seal or gearbox output shaft seal gone ..............
    so got to have a look tonight when I got home from work
    cleaned of the area with carb cleaner to get rid of some of the muck and oil but push rod was dry as was the output shaft seal ...so with the lack of big hole in the engine case
    head scratching began
    so with a quick check found a few of the bolts holding the side casing on were loose not much but just enough
    luckily top right of casing below oil level so therefore just weeping when engine running
    so nipped up for now and see if that cures it lol
    might take the casing off at some point to paint it and will seal it properly

    my aren't these bikes fun lol;)

    • Like Like x 1
  8. well the bike is keeping me on my toes
    had a ride out to cadwell at the weekend
    to the practical sportsbike mag trackday
    to spectate and have a gander round the paddock
    nice day ...........
    but the bike has developed an odd squeak
    but only after 10 minutes odd of riding
    only get the noise when doing steady speed around 30 to 40 mph but disappears if accelerating or decelerating
    sounds like a dry bearing
    new front wheel bearings were fitted last year
    rear wheel bearings seemed ok when I had the wheel out to paint and sort brake
    so back wheel out and checked bearings looks like the bearing in sprocket carrier could do with changing
    so going to start there wheel bearings look ok still
    and then onto the front
    only other thing I could think of was the chain but looks ok


    well it keeps me busy lol

    • Agree Agree x 1
  9. well new bearings in the sprocket carrier outer one was definitely worn and water had got in but inner one was not too bad but replaced both anyway
    all back together now just got to get it out and see if it still squeaks lol o_O

  10. well used the bike for work today and had a little jolly taking the long way home
    so far squeak free

    whoo :)

    • Like Like x 1
  11. oh yeah ........er oil cooler guard

    been to bust riding the bike the guard is still half done
    and sat next to my computer doh :Banghead:

  12. well nice weather and not a lot to do so made myself busy
    having a look at the dim headlight situation
    checking voltage it seems I am about 1 volt down at the headlight compared to the battery

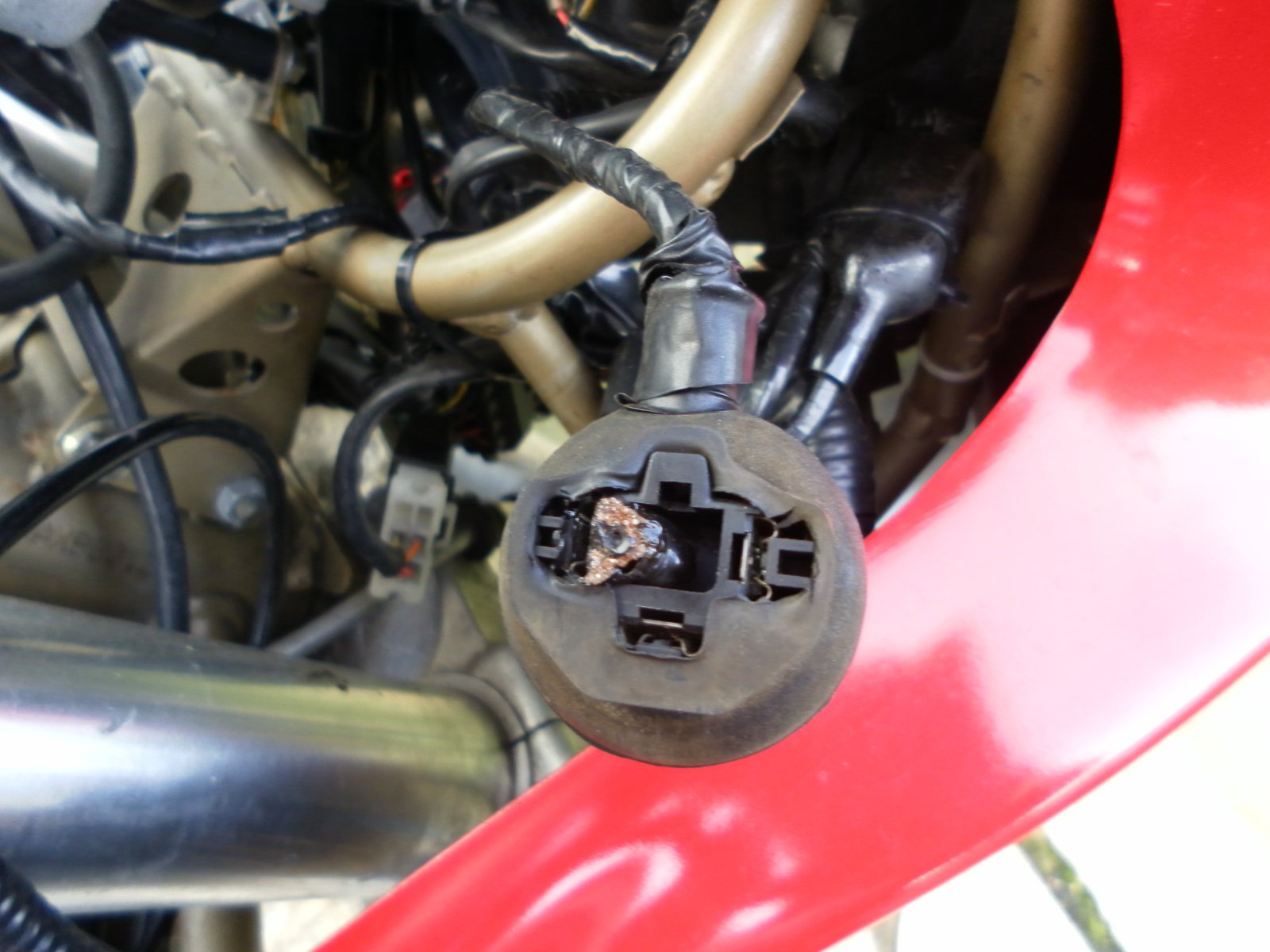

    also thought had better change the headlight socket as it seems to of got a little warm


    so while I was in there I decided to wire a relay in for direct feed to the headlight also a new headlight bulb for good measure
    all went well until checked operation of headlight
    no high beam ....??
    turns out the new bulb was dodgy good job I had a pack of two
    so everything seems to work and it looks a bit brighter
    jus need to take it in the dark and see

    only other thing does anyone how to adjust the beam up down etc want to check allignment

  13. well had a good ride out yesterday
    and the damn squeak is back
    definatly sounds like a dry bearing and maybe a little rumbly
    had the front and back wheels up in the air today
    both seem to run smooth
    couldn't take the front wheel out as my paddock stand is shite
    when lifting front end up you cannot remove the spindle
    as brackets get in the way bah
    oh well looks like I will have to take the fairing off
    and put a bar through the frame and lift it like that
    works quite well though lol

  14. You in Grimsby then? I am in Hull. We should have a ride down to Cadwell. I like that road that capproaches the circuit on its Eastern side.

  15. most of the roads round there are fun
    hmm a ride out

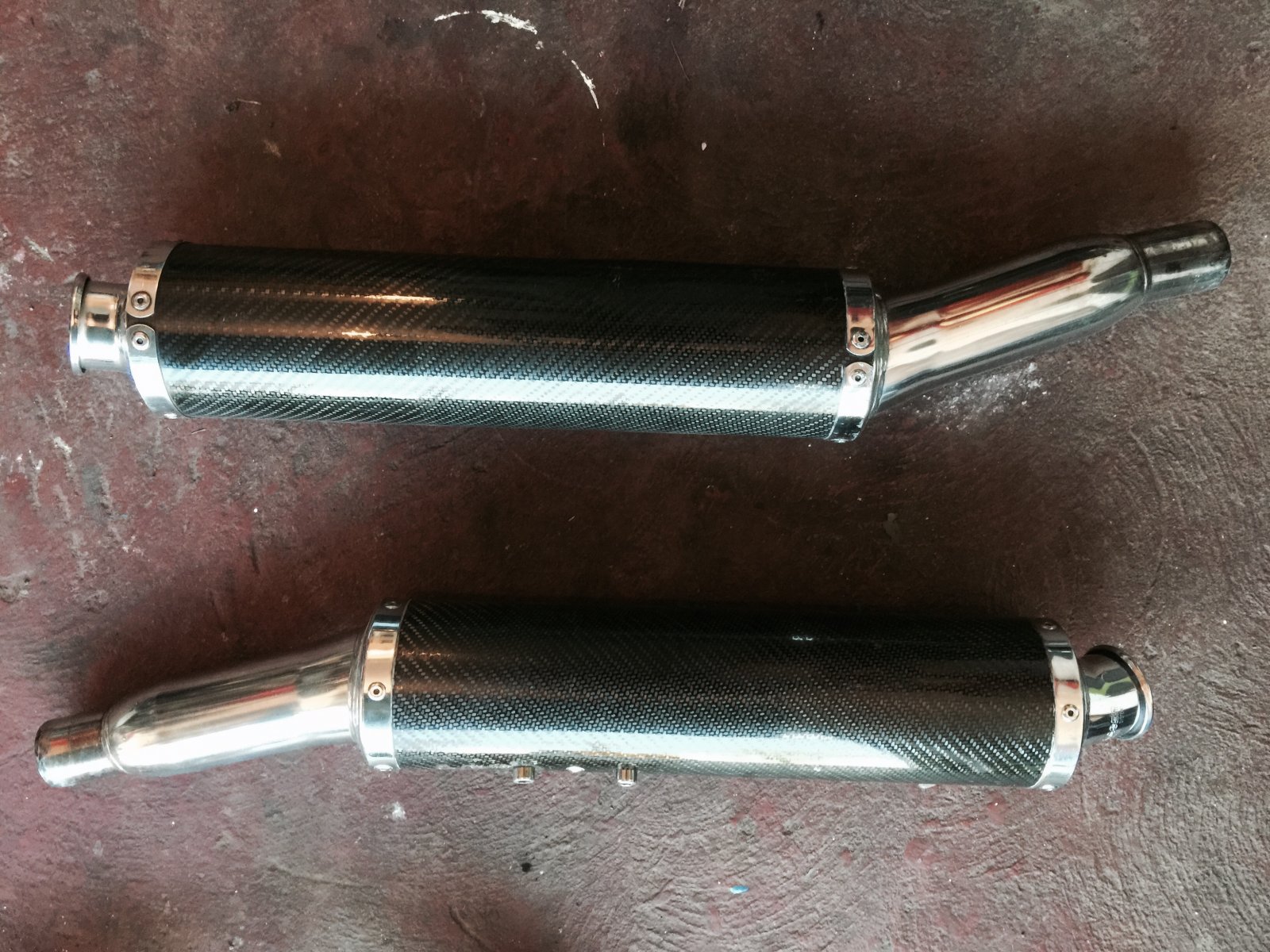

  16. image.jpg

    well a bit of thinking and a chat with fire 3500 aka ian
    I now have a set of low level silencers for the bike
    looks like the plan to reinstate the pillion on the bike
    is going ahead just need some more parts and a bit of inclination whoo ;)

  17. Great to meet you, dude! Nice to have a nosy around your SSie in person too! :upyeah:

  18. always a pleasure to meet peeps of the forum
    and chat :upyeah:

  19. If you make your stand like mine (you will find it somewhere on this forum) you don't need to take the fairing off to put the bar through the frame............

    .........I even swapped my forks over while the fairing was still on.

  20. And as mentioned, welcome to borrow my front stand with pins. No problem getting the wheel out with that in place...
