V4 Diary Of A Trackbike Build

Discussion in 'Panigale' started by DRR117, Jan 21, 2023.

  1. No cops here chap… though I remember something about gathering all evidence and I thought you were better than name calling ‍♂️
    Anyway you sold the old Akra system?..pm me

  2. once a cop always a cop pal. You claim a cops pension, you’re a cop.

    I thought you’d be able to take a bit back seen as you are more than happy to dish it out, but feel free to evidence it. Might help the next time you are banished from the forum :joy:

    • Funny Funny x 3
    • Like Like x 1
  3. Popcorn.jpg

    • Funny Funny x 3
  4. A build thread is always appreciated! adds a welcome distraction from the political sh*te that dominates this forum most of the time ;-) And my question on the Hel brakes was really only out of interest, I know Stylema are super highly rated, but I wondered if the Hel are billet for example and lots lighter, because if you saved half a kilo from the calipers it's still very welcome on the end of the fork legs.

    • Like Like x 1
    • Agree Agree x 1
  5. i fully understand there will be questions about certain decisions I make on the build, that’s natural. Suppose I just wanted to try the Hel calipers out really, I can’t say they work any better or worse than the brembo’s… I’m no professional rider pushing the bike anywhere near to its limits. But I wanted to bypass the ABS as it was experiencing it pumping the lever in certain, yet rare circumstances and running me off line. (and I couldn’t find any cheap GP4RX’s for sale :joy:)

    I’m printing some brake cooling ducts as well… not that the caliper ever gets anywhere near hot enough…. But I can, so why not :joy:

    #85 DRR117, Feb 3, 2023
    Last edited: Feb 3, 2023
    • Like Like x 1
  6. Pitbull Trailer Restraint

    With the new trailer of got off tiny Ron Jolley it came with a pitbull trailer restraint system for his non Ducati motorcycle :joy:

    the pins to adapt the system to work with the V4 are around $200 with import taxes and shipping so as I need to get the bike to Nelly tomorrow to get the map off the ECU I’ve decided to make my own..

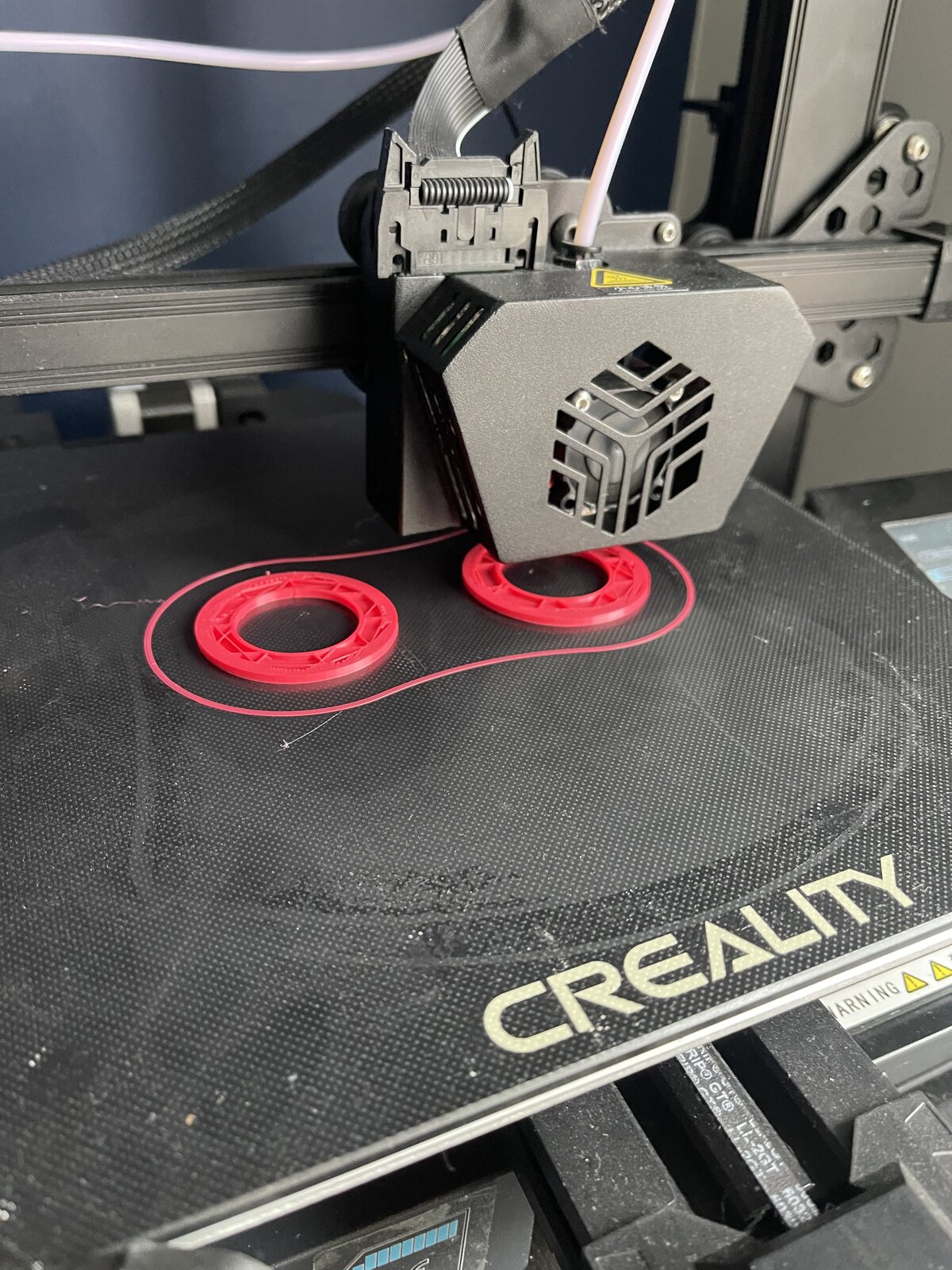

    I ordered 2x 200mm 28mm diameter steel bars (£12.53 per bar on ebay - https://ebay.us/Xd4Ke3) which fit the pitbull pin holes perfect. I’ve measured up and am printing some test sleeves to pop on the steel bar and slid into each side of the hub.

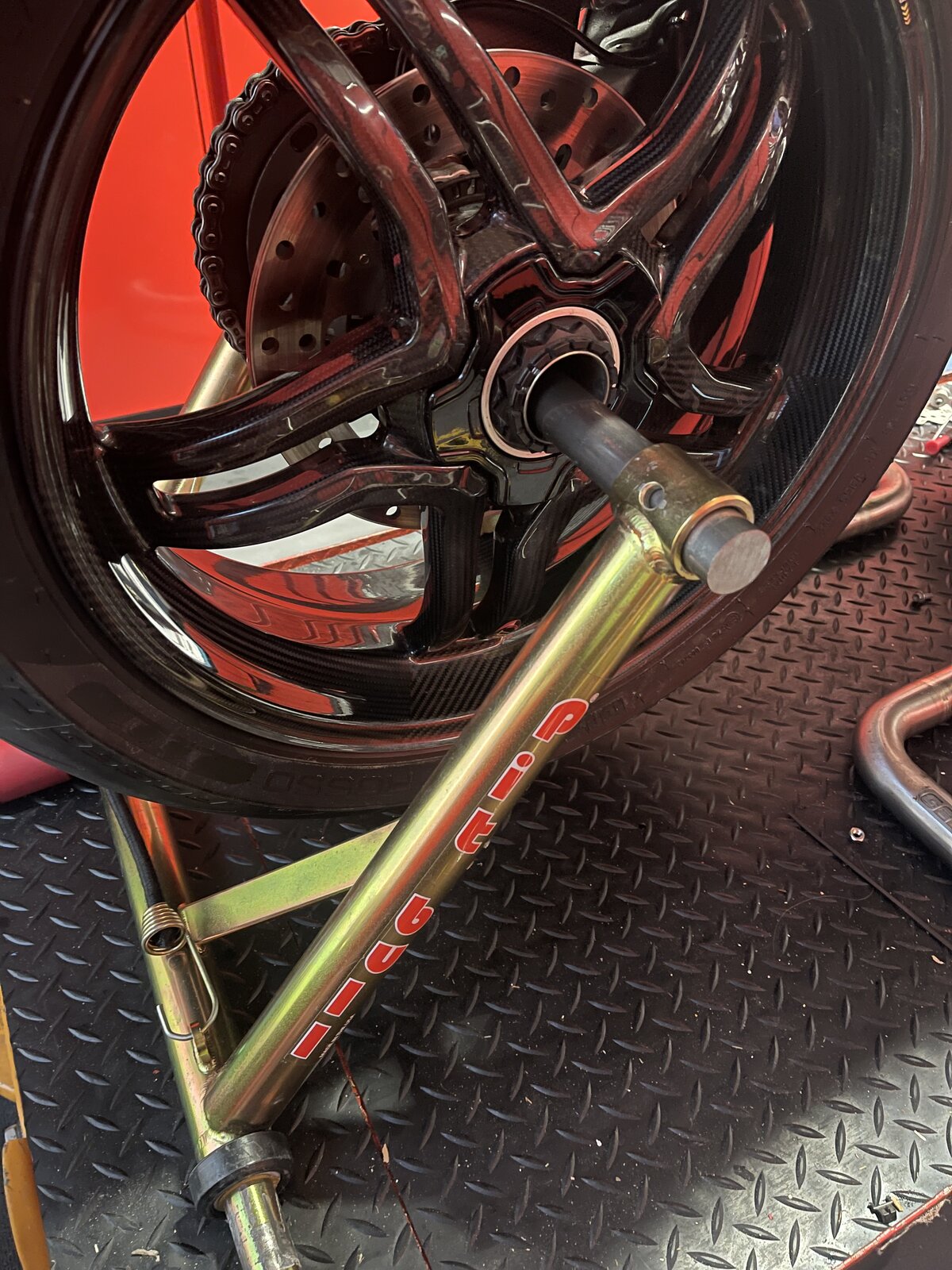

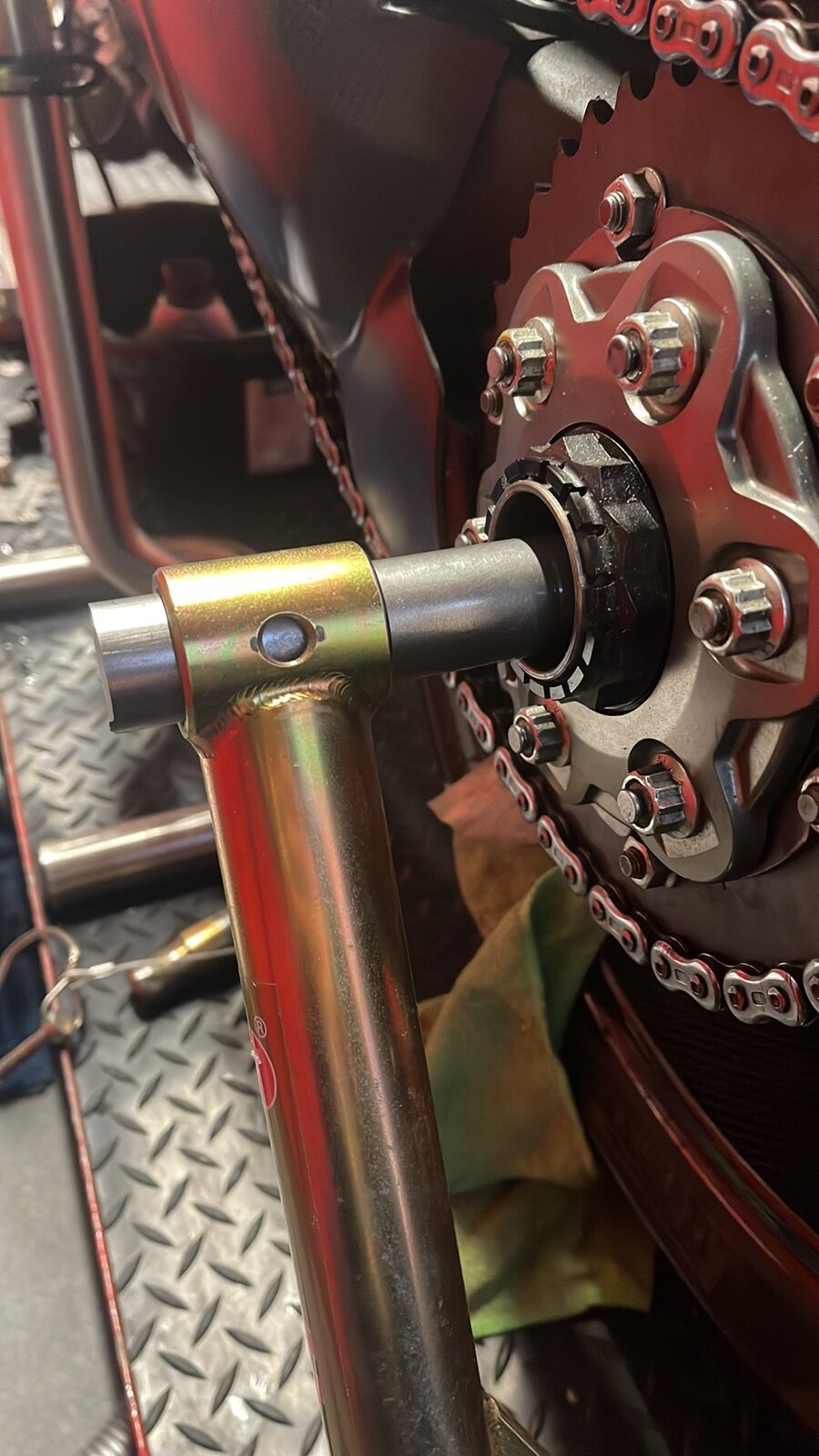

    DC6C1BE3-0D9E-4898-BD19-32F1B79775D4.jpeg ECE753B0-3FB0-444C-9295-997AA4901BFF.jpeg

    the sleeve dimensions

    (Left) Smaller sleeve - 35mm tall, 39.9mm OD with a 28.1mm ID

    (Right) Bigger sleeve - 70mm tall, 41.9mm OD with a 28.1mm ID

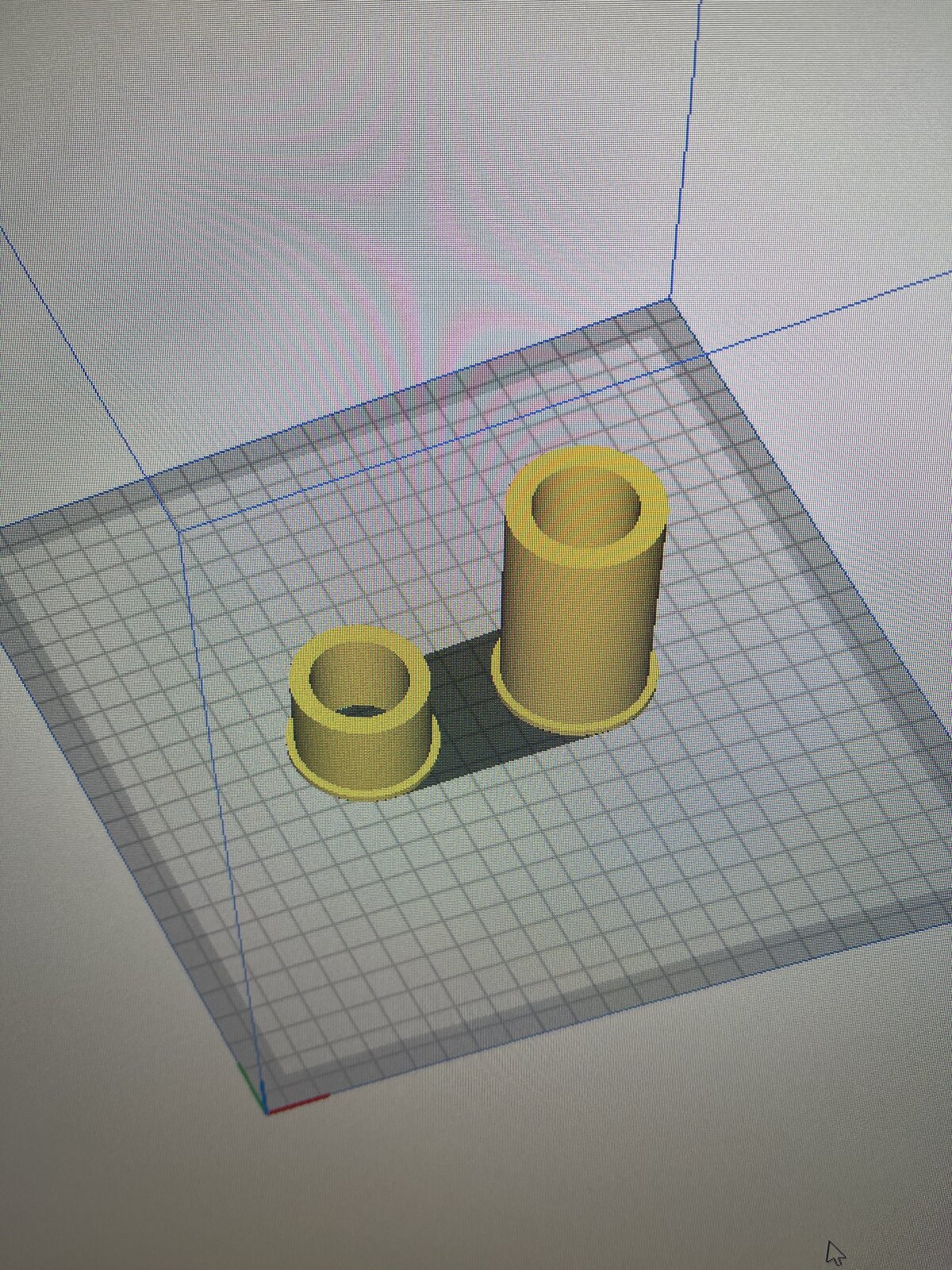

    So knocked up a quick design


    And I’ll be back in 4 hours when they are done printing to see how they fit :upyeah:

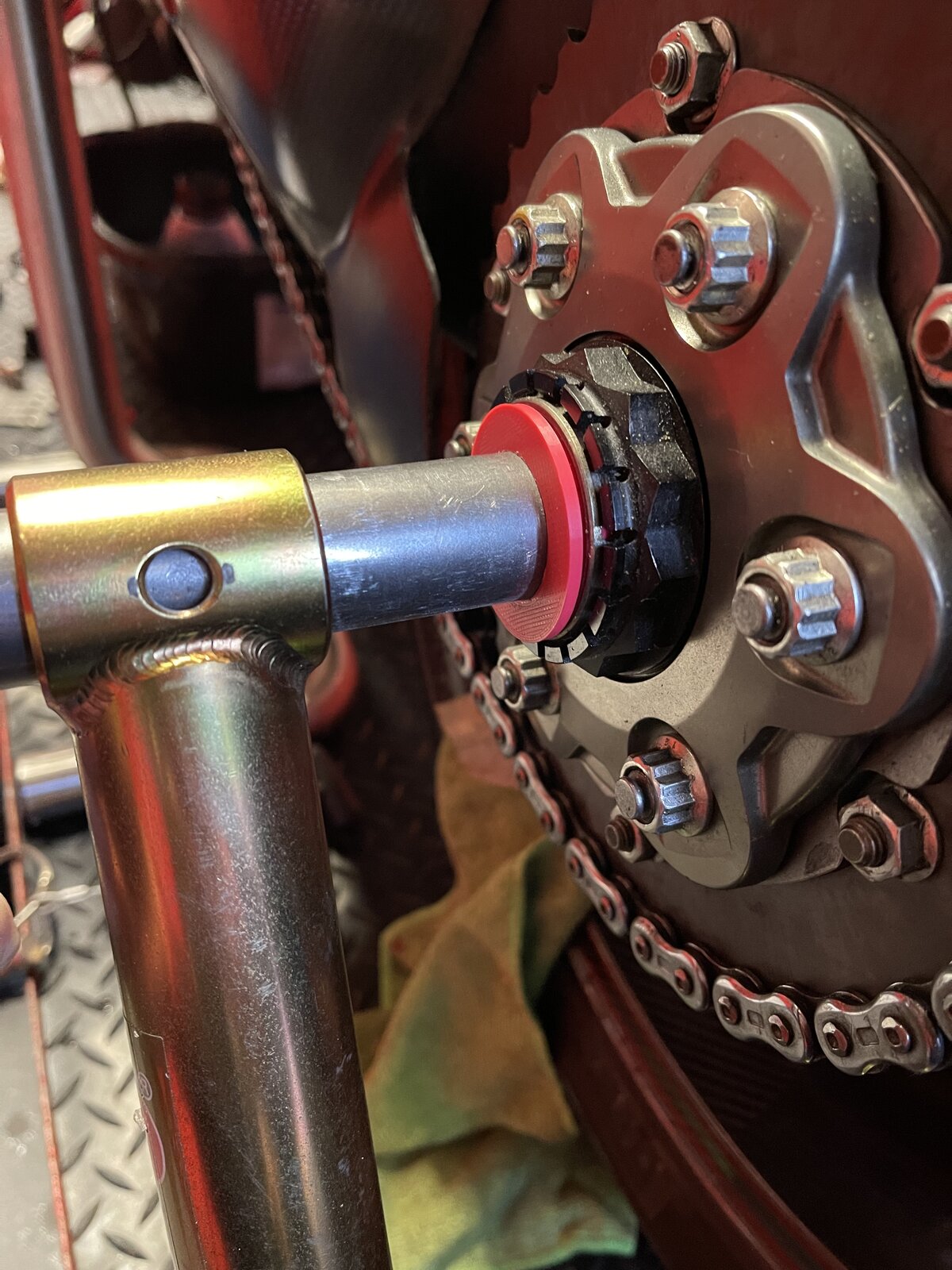

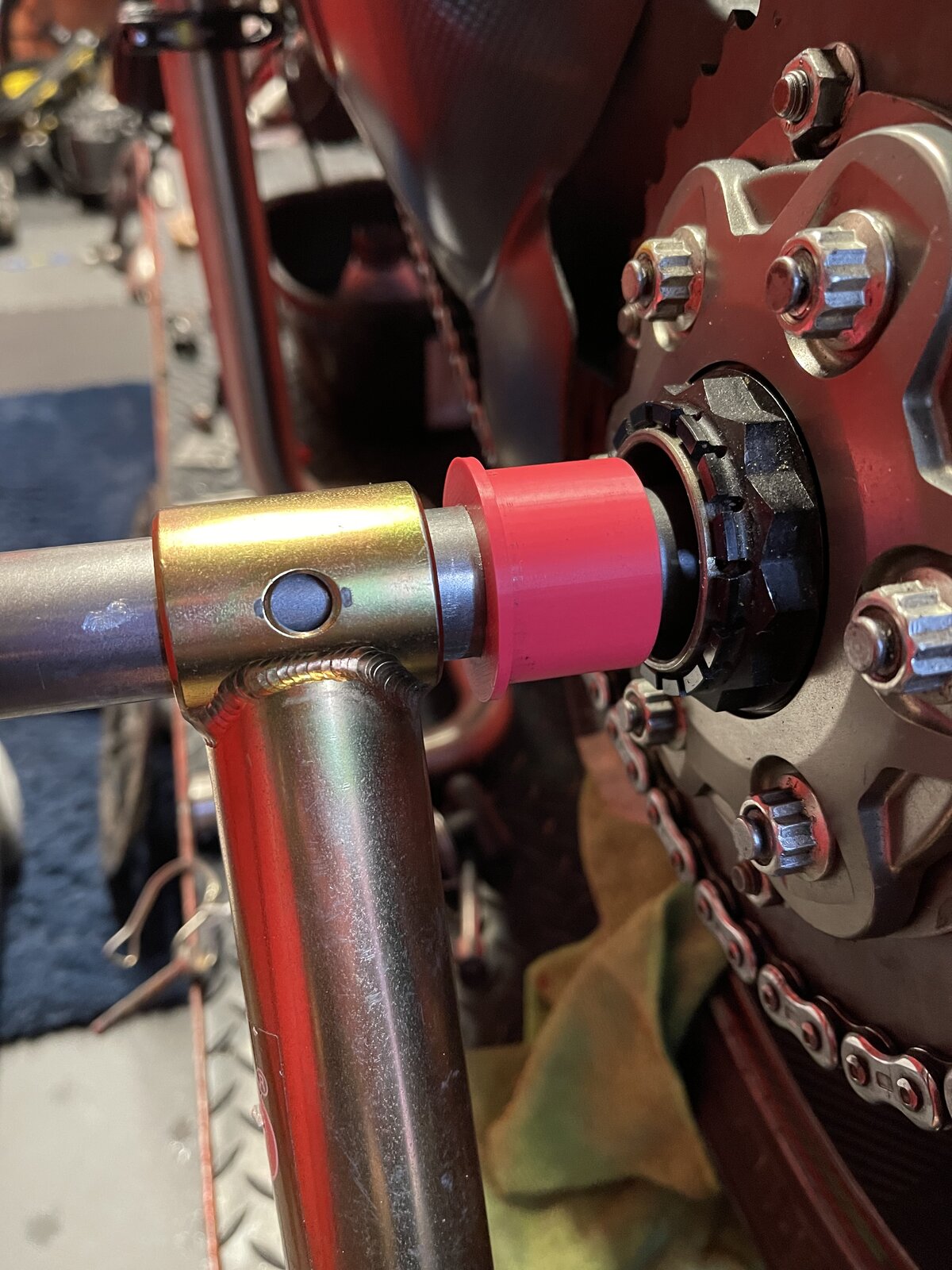

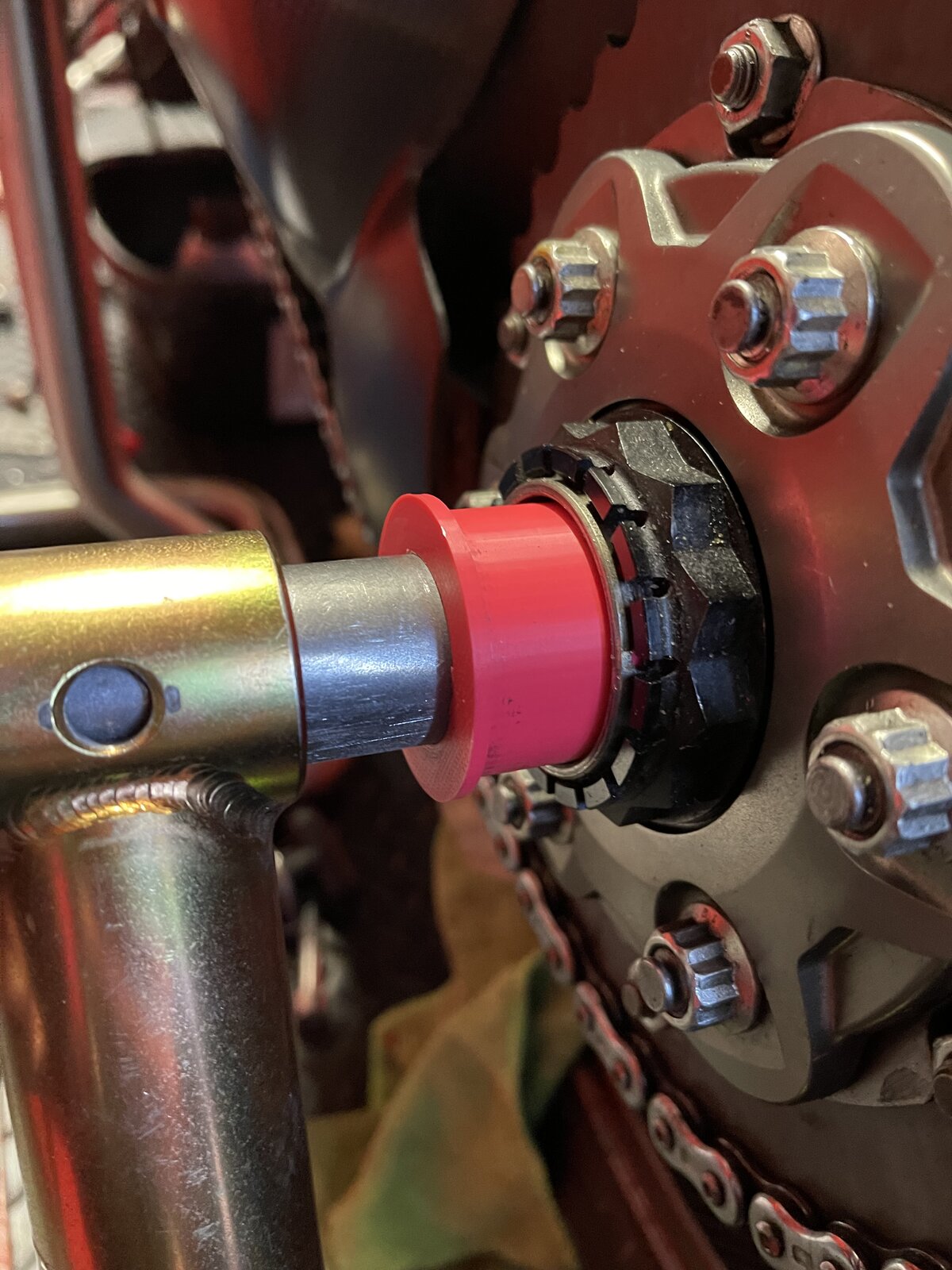

    Bit of an update, 35mm sleeve fits really well on the bar but maybe needs a slight increase in the external diameter…

    97FCA637-72B7-417D-BB8F-258FCD6E9A6A.jpeg 57DED6B0-311C-45D0-B458-7626FA31198E.jpeg 3118134B-EA44-4F38-93A3-740E7947DB0D.jpeg

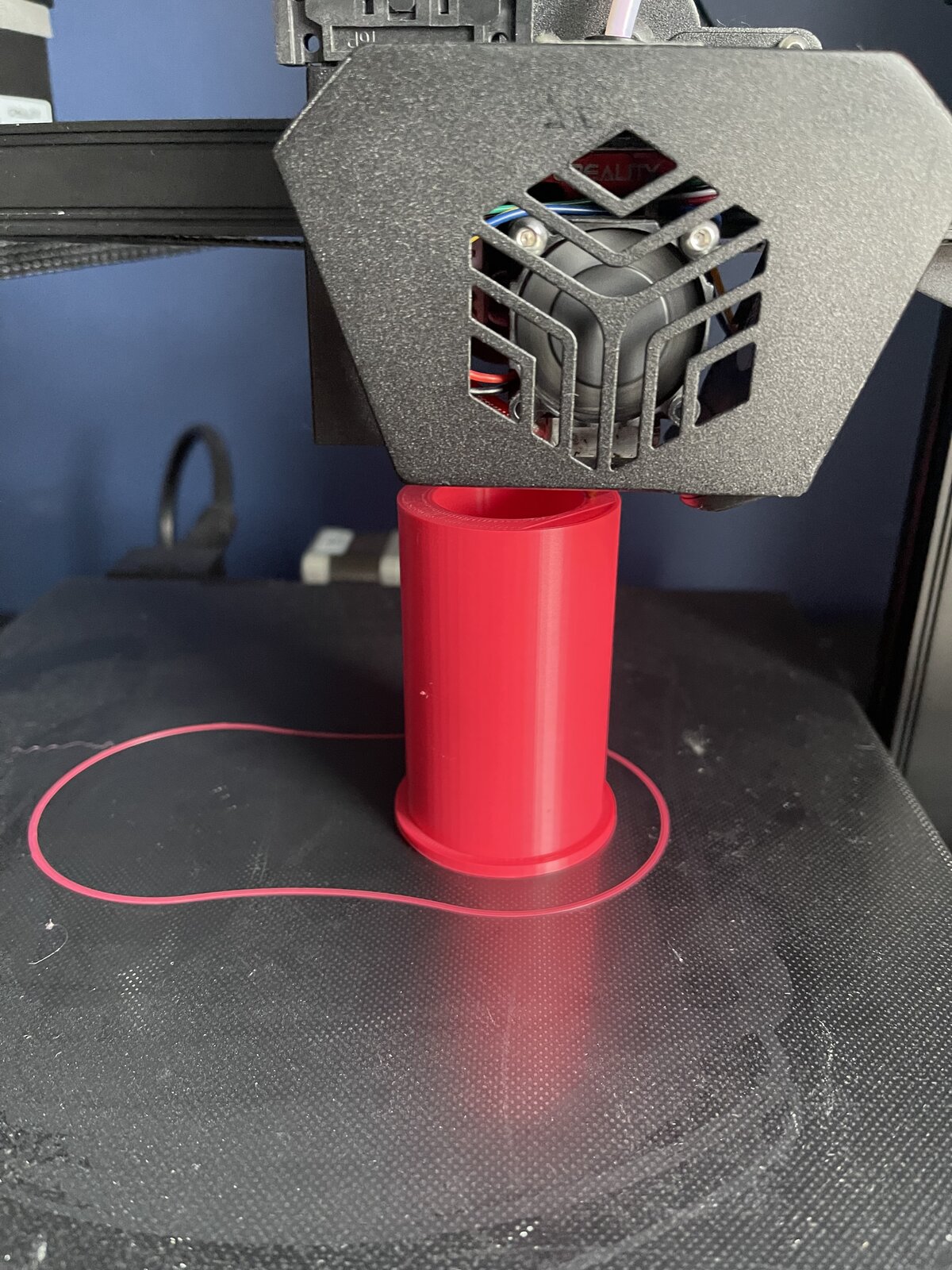

    Still waiting for the 70mm :rolleyes:


    #86 DRR117, Feb 3, 2023
    Last edited: Feb 3, 2023
    • Like Like x 8
  7. I need to find something, anything, I need for you to print up and then give me a reason to buy a 3d printer :joy:

    #87 bradders, Feb 3, 2023
    Last edited: Feb 3, 2023
    • Like Like x 1
  8. Butt plug?

    • Funny Funny x 3
  9. Got one...:astonished:

    • Funny Funny x 1
  10. Swindon lad! Keeping it real...

    • Funny Funny x 1
  11. werd...:cool:

  12. Can I have one of yours, the bigger ones, for him to copy?

  13. hulk fist.jpg
    I got a lovely one which is a 1:1 scale model of the Hulk clenched fist in Avengers Assemble?

    #93 Cream_Revenge, Feb 3, 2023
    Last edited: Feb 3, 2023
  14. Just give it a good clean first :upyeah:

    • Funny Funny x 1
  15. Got to keep in mind not every decision Ducati makes is done to make the best product they can make. There's a boatload of accountants penny-pinching to maximize their profits so it's perfectly fine making changes to improve on the product. ;)

    • Like Like x 2
    • Agree Agree x 1

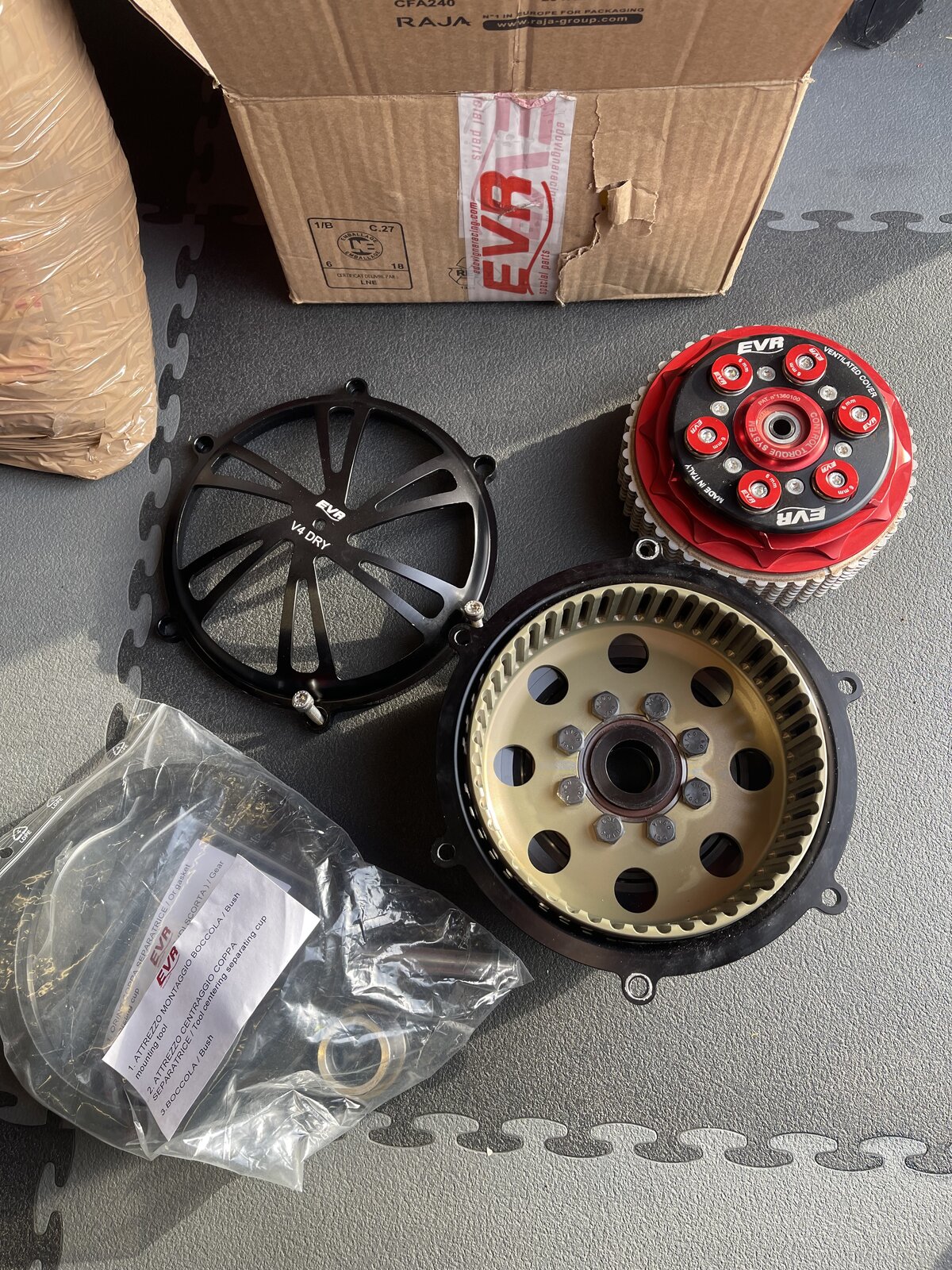

  16. Clutch Dry Clutch Conversion Kit

    Been a bit busy over the past week or so but some Italian goodness arrived today from sunny Germany…


    I’ve wanted to go a dry clutch conversion since my first V4 build but never quite got round to it. Can’t wait to get it in… is it spring yet?

    Guess that’s my weekend sorted. Might make a video of me fitting it, might not tho :joy:

    will definitely update on here when it’s in tho.

    • Like Like x 4
  17. You have to pay Micky mouse tax etc on that? I keep looking at some stuff from Italy but if I add all the tax and fees it’s not worth it…

  18. Haven't had anything from ParcelForce or DHL yet about import charges. Ill let you know if something comes through tho.

    • Thanks Thanks x 1
  19. There’s a d170 brand new, Italy seller, £2100….. :thinkingface:

    • Like Like x 2
  20. Electronics

    As my build is around a 2018 base model V4 I can only get the EVO2 software update as opposed to the EVO3 available to 2020 omwards models.

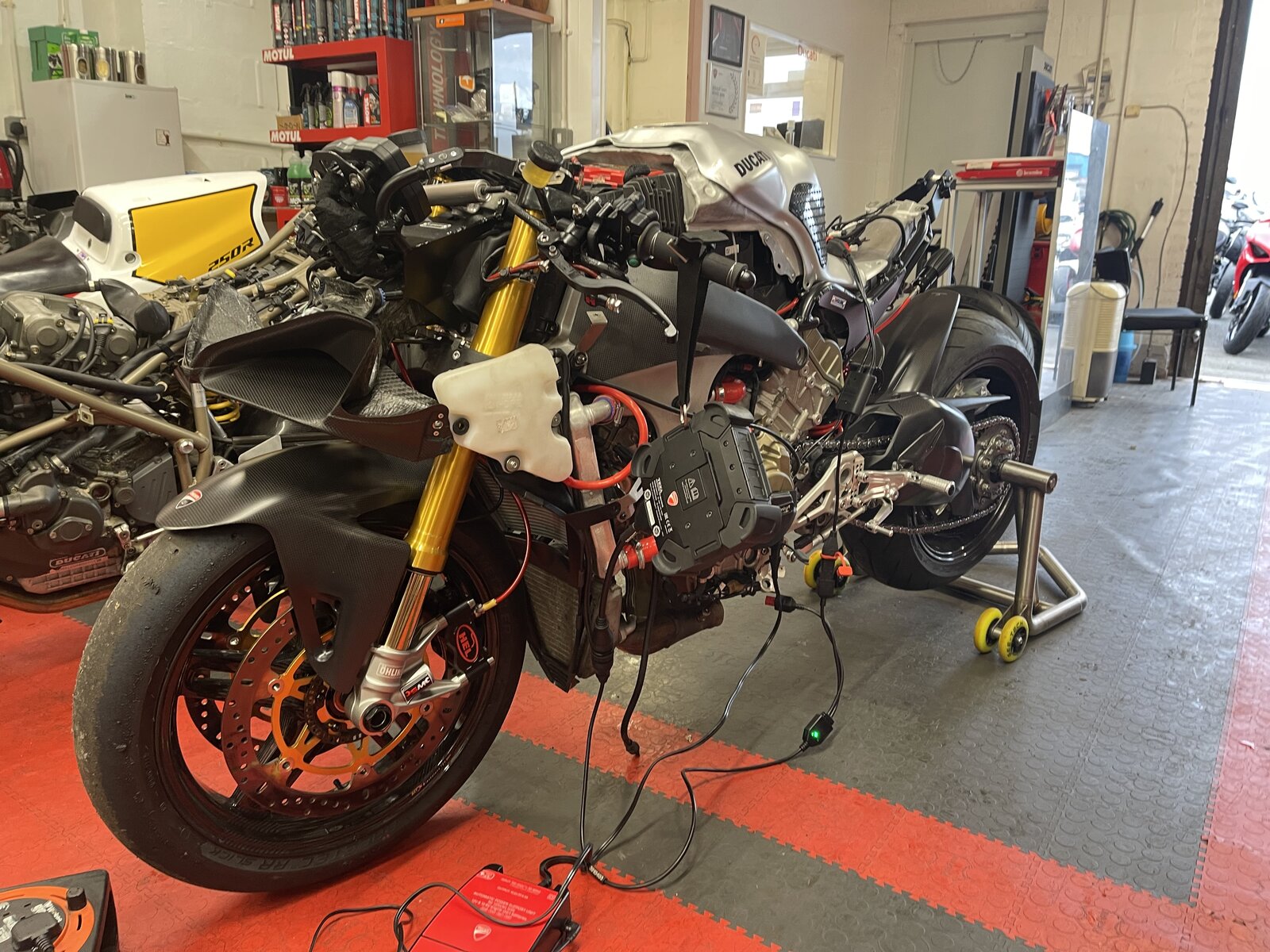

    map down to @nelly at Cornerspeed to distract him from the mountain of service work he has so he can load some ducati electronic wizardry onto the bike.


    The EVO2 software upgrade for those who haven’t heard or used it is a ducati performance upgrade available from ducati. It’s not cheap but enhances the electronics and having used it before it is an incredible update.

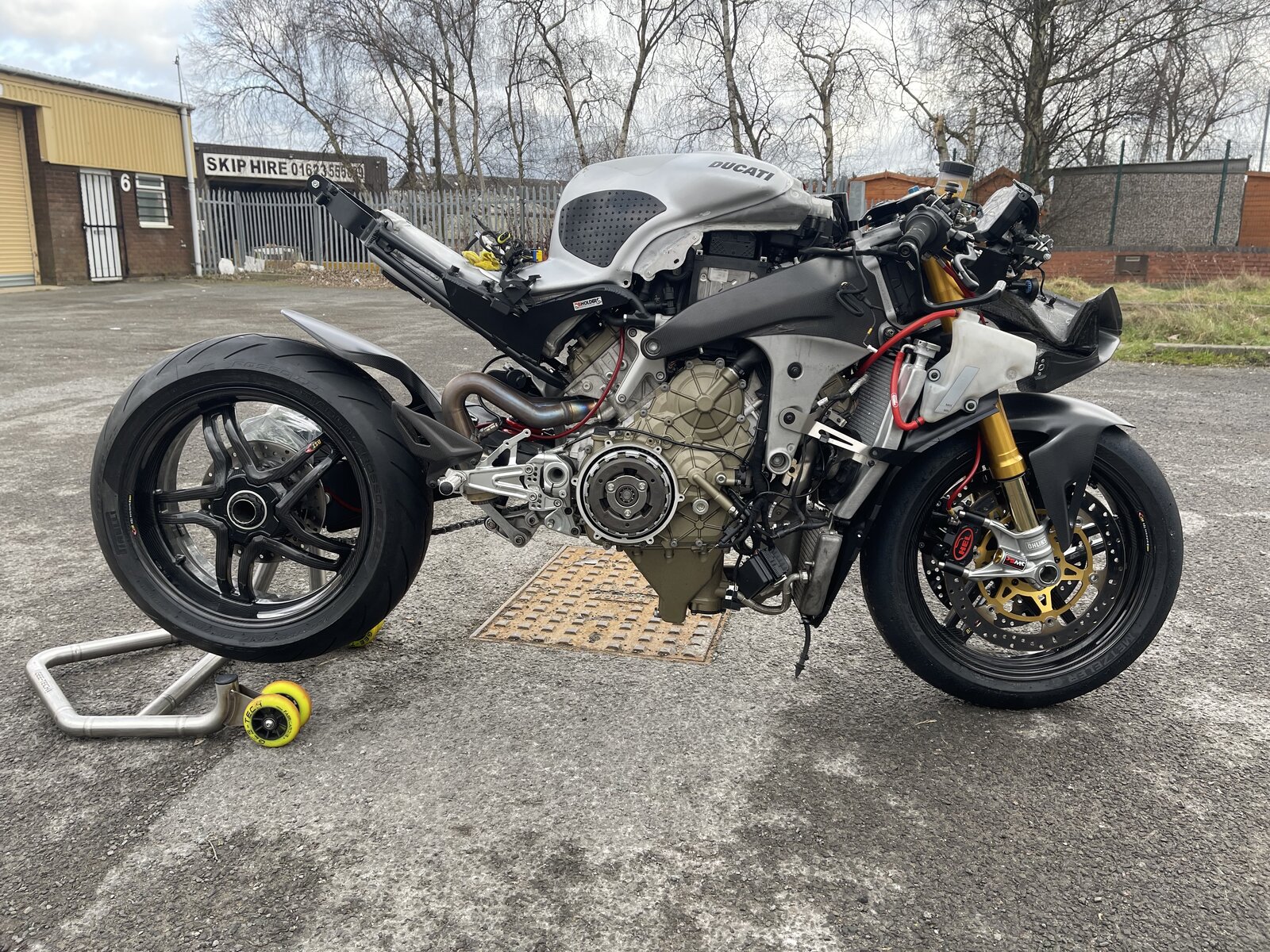

    Upload completed and bike (well, 3/4 of a bit) rolled back into the van

    next a clutch swap :)
