Front Sprocket Plate Alignment Question

Discussion in 'Supersport (1974-2007)' started by Humbug, Mar 21, 2024.

  1. Fixed your reply. NAP
    Fair enough, my multi tool is fitted with a grinding disc as it’s my go to at work.
    It’s a lump hammer and a ball hammer for me, that’s if my local indi isn’t available for the correct tool that he lends me.

    #21 DucatiScud, Mar 22, 2024
    Last edited: Mar 22, 2024
    • Like Like x 1
  2. After bending a couple of the cheaper riveting tools on a bike mechanic course*, it was suggesting that I purchase one of these:

    https://www.dirtbikexpress.co.uk/products/motion-pro-chain-breaker-rivet-tool

    As this is for "For riveting hollow nose master links", and the Tsubaki** chain is 'solid nosed' or 'quad stake', you also need:

    https://www.motionpro.com/product/08-0142

    Then I would need a paddock stand, which, f it, I'm going to buy now:

    https://abbastands.co.uk/product-detail.asp?item=superbike-stand

    You can see why I paid someone else to do it at the time.

    The good news:

    -The front sprocket moves on the shaft
    -It has the plate fitted to it at the back, so looks correct for my bike
    -I've ordered the bits I need to fix it, and give it a light service as well

    * I am heavy handed, but in my defence, the chains were a bit rusty. And I have neuropathy in my hands
    **why Tsubaki? I've one at 45,000km on the NT650 Honda Bros***, w/scottoiler, and it's not worn out yet
    *** A flippin' reliable bike****, compared to the Ducati
    ****but not as good looking

  3. Humbug, I may be able to sell you an ABBA stand as I have one but I got the skylift.
    Let me know if interested.

    I have the motion pro chain tool. Top quality, Ive had cheaper and they are junk

    • Like Like x 1

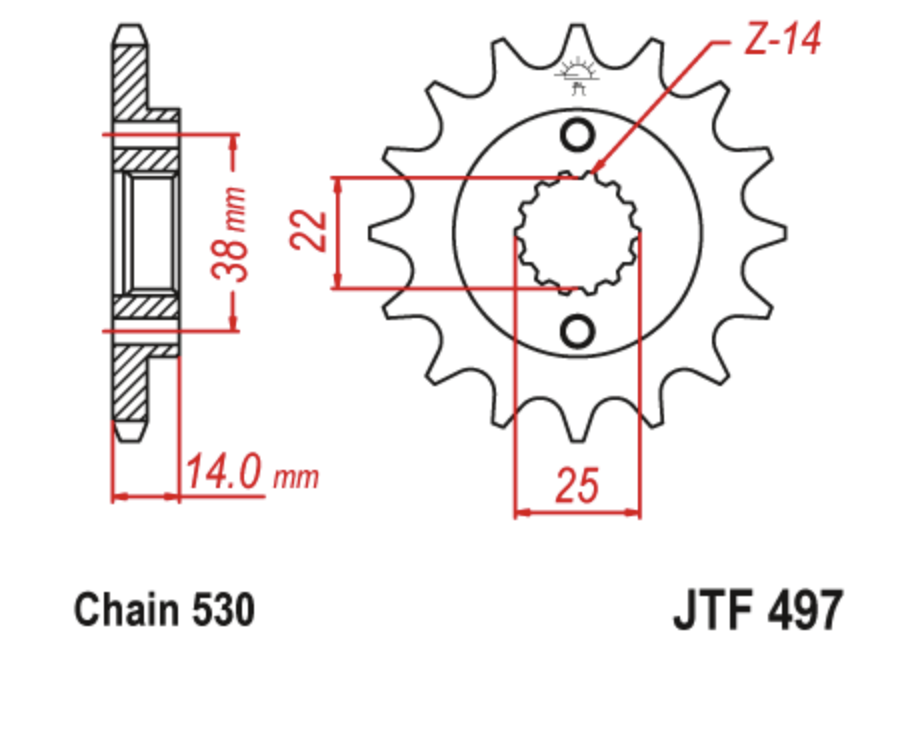

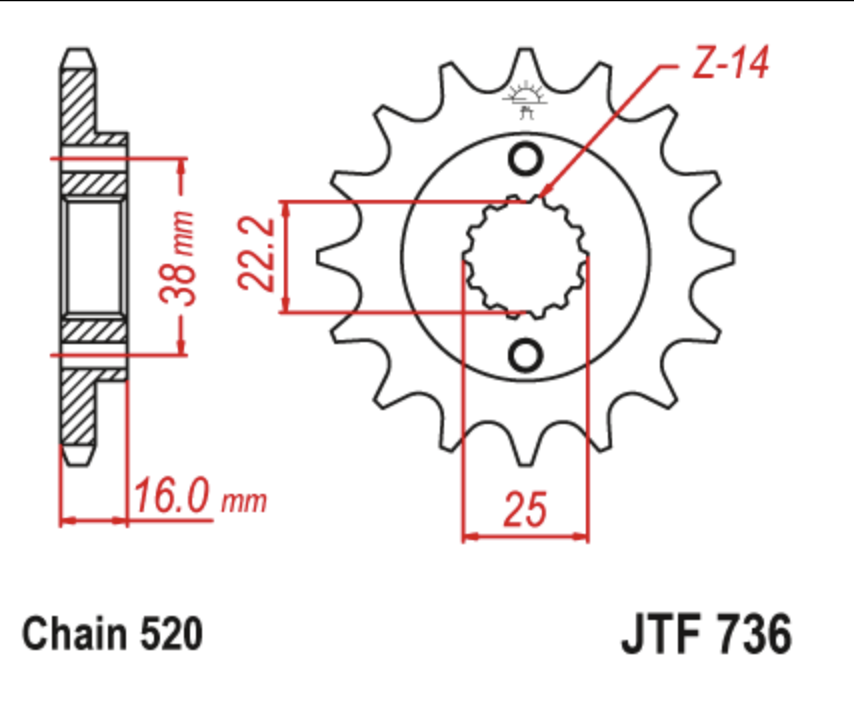

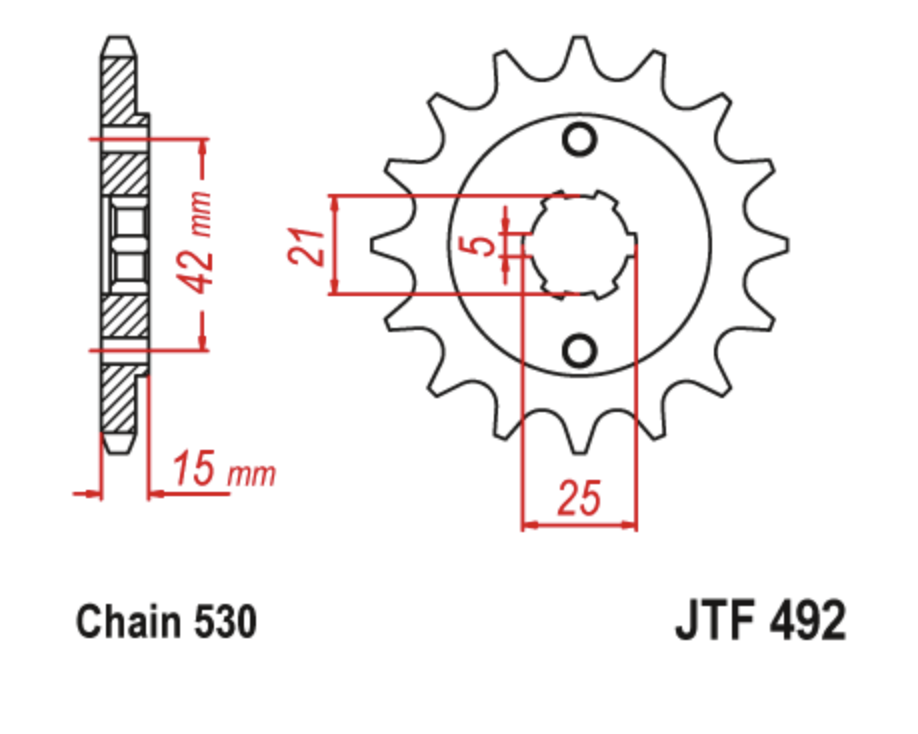

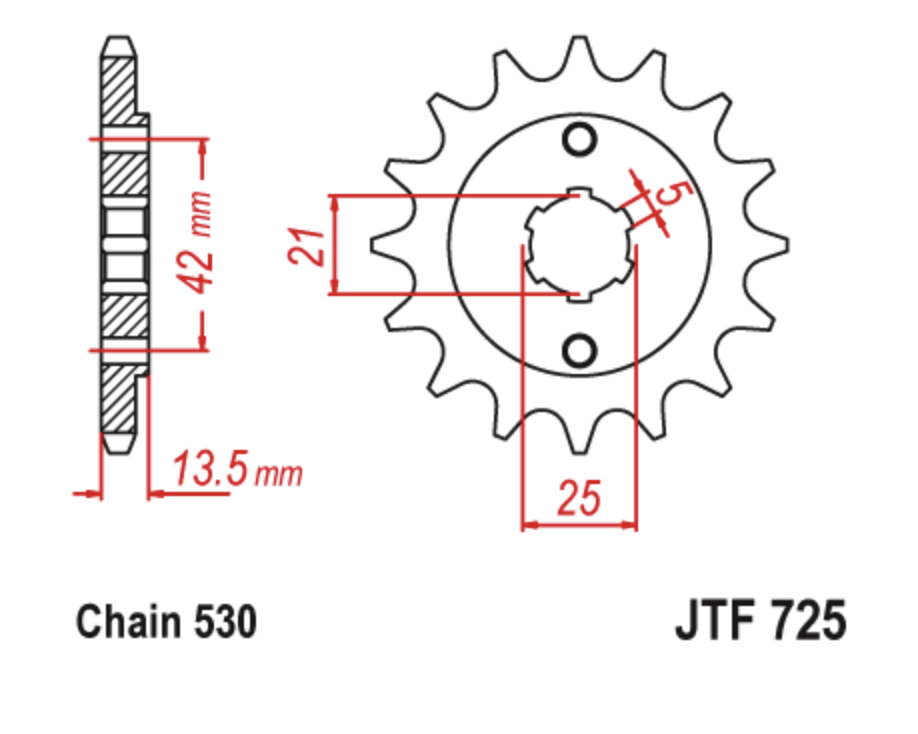

  4. Beware with replacement gearbox sprockets. They come with different offsets depending on what model they are for.

    Screenshot 2024-03-22 at 17.29.06.png

    Screenshot 2024-03-22 at 17.30.42.png

    Screenshot 2024-03-22 at 17.30.10.png

    Screenshot 2024-03-22 at 17.31.14.png

    • Useful Useful x 3
