Hi all - unorthodox purpose

Discussion in 'Newbies Hangout' started by Chuey, Aug 29, 2012.

    • Like Like x 1
  1. Multistrada(1000/1100 aircooled) legs are 790mm axle ctr to top cap. Longest showa's made. SSie are 60mm shorter. Monster/SScarb/ST/ are 90mm shorter.

    All the later models(98on) use 25mm axle.

    The yokes on all SS, and Monsters with bar risers have 26mm stem, all others(with split top nut) have 35mm stem.

    SS and monster yokes have different offset, SS is longer by about 3mm.

    #22 900streetfighter, Aug 30, 2012
    Last edited: Aug 30, 2012
  2. Thanks for the continued help. I feel I'm getting somewhere, now.

    This morning I went out and measured what I have in the way of a fork/hub setup. Let me know if there's an important measurement needed.

    Axle diameter: 30mm

    Fork leg dia. at top yoke: 50mm


    Fork leg dia. at lower yoke 54mm

    Center to center of fork legs: 207mm

    From inside plane of axle hole to inside plane of caliper mount 11.6mm
    This is the offset, presumably not the same for cast wheels as spoked.

    Overall length needed from center of axle to top of leg 30-32" or 762-813mm

    Thanks again.

    Oh, by the way, danger is my middle name. I always ride on the right side of the road!

    Chuey

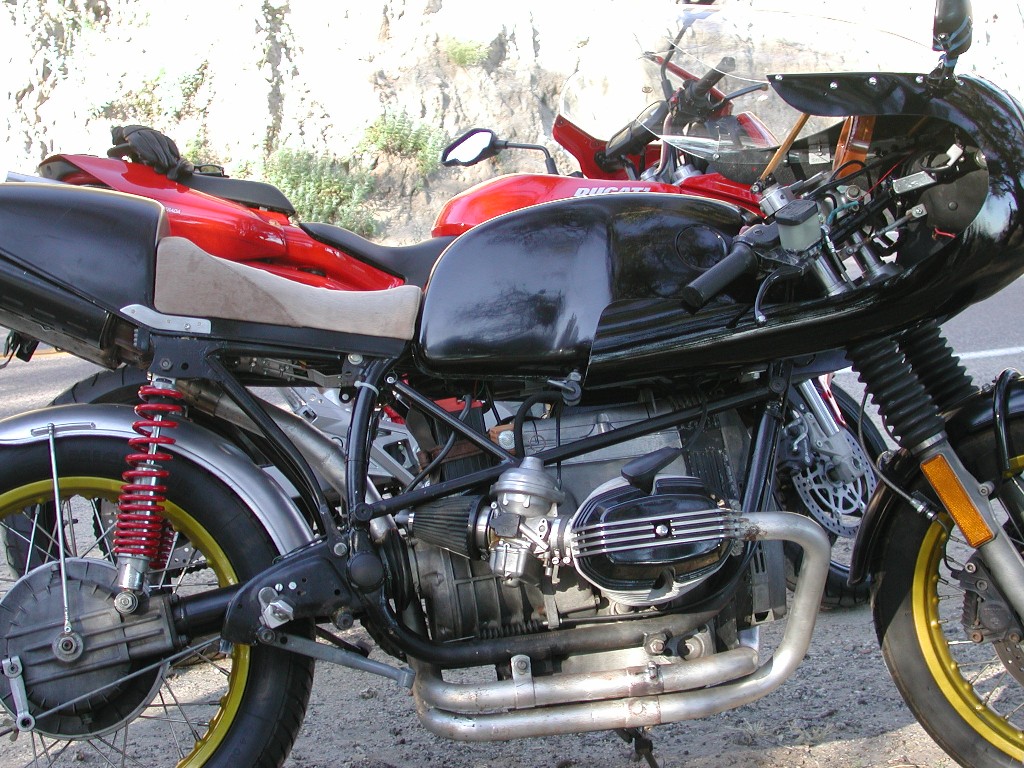

  3. Dude, when you have got your answers, please keep popping back from time to time and say hi :upyeah: Love the pics by the way :biggrin:
