Home-made Ducati Tools .... Post Your Pics

Discussion in 'Lounge' started by oldtech, Feb 29, 2020.

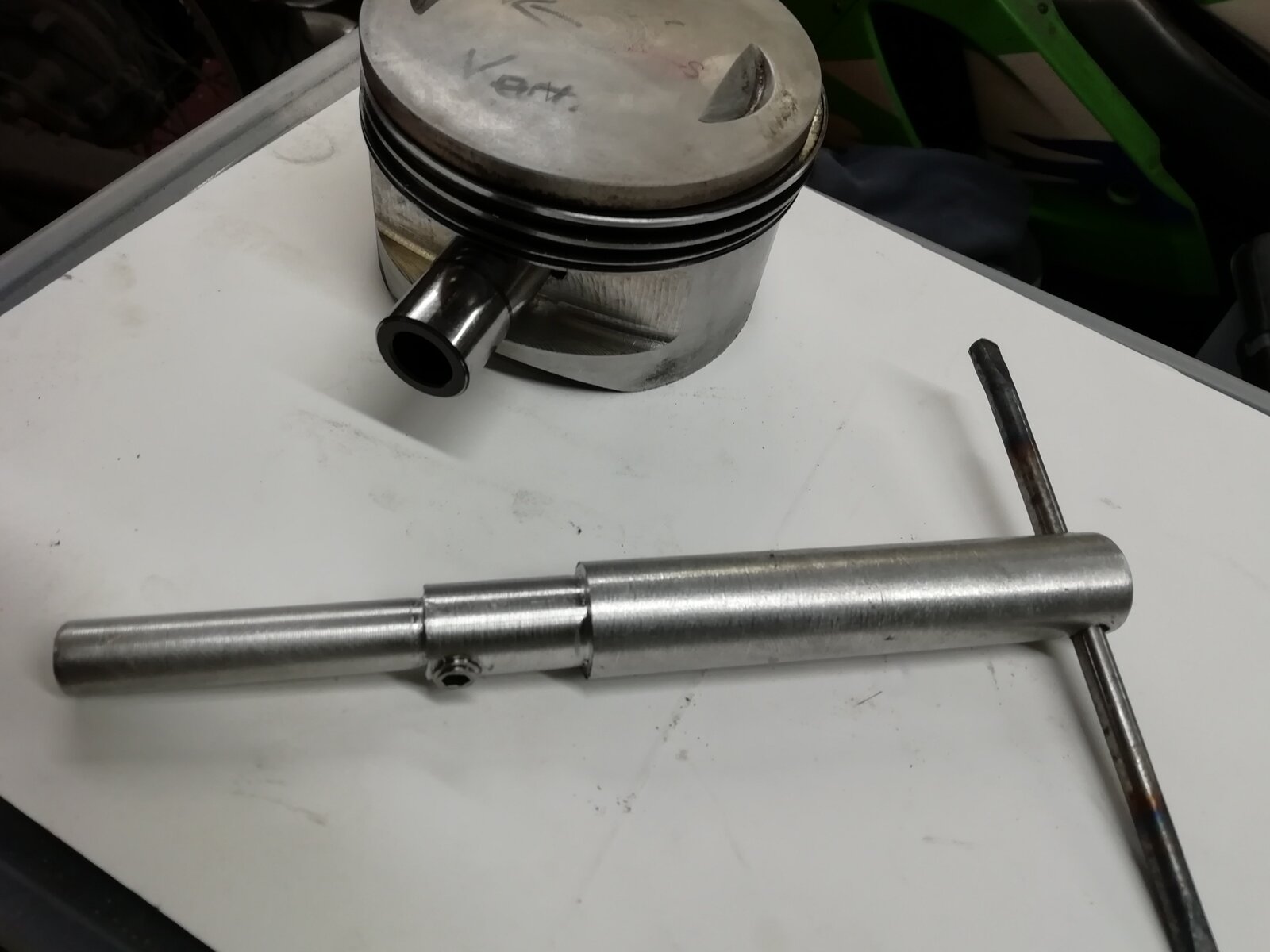

  1. M900 piston circlip tool - after spending about 2 hours failing to get the circlips in I knocked this up from 20 mm aluminium bar - the circlip end engages on the grub screw and it took less than 5 minutes to install all circlips. IMG_20200109_140635_resized_20200109_020859403.jpg

    • Like Like x 2
    • Useful Useful x 1
  2. IMG_20200415_223156.jpg

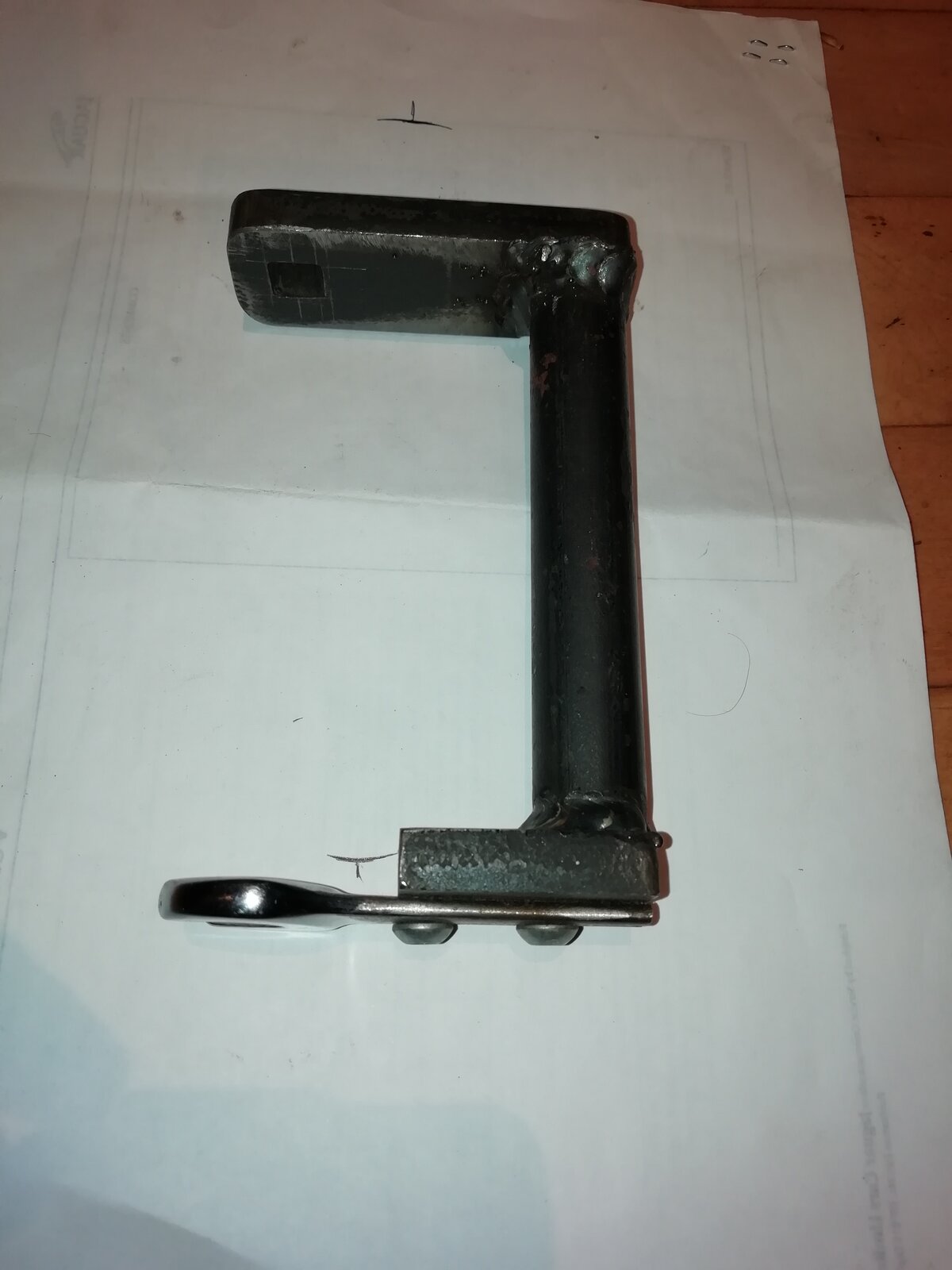

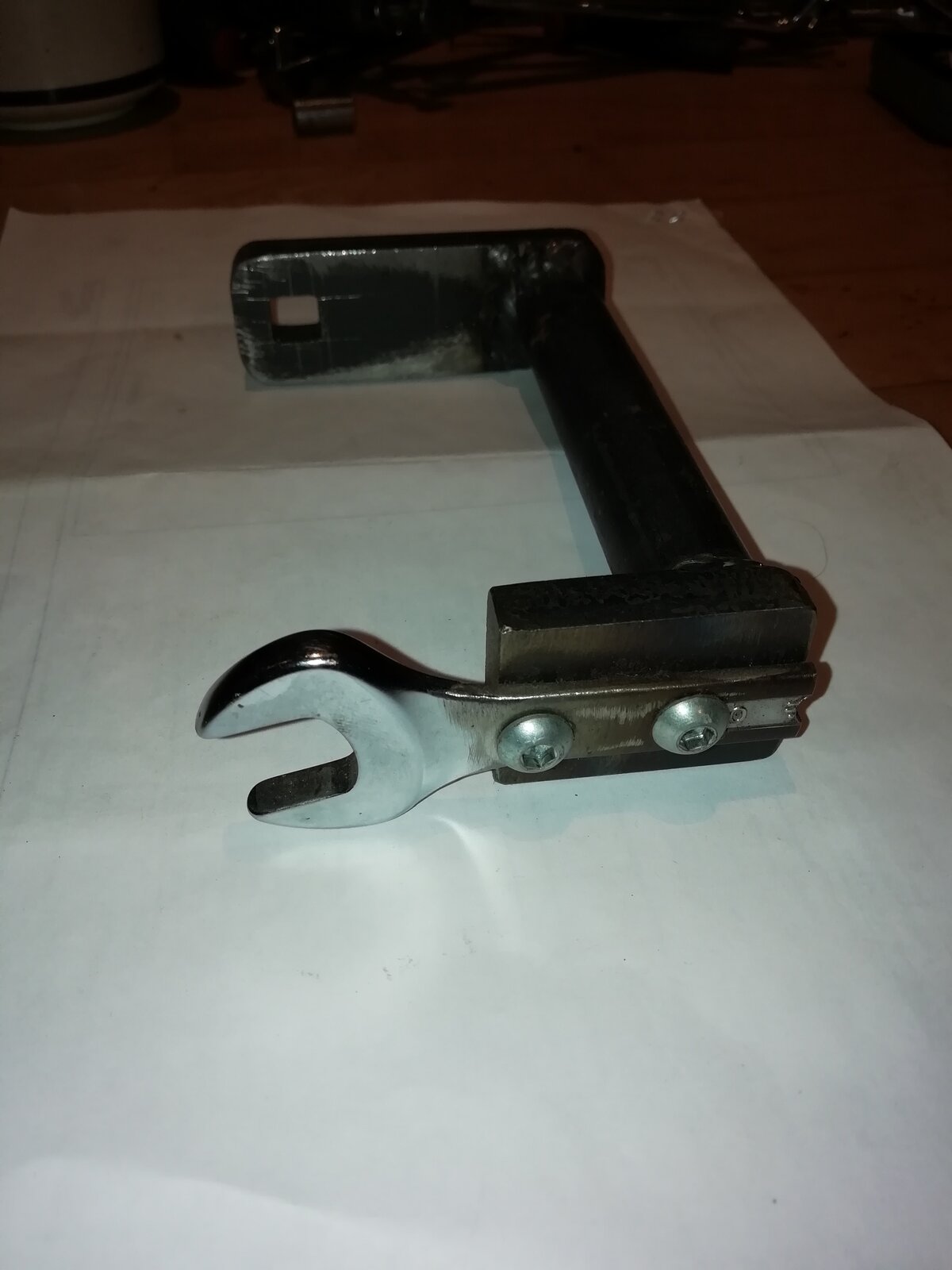

    Made this for the head bolts on my 748 a few years ago.

    #42 Hughdg, Apr 15, 2020
    Last edited: Apr 16, 2020
    • Like Like x 3

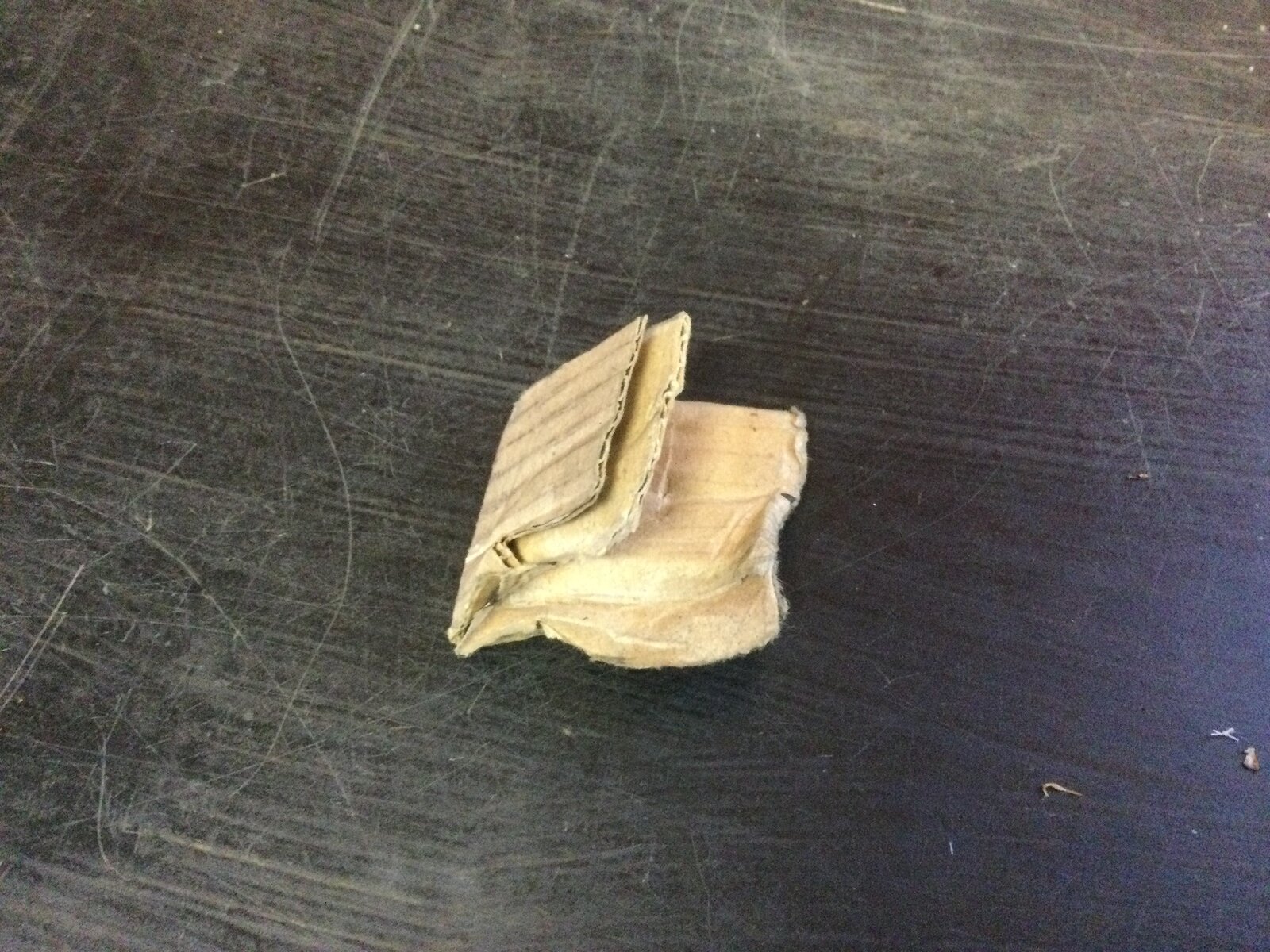

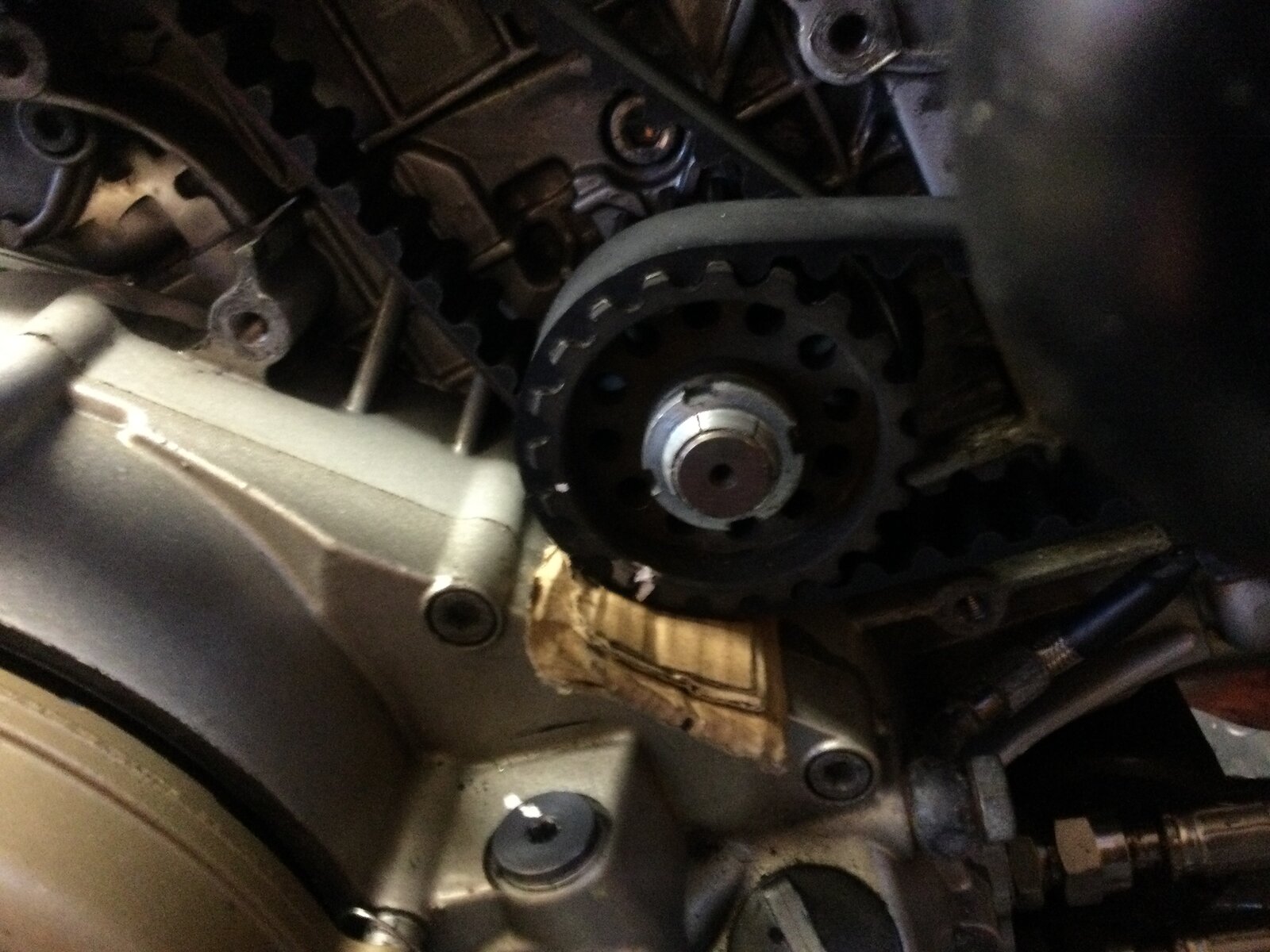

  3. Just made this tool to help fitting belts on my 749:


    I stuck it in the centre/drive pulley to stop the belt disengaging while doing the tricky vertical cylinder belt.
    Picture shows it when doing the horizontal belt (which is much easier as both valves are closed).
    Sorry, I have no dimensions or material specs to pass on.


    • Like Like x 5
    • Funny Funny x 4
  4. Thinking outside the box which i like,:upyeah:...and in this case tear a bit off the edge.:eek:

    • Funny Funny x 2
  5. Cam pulley locking tool , and a mutant socket ( for removing "silly nuts" )

    Cam pulley tools.jpg

    • Like Like x 4

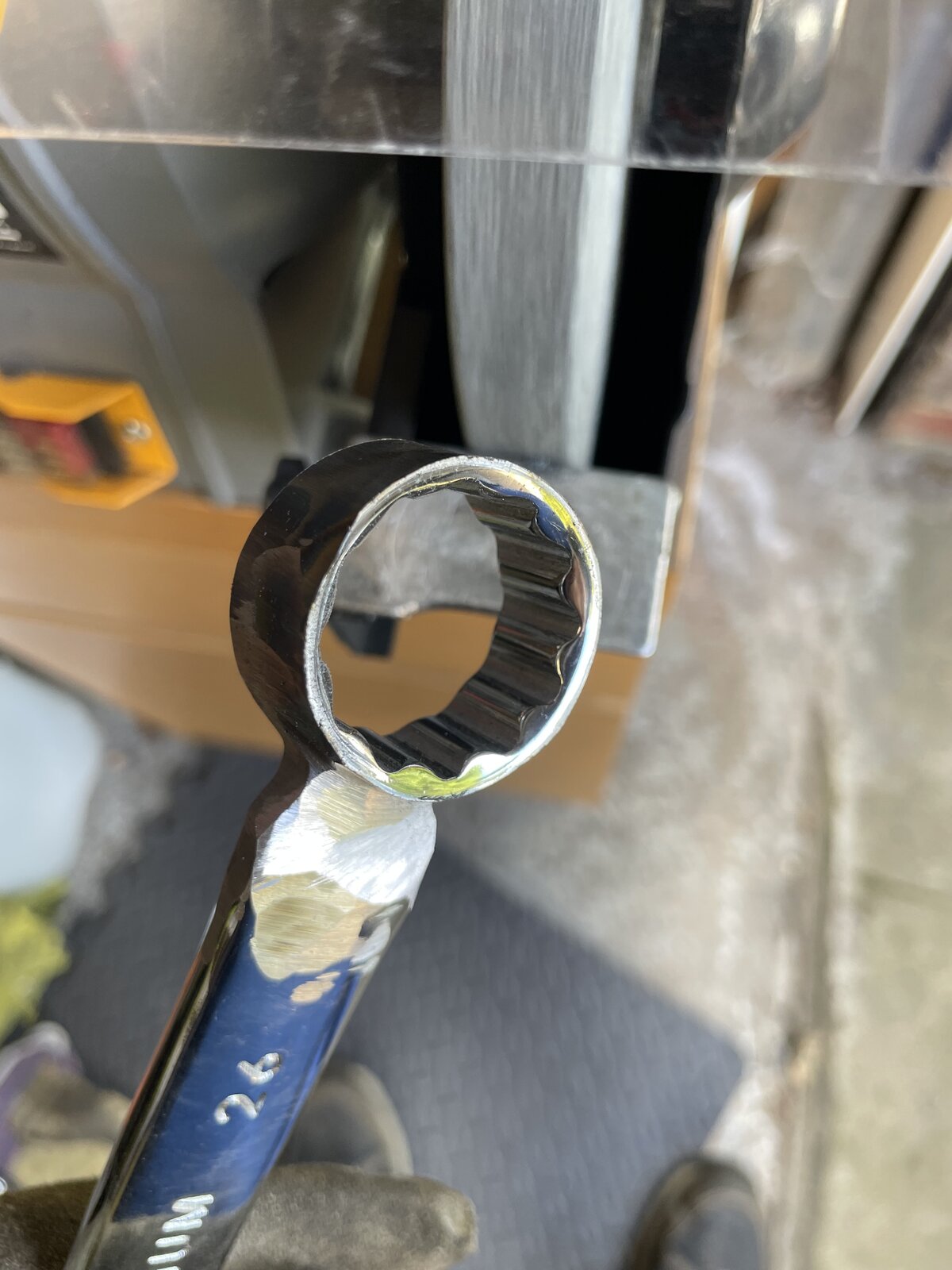

  6. Testastretta cam adjustor nut tool.

    IMG_2302.jpeg IMG_2303.jpeg

    • Like Like x 3
