Hypermotard 1100 Evo Sp Fettling.

Discussion in 'Hypermotard' started by comfysofa, Apr 8, 2016.

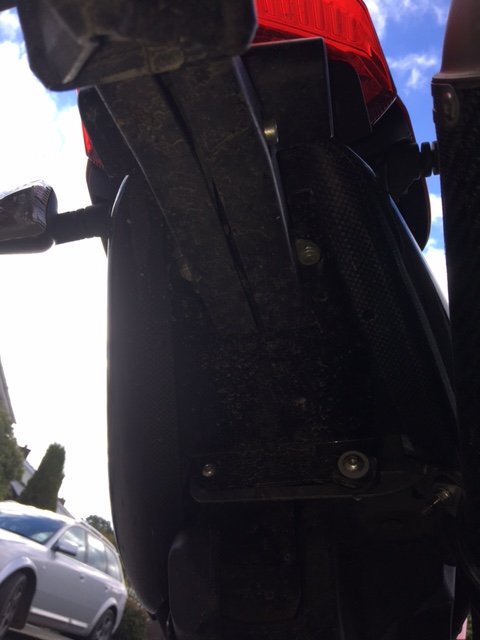

  1. Not sure - difficult to see....is that the stock tail tidy that youre using at the moment...?

  2. Yes, I'm at home with bike now if you want some better - ill go and see what i can do!

  3. If anyone out there has a spare stock on i could borrow then that would be a lot easier!

    Yes - if the flash could be on then i can see more...

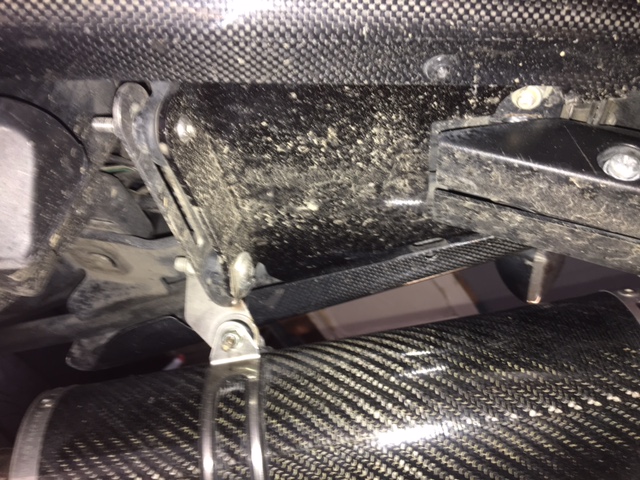

  4. IMG_1468.JPG
    Any better?

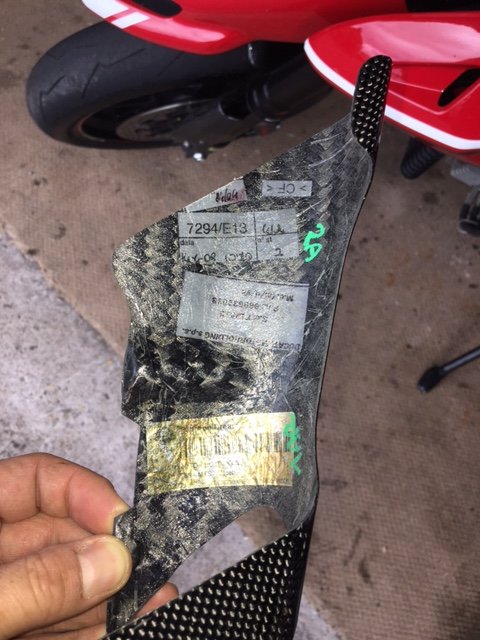

  5. IMG_1470.JPG
    Nice new carbon blingingness!!

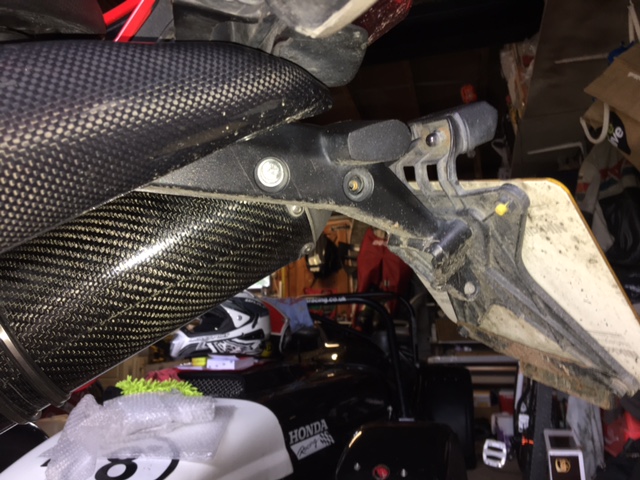

  6. Ok - a bit better....so the 2 bolts on the right hand side of the pic are the actual mount points - the 2 bolts on the left are the mount points for the pipe itself? am i seeing that right??

  7. Yes i think you are correct - without stripping it, i think the right bolts are tail tidy, left is exhaust hanger.

  8. Just seeing the nose of the hyper there i still had it in my head it was an 821 for some reason....ive got a stock tail tidy at home....ill go and dig mine out tonight...the left hand bolts are the mount point for my pipes too....

    • Like Like x 1

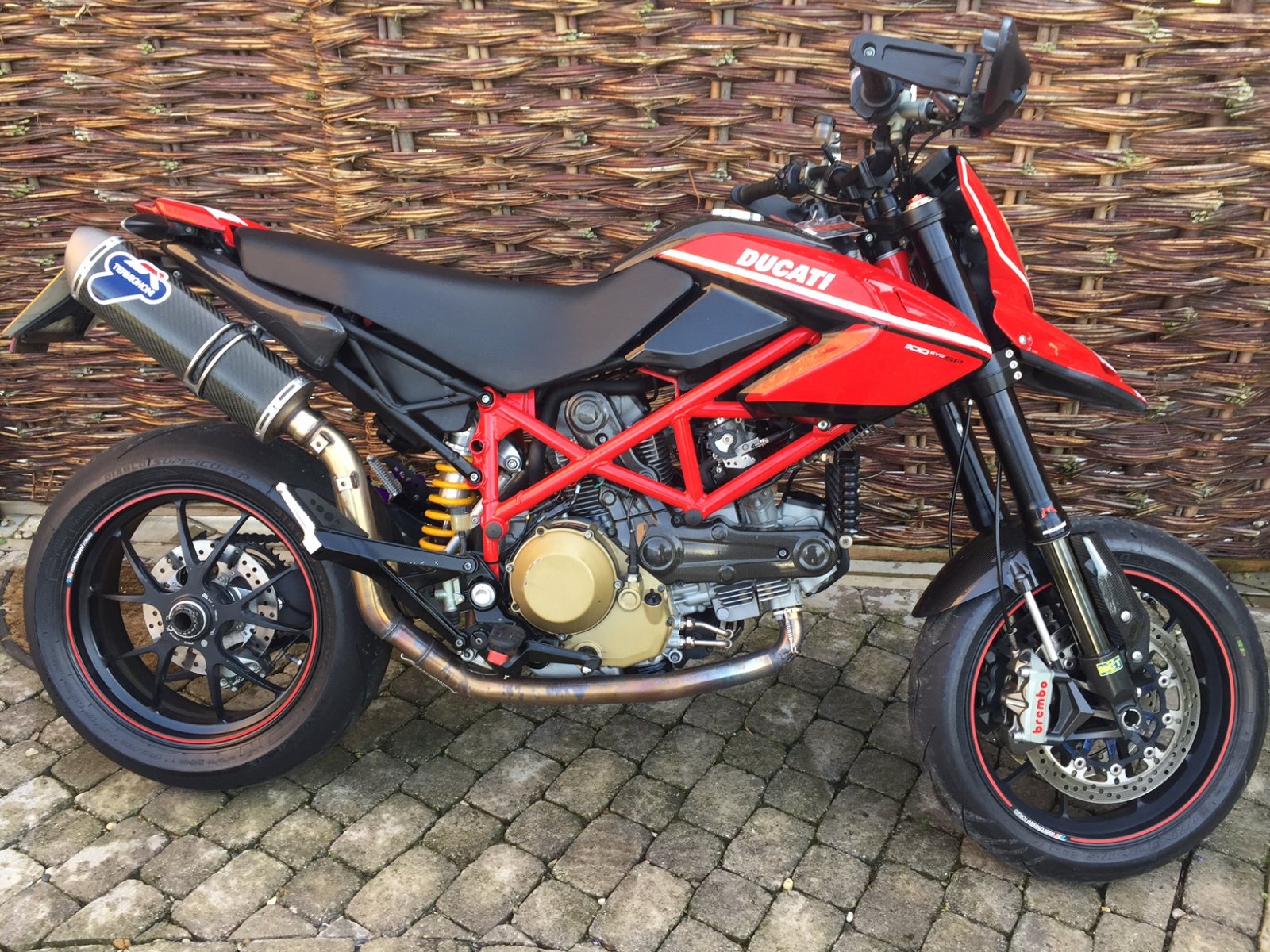

  9. image4.JPG
    Not 821, its one of these!!

    thanks @comfysofa

  10. Same as mine....ill have to piece mine together to see how it all fits....just to make it really easy its all packed away in boxes....

    Edit - just while im seeing this and casting my mind back to the last time i had it all unpacked i think....theres a small mount which sits inbetween the the tail tidy and the sub frame....before i even go looking i think thats the bit i, a. need to see and b. dont have...! although i cant be sure....

    #112 comfysofa, Oct 17, 2016
    Last edited: Oct 17, 2016
  11. What tail tidy have you on yours??

  12. Mine from the look of it has a home made one that bolts into the carbon fibre rear section...when i was doing the wiring yesterday i was half thinking to remove it and get some dimensions but stopped short of it as i already had the soldering iron out doing the resistors...

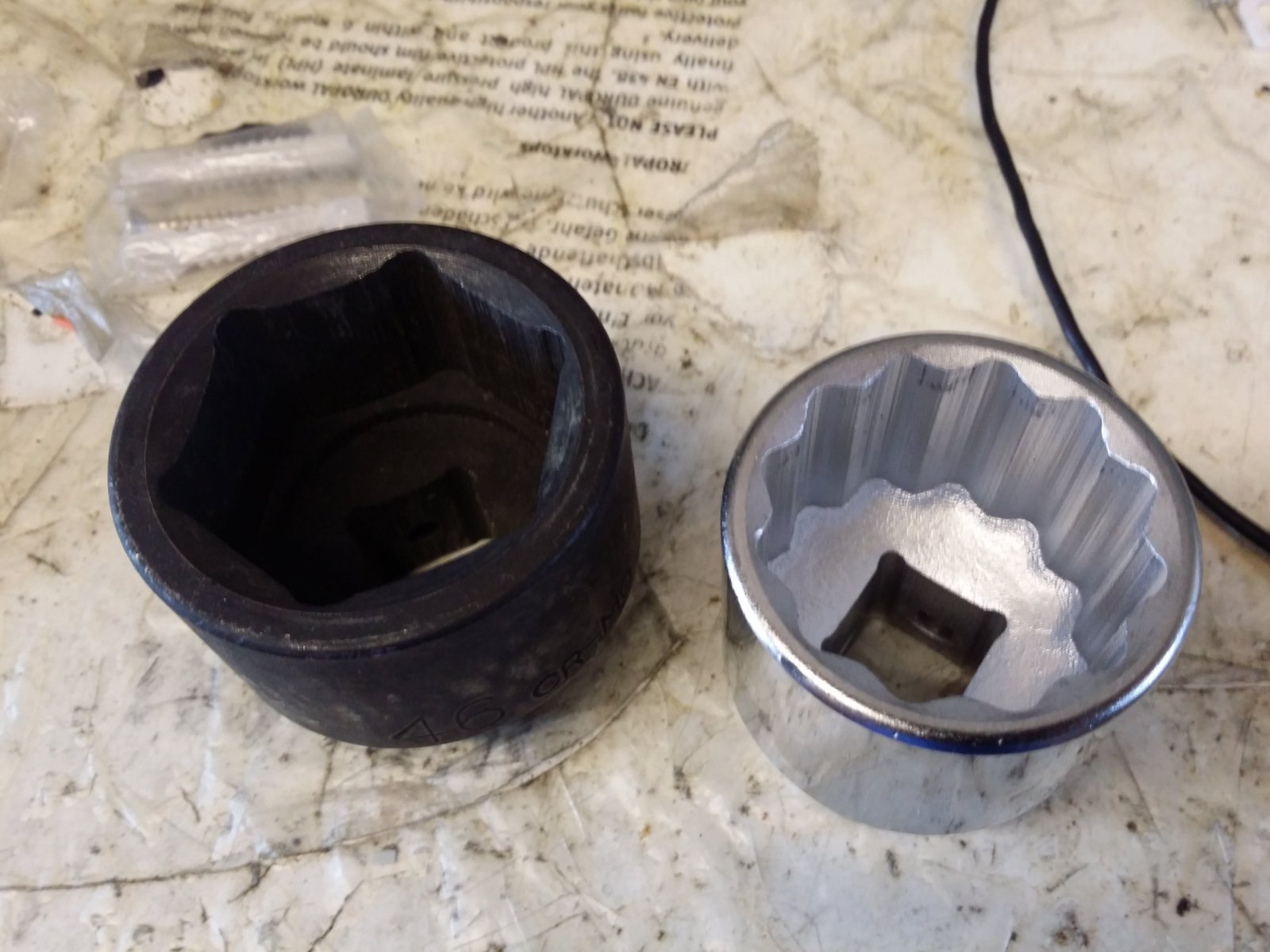

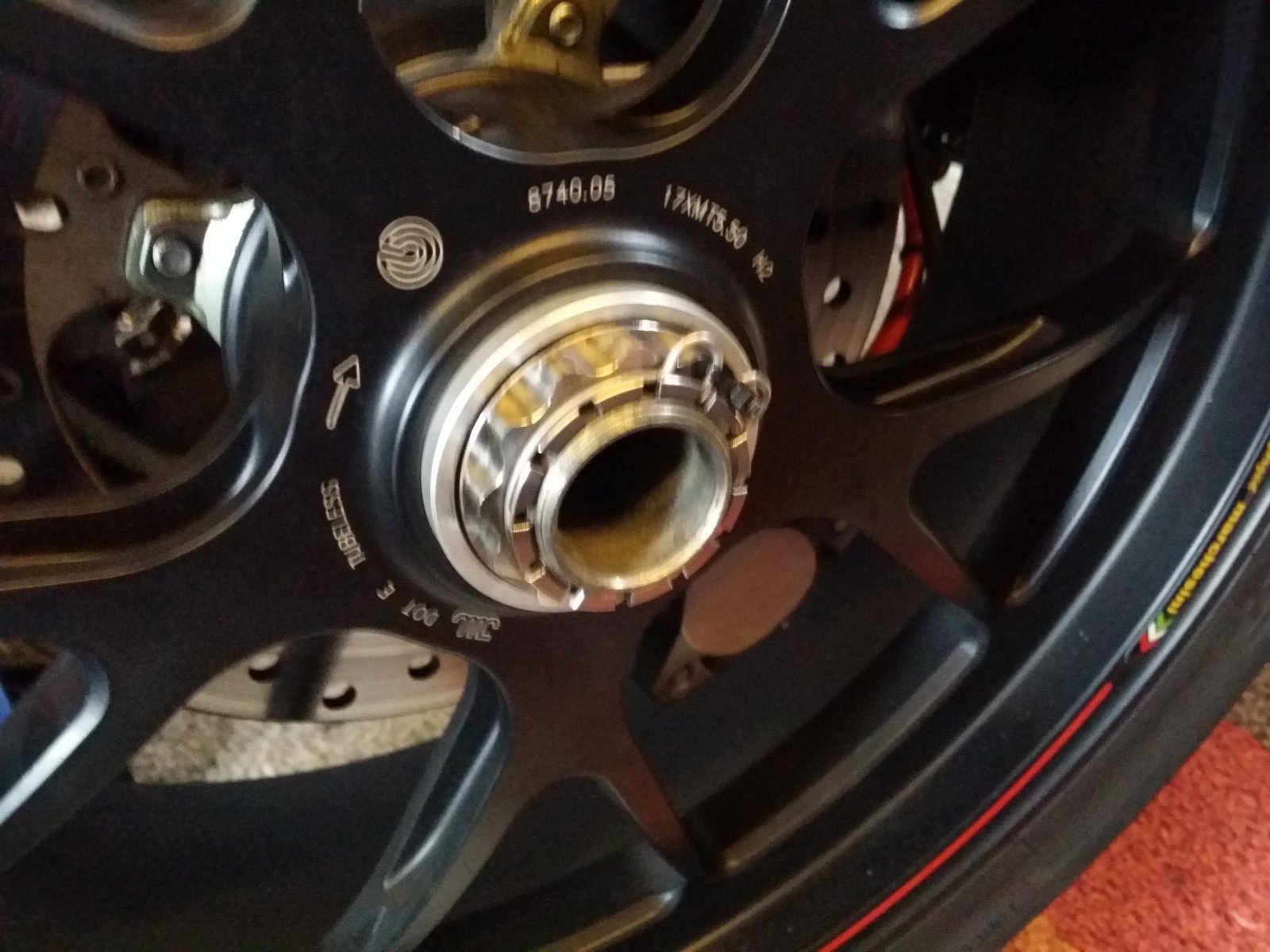

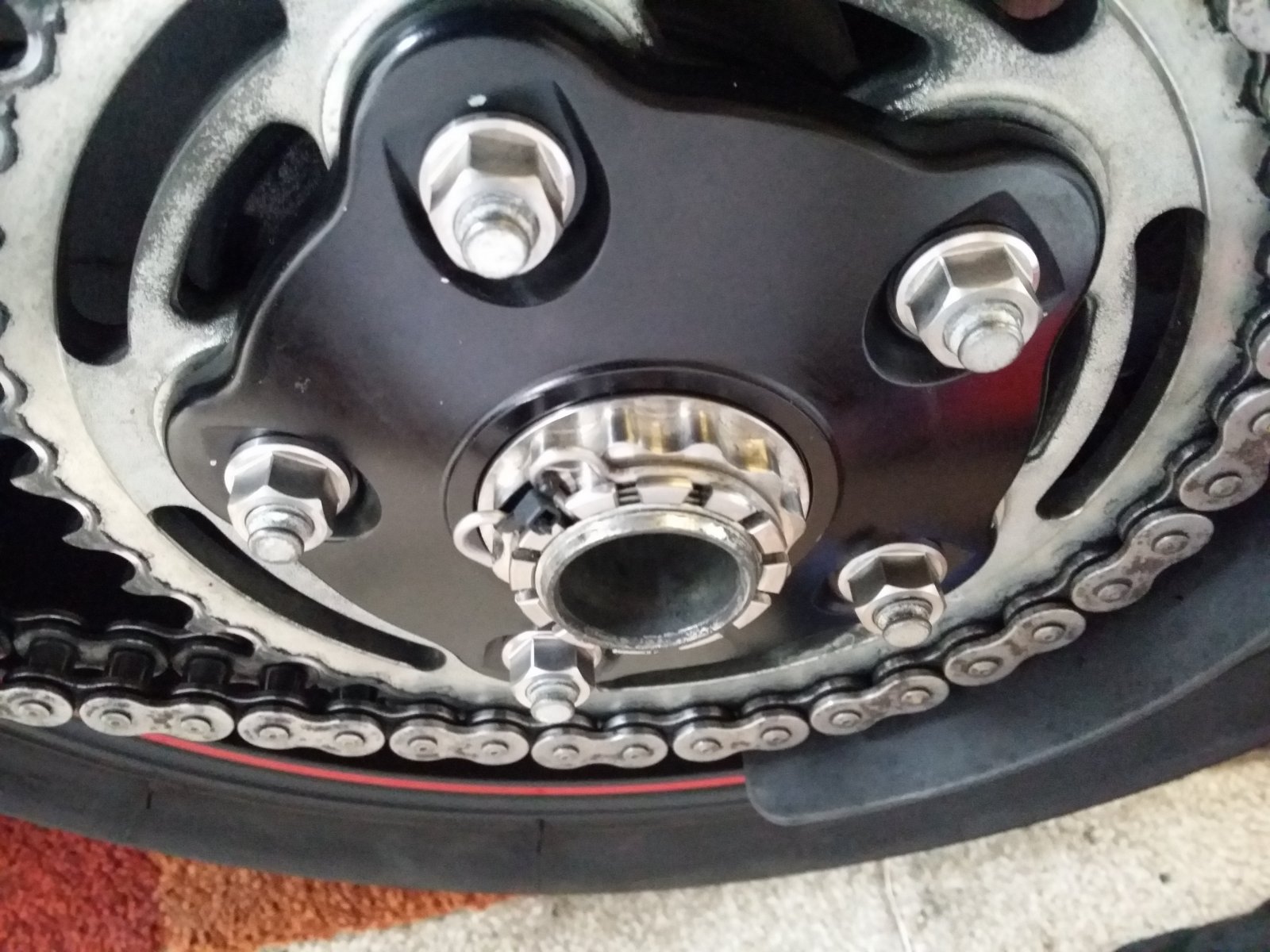

  13. So, bought the 2 titanium rear wheel nuts and then had no sockets to fit. . . The 46mm socket, the black one didn't fit so had to order a 46mm with the other shape which did fit. They're you have it. . . . 1. 46mm ain't 46mm and more to re point putting a vernier on the nut a can't get a measurement of 46mm from anywhere. . . Go figure. . .
    IMG_20161028_142754.jpg IMG_20161028_142700.jpg IMG_20161028_142713.jpg

    • Like Like x 1
  14. Or maybe a Single Hex socket won't fit on a Double Hex Nut.

  15. Yeah.... But the point I was making was 46mm ain't 46mm on the multi point.... The black socket from flat surface to flat surface is, 46mm...

    Sent from my SM-P900 using Tapatalk

  16. If you draw an imaginary line between the socket "cut outs" that would fit on a Single Hex Nut and then measure it would be 46mm.

  17. Not my vernier... While I'm not in the garage from recollection it was something like 48mm...maybe a bit more...

    Sent from my SM-P900 using Tapatalk

  18. It's been a while since I've confessed...

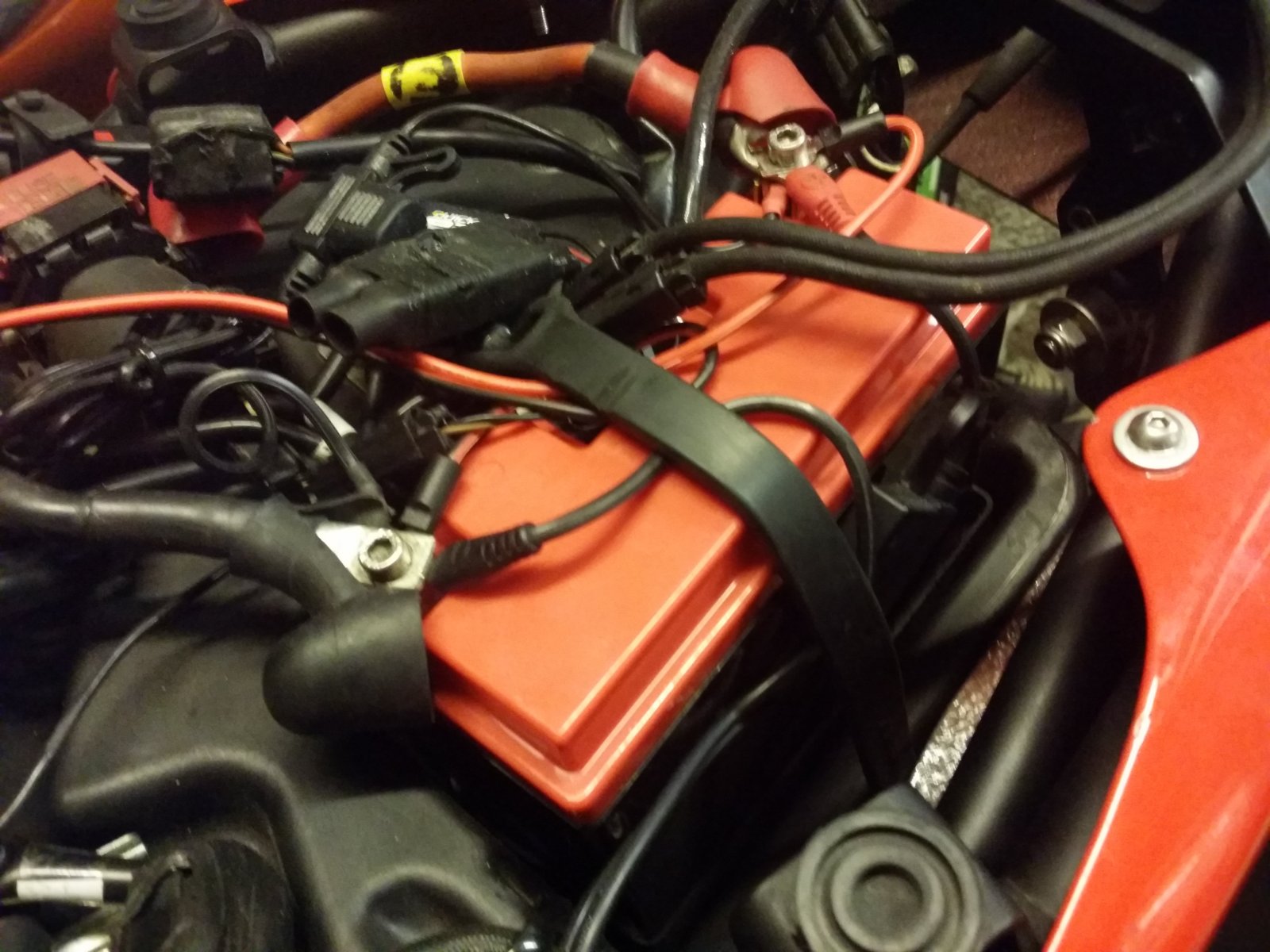

    Lithium battery fitted...

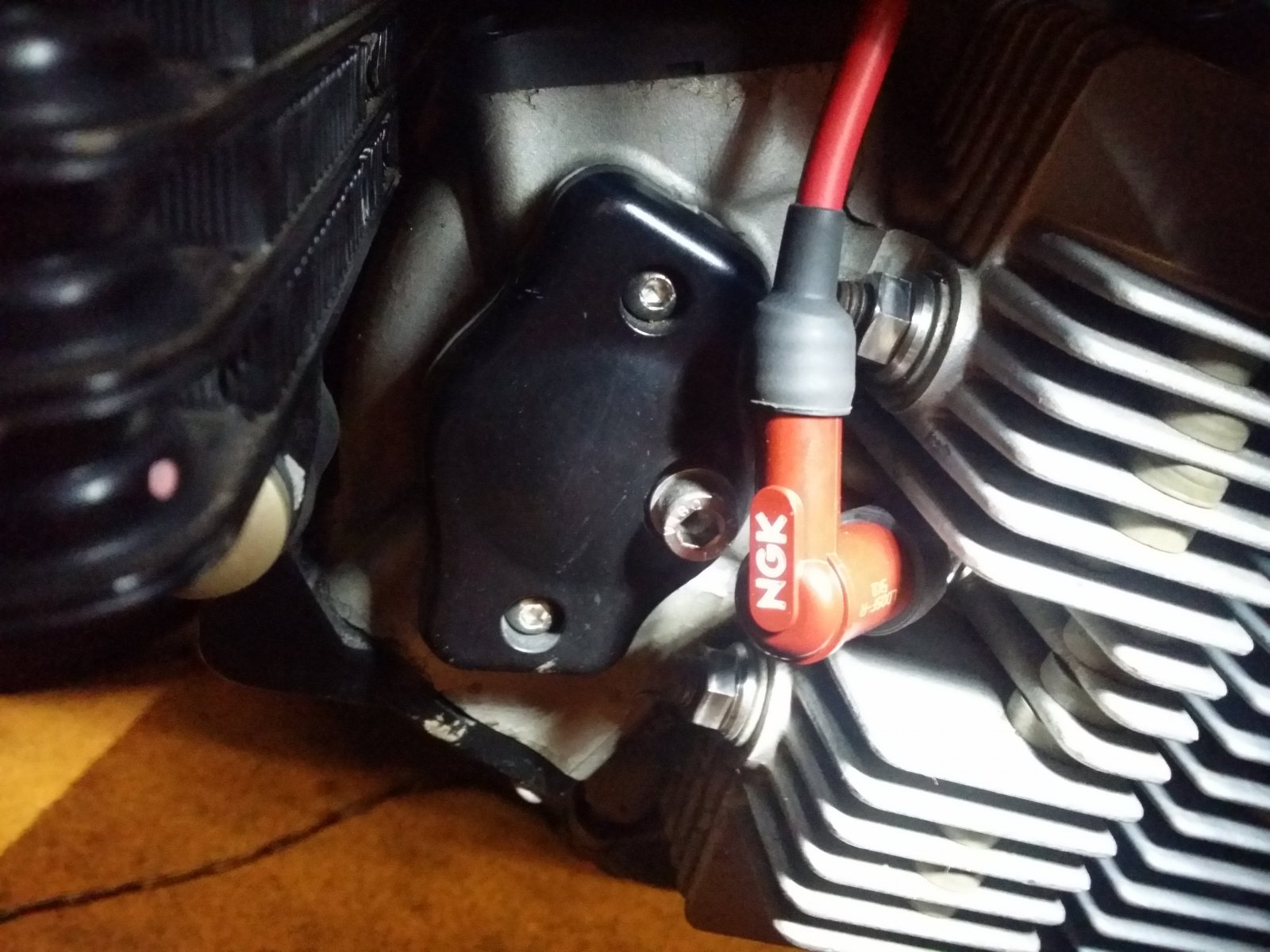

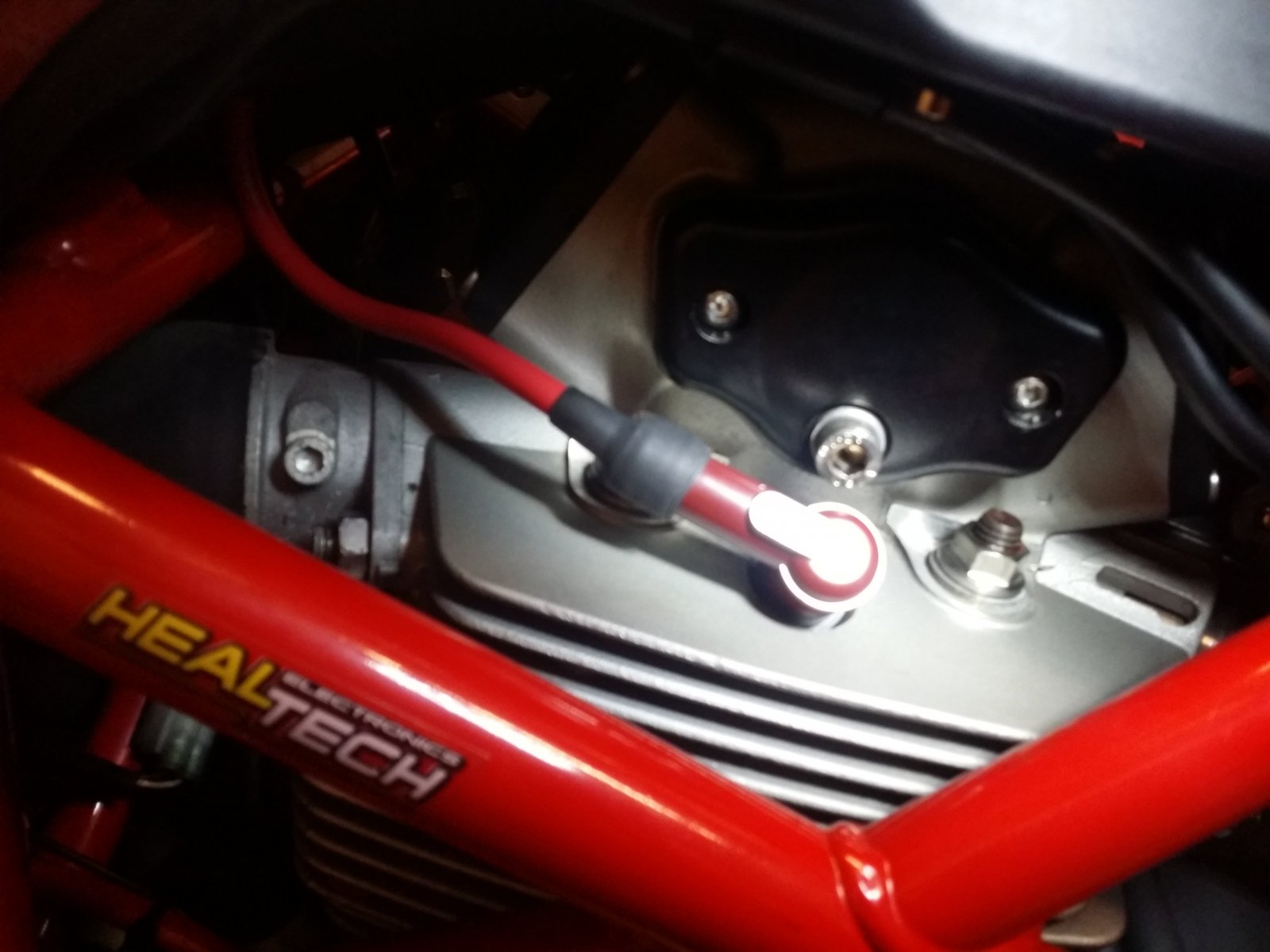

    New plugs, caps and ht leads...

    • Like Like x 1
