Hypermotard 1100 Evo Sp Rebuild.

Discussion in 'Hypermotard' started by comfysofa, Mar 29, 2018.

  1. @comfysofa I had an issue with the clutch on my hyper on Monday - clutch lever suddenly felt like it was hitting something when pulled in - I could only get it to pull in about half way and it hit a 'stop'. Wondering if this might be a problem with the gear return spring - although a friend I left it with took the slave cylinder off and reckons he's fixed it by inserting a ballbearing. He thought the slave piston had popped out too far and was jamming causing the problem. Im not convinced although it seems to be ok at the mo.

  2. Ive got a spare stock slave if you need to test with something...

  3. Thanks @comfysofa it seems to be working now ok - but what caused it is my concern - am due to do a track day on her this Sunday! I don't like it when things are fixed but they're not sure what caused it!

  4. Sure the bolts have not come loose on the pressure plate and pressing against the cover??

  5. No they are all good - nipped up tight! Top hat is ok too on push rod!

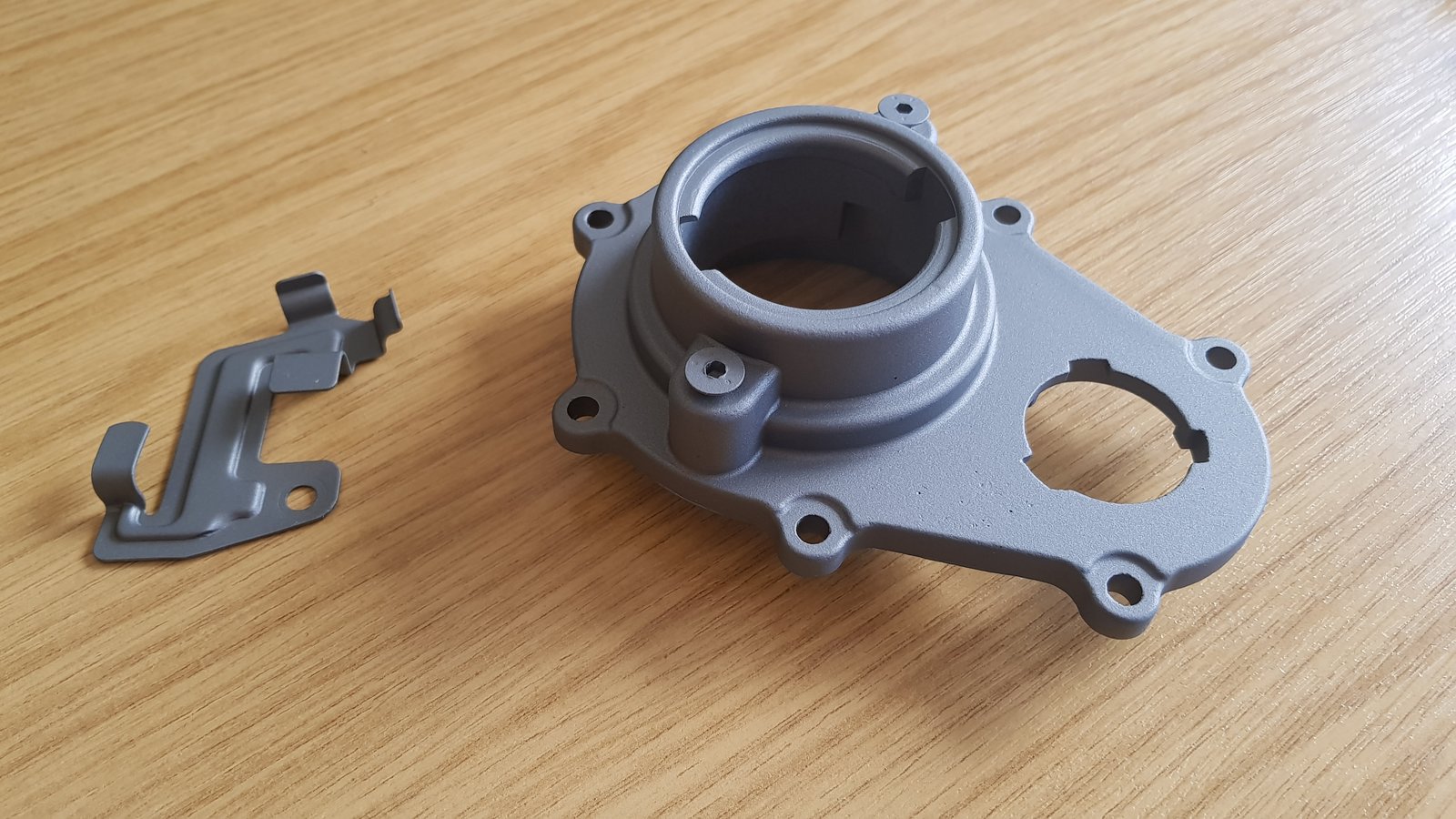

  6. Couple more bits returned from Mr Cerakote ...tank collar and that bit at the back which holds some of the electrics...

    • Like Like x 2
  7. Quick update: Just got off the phone with Ducati John. Final build cost is, give or take 2.2k. Ouch. But, ive kinda taken it to the extreme in that, i can if i want to re-use all the bearings that came out, but, while ive got this chance then thought better of it, coupled with the upgraded shell main bearings is what adds a sizable chunk to the cost. Work will begin on re-assembly mid june...ish.

    • Like Like x 1
  8. Andy, are you having any special head work done?

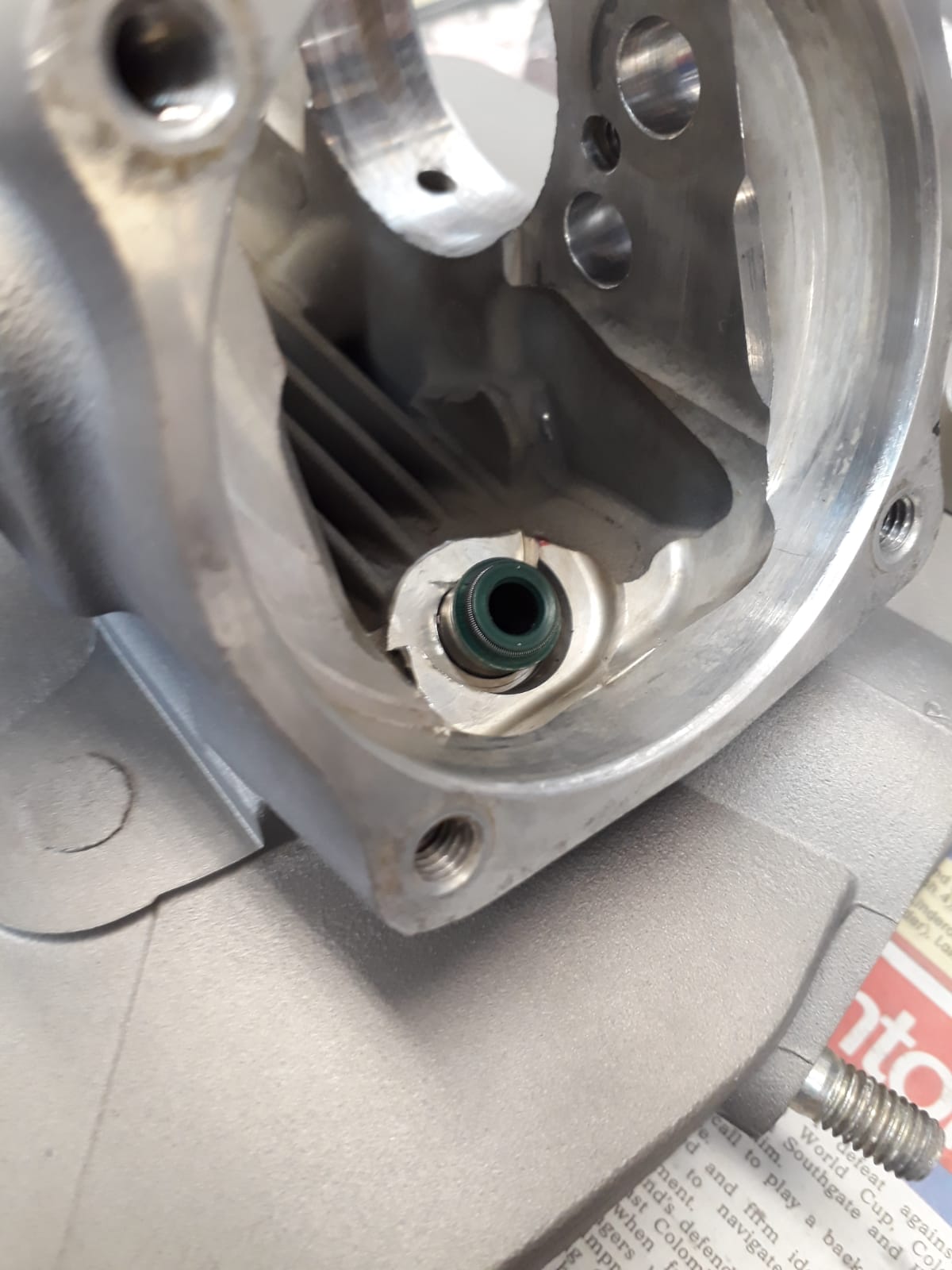

  9. Already done it. Took some of the valve guide away on both cylinders.

  10. Just in case anyone thought it had all gone quiet....well, it has, Ducati John is on hols (cheeky sod eh! :)) engine rebuild "should" be starting next week....

    • Like Like x 3

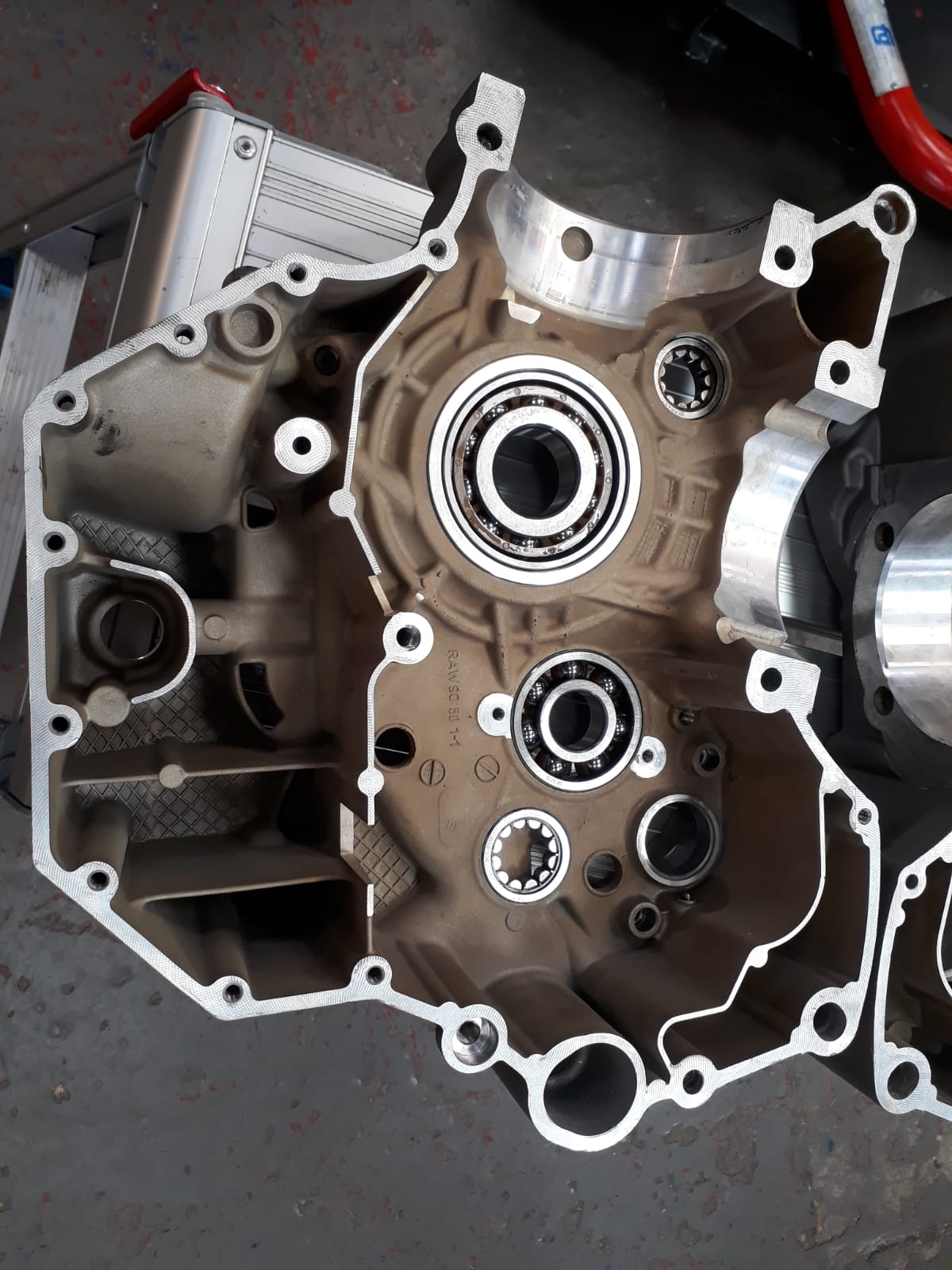

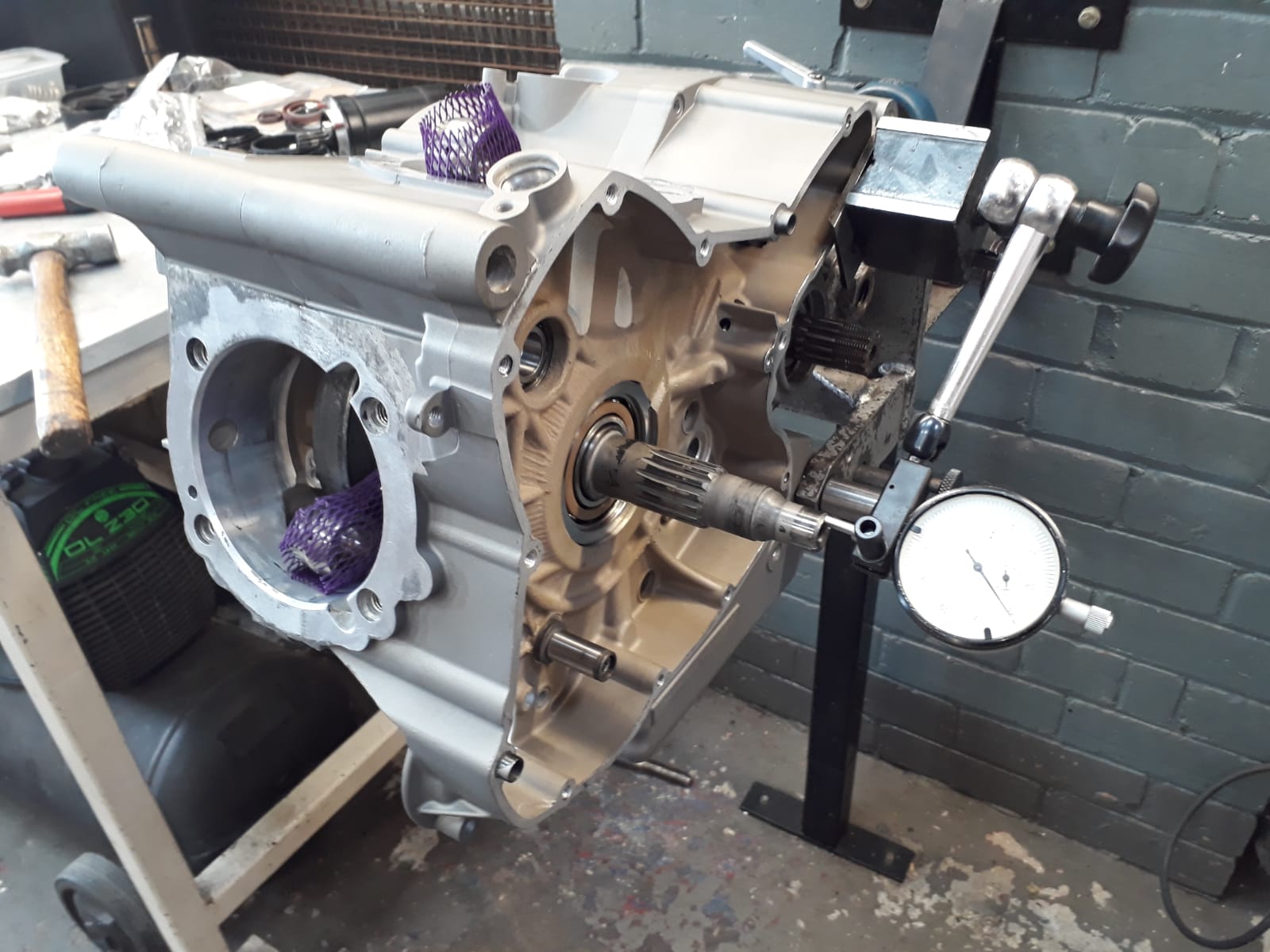

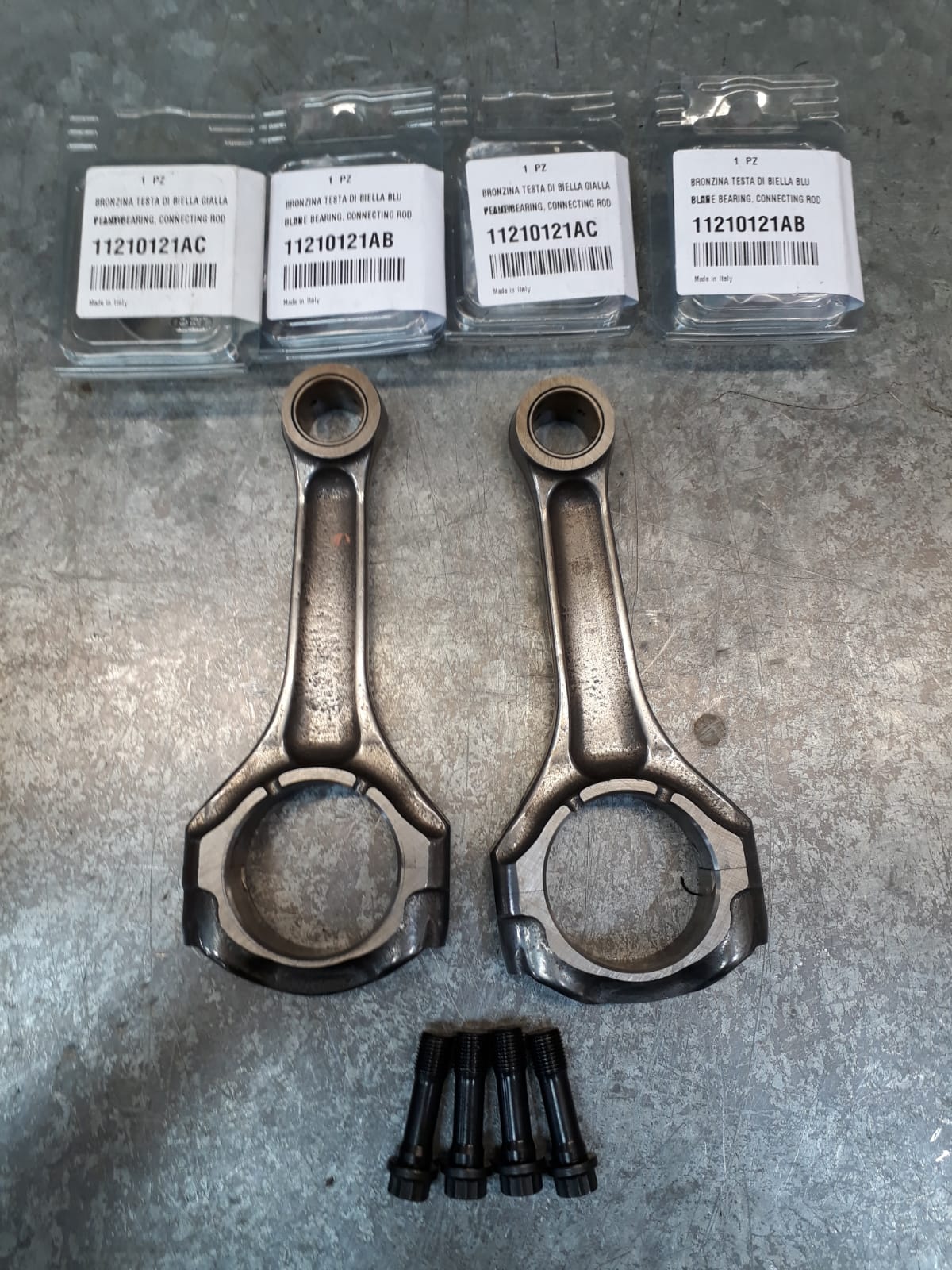

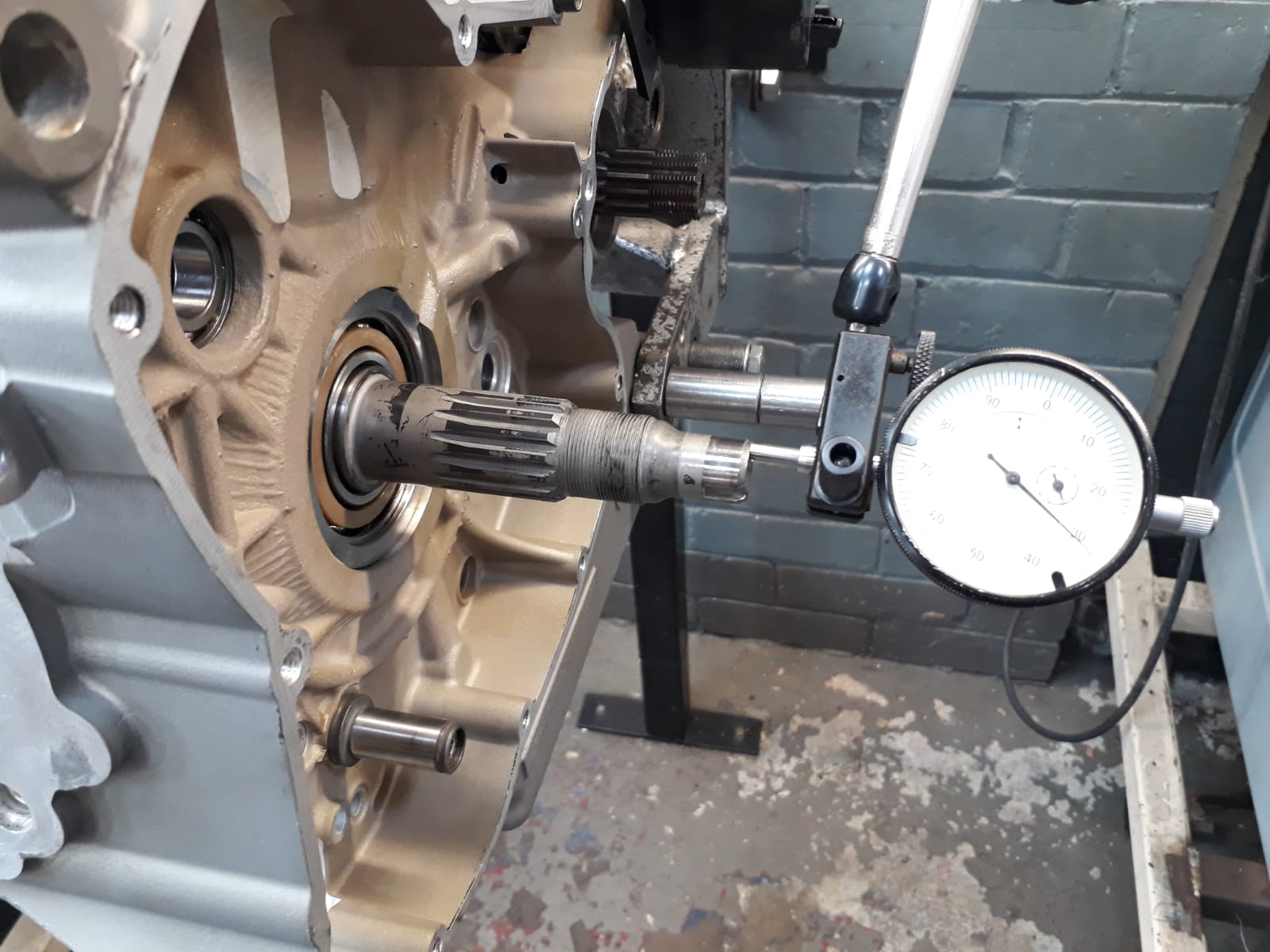

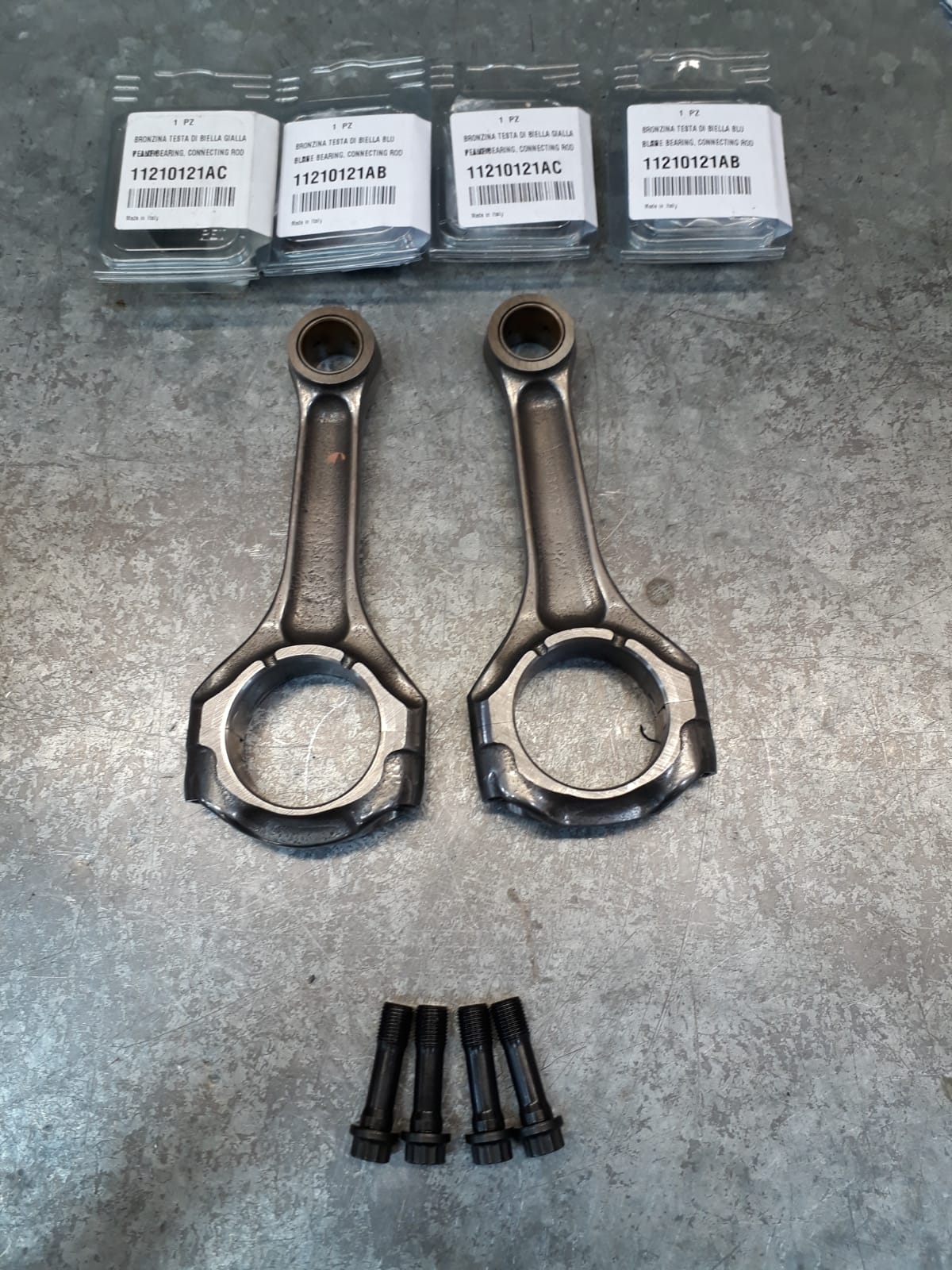

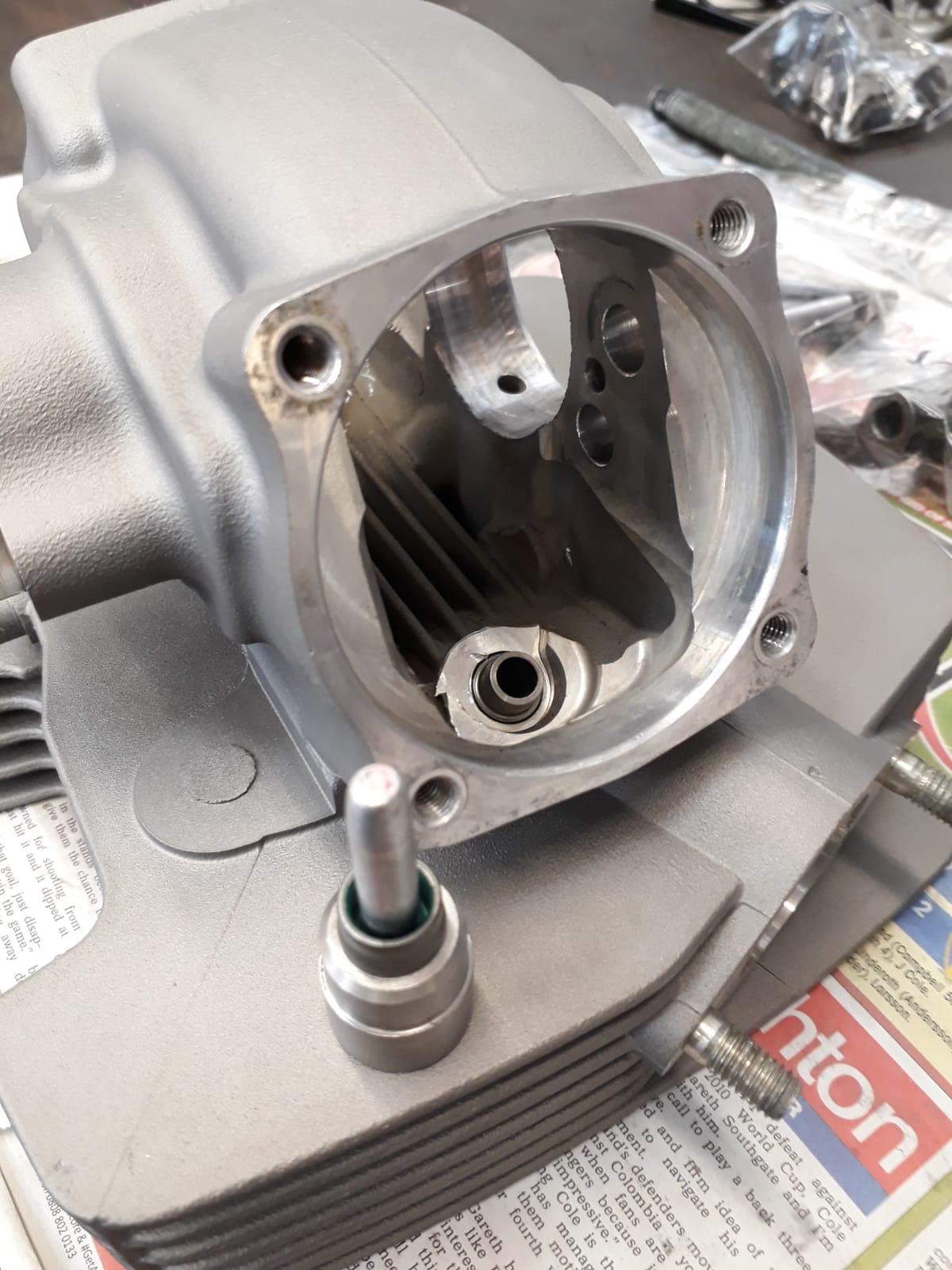

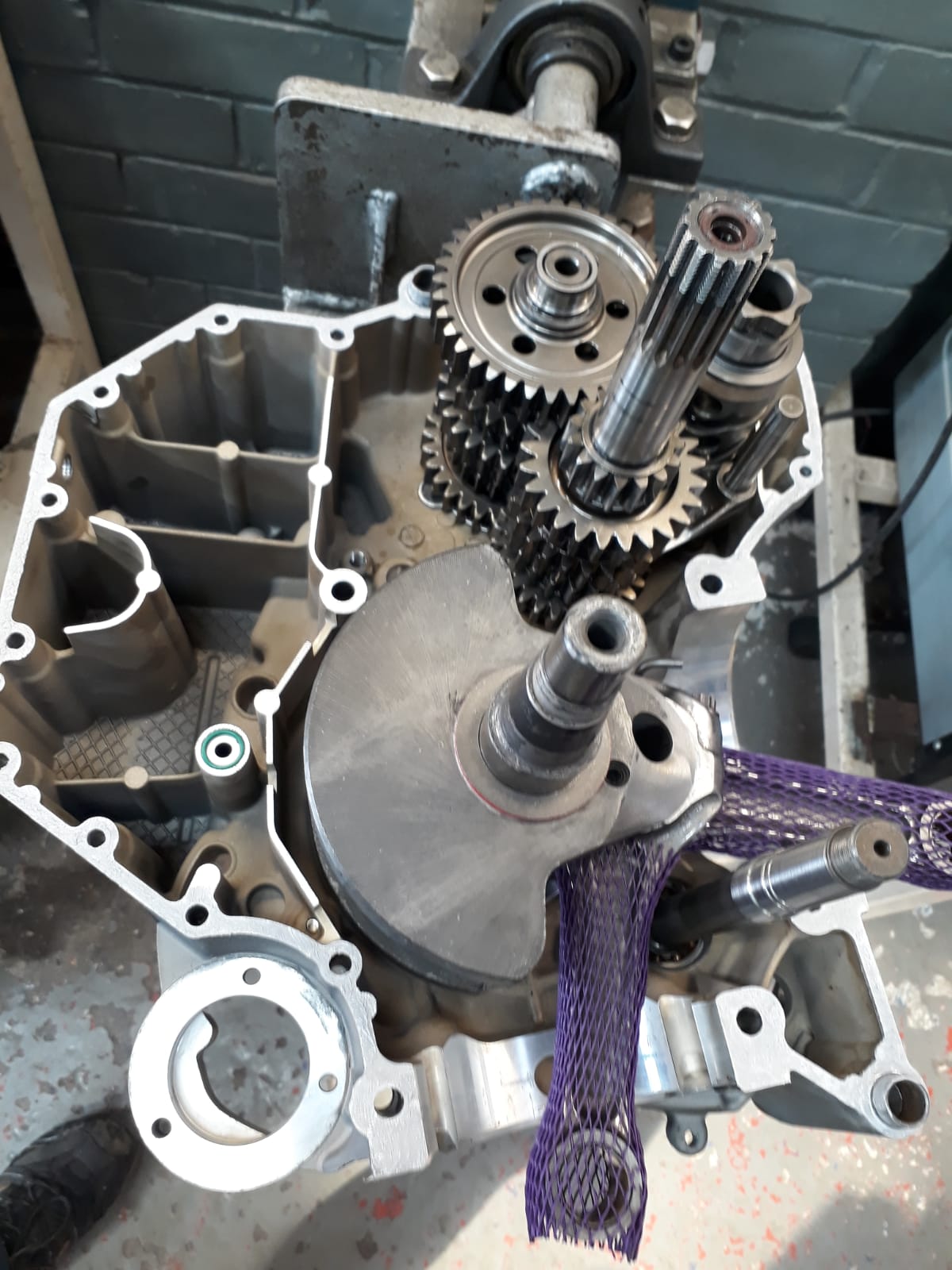

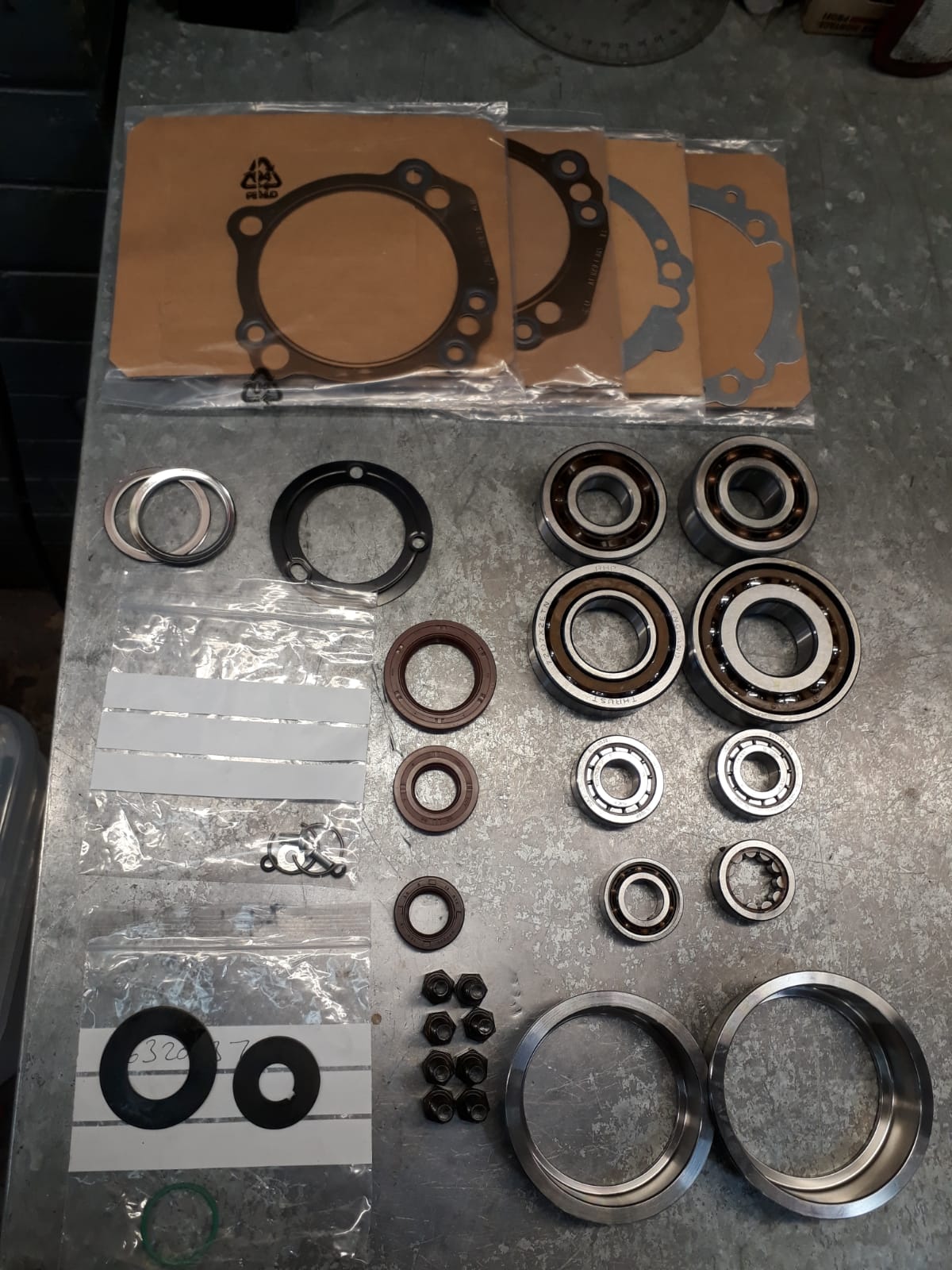

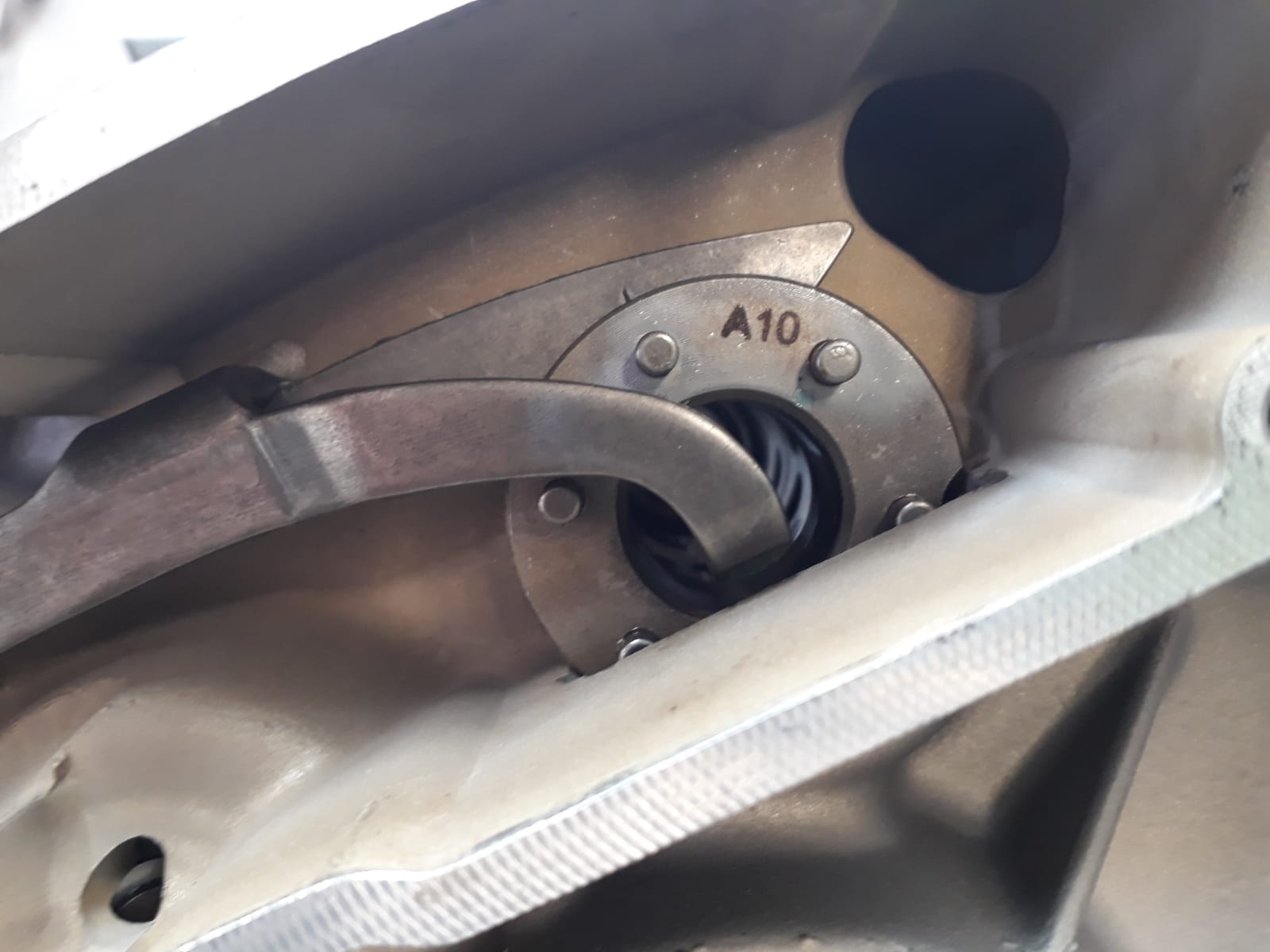

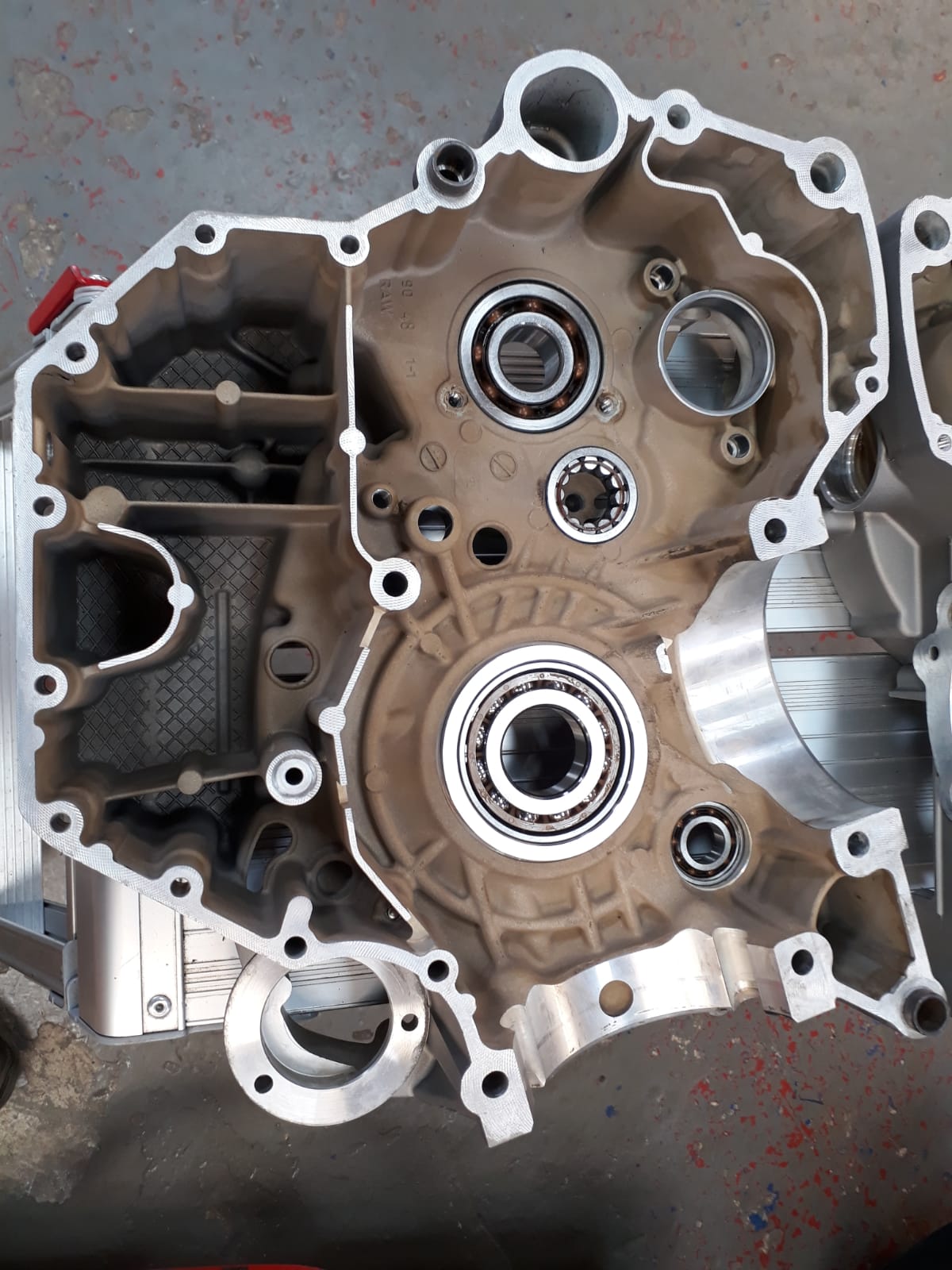

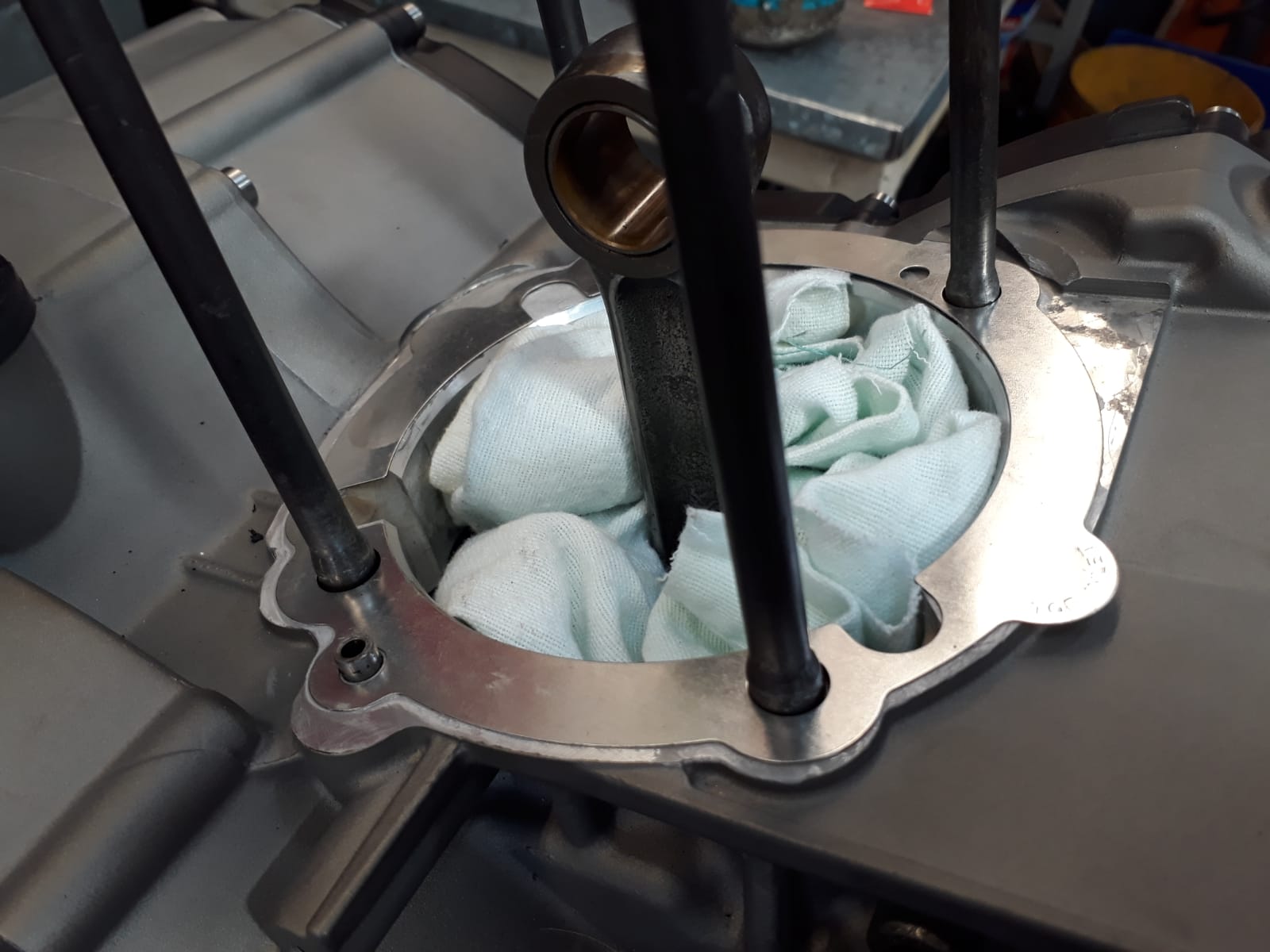

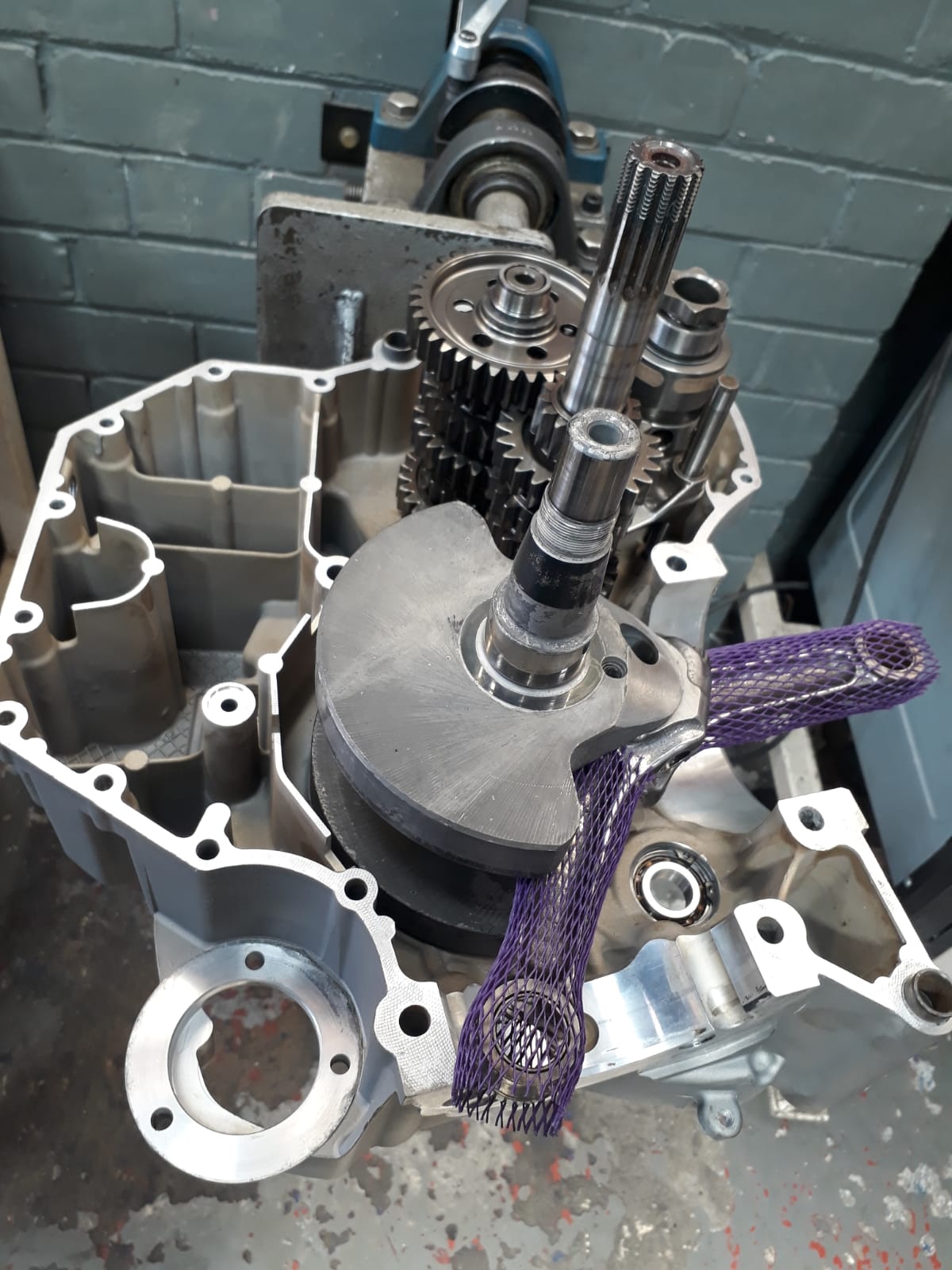

  11. The rebuild begins....at last....
    IMG-20180723-WA0010.jpg IMG-20180723-WA0011.jpg IMG-20180723-WA0000.jpg IMG-20180723-WA0012.jpg IMG-20180723-WA0001.jpg IMG-20180723-WA0013.jpg IMG-20180723-WA0002.jpg IMG-20180723-WA0009.jpg IMG-20180723-WA0007.jpg IMG-20180723-WA0008.jpg IMG-20180723-WA0014.jpg IMG-20180723-WA0003.jpg IMG-20180723-WA0015.jpg IMG-20180723-WA0004.jpg IMG-20180723-WA0005.jpg


    • Like Like x 3
  12. Temporarily stopped as he's waiting for some gaskets to come in but its going the right way now....

    • Like Like x 2

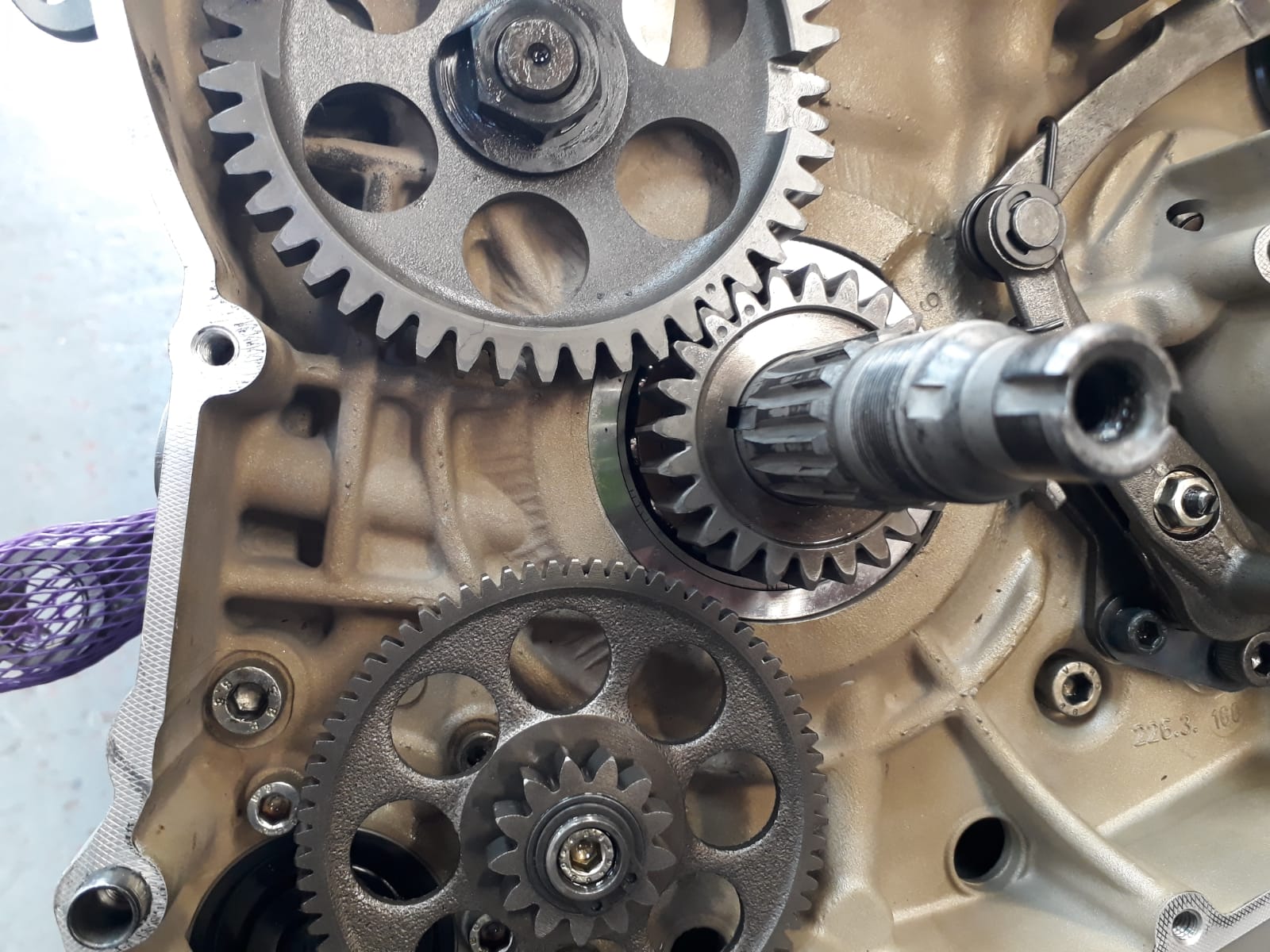

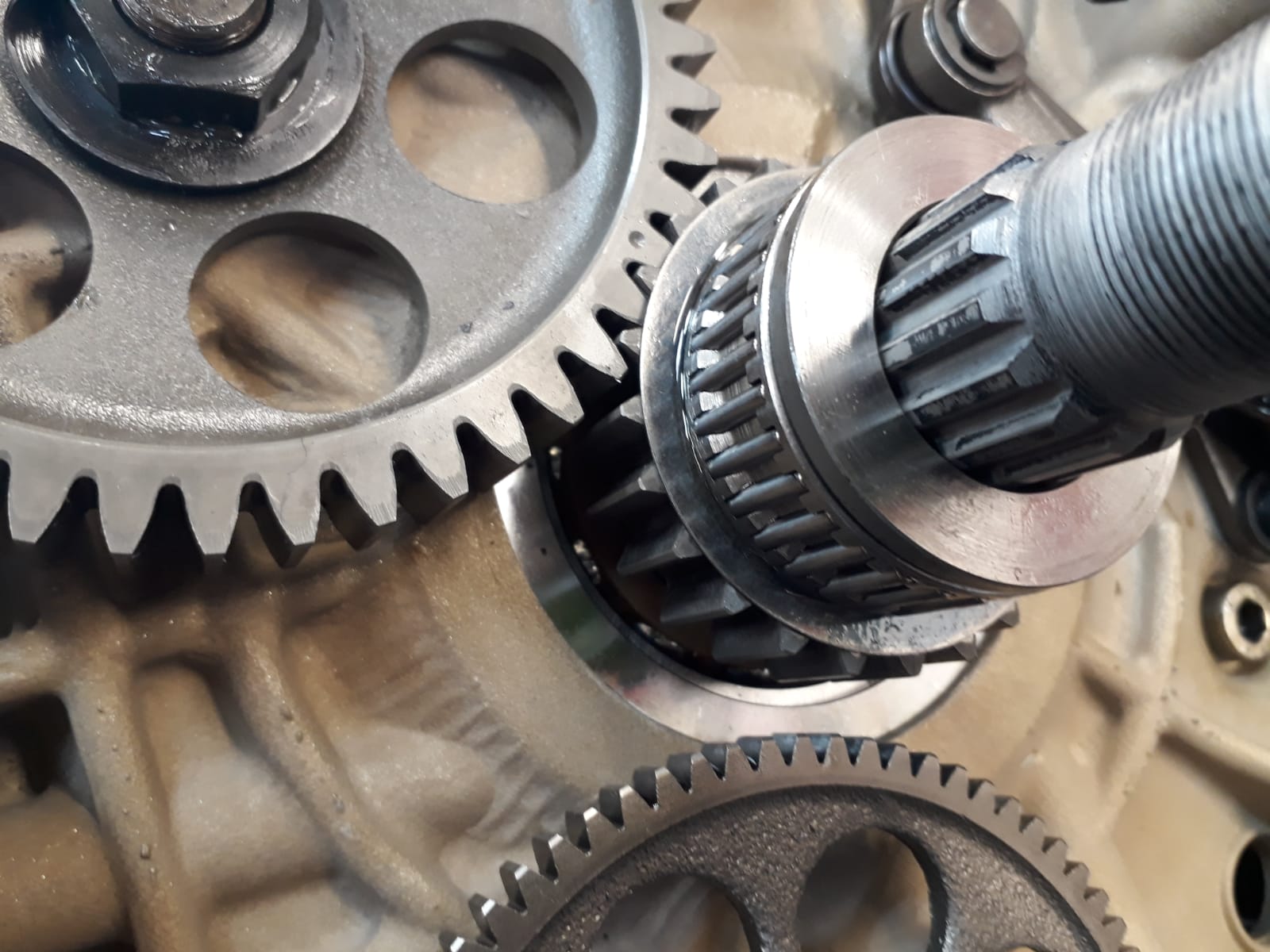

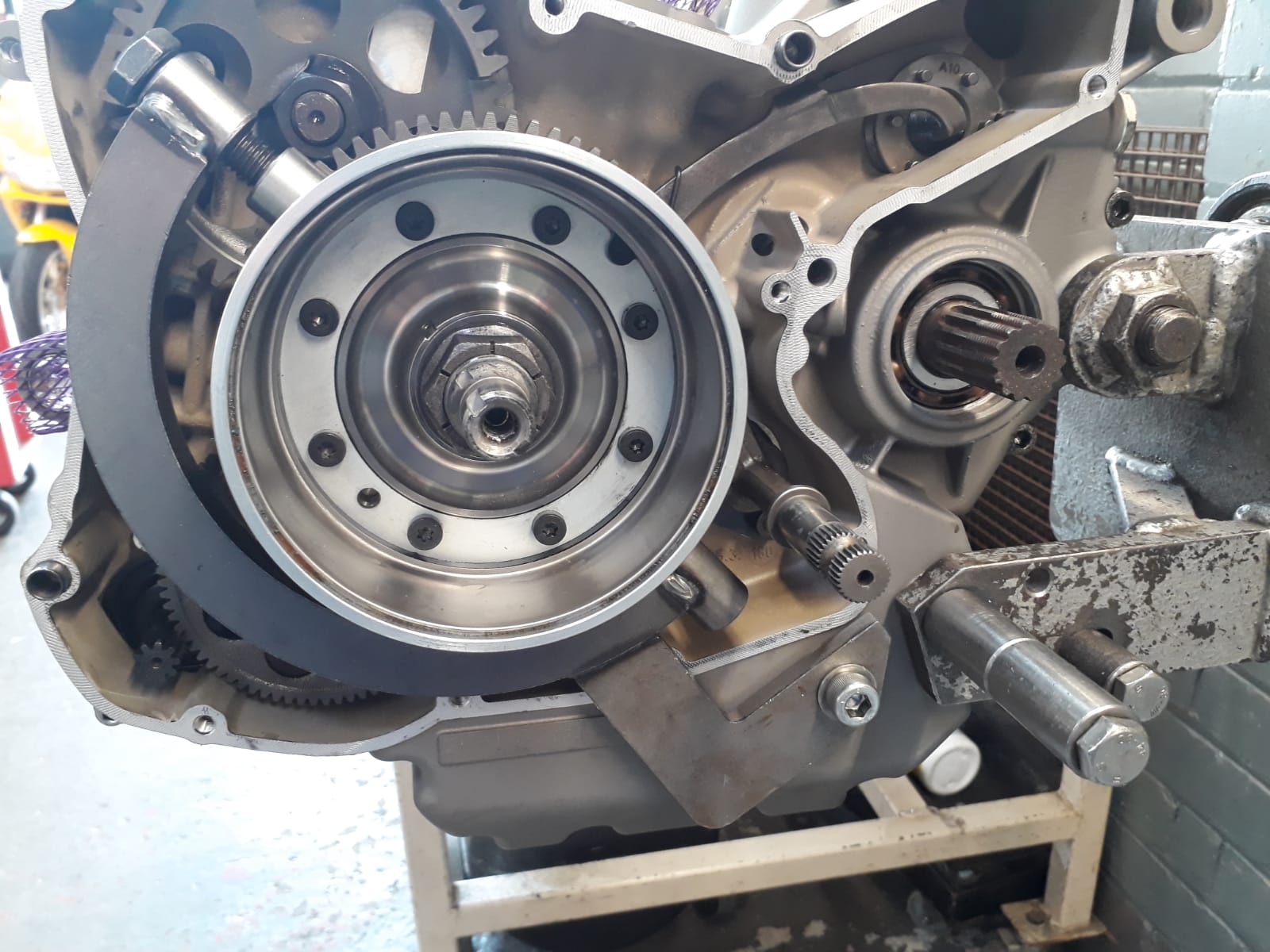

  13. That sprag wear on the starter wheel, I assume is ok? Are you replacing that nuisance sprag whilst youre there?

    Cant wait to see finished engine. Should look the nuts.

  14. I presume so...its at Ducati Johns....so im assuming he'll replace if he needs to but ill ask all the same...

    • Like Like x 1
  15. Yeah - i bloody hope so! i do try to "do stuff right" if ever i end up in this situation....if i wasnt planning on keeping it long term then i may have gotten another engine or something like that, but, it was really all about the finish (the cerakoting) thats the thing that should give it the longevity. Im hoping that once its all back together and running the time taken to keep it looking good should be cut down to a minimum...

    • Like Like x 2
  16. Hey andy, was only thinking this morning bout how its going, you had the crank assy balanced, was it far out? Should be silky smooth when all done.

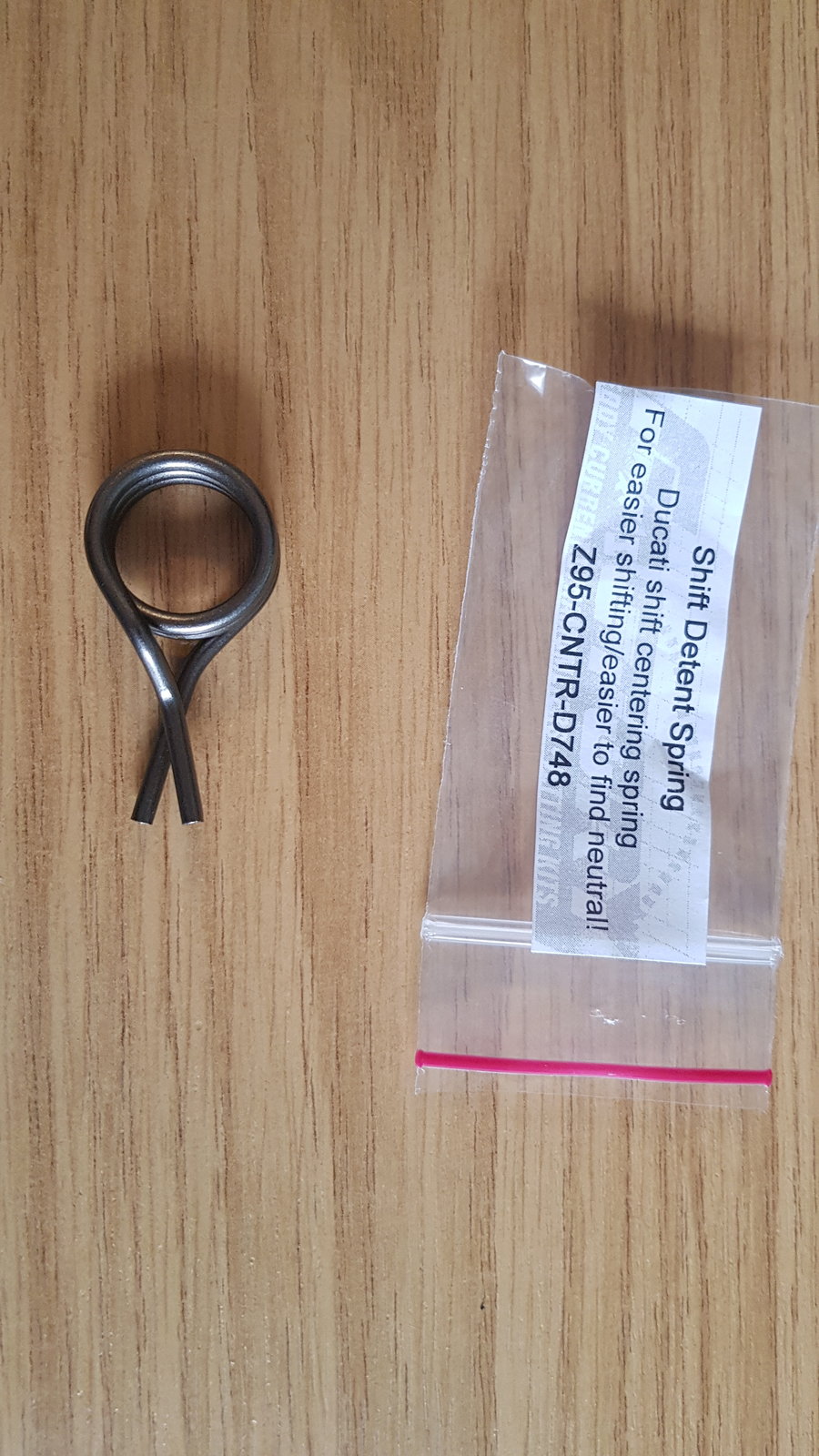

  17. Yep - all balanced and done as you can see....only fly in the ointment was i bought an aftermarket gear return spring from the states (80 quid to get it here) i stuck it in the box and for whatever reason it got lost....bollocks. My bro is going back over later in the year so ill get another sent to where he's staying....(will cost half the price then)!!

    It seems like forever ive been sending cash off to Ducati john but after the end of this month ill be on the home straight....theres still more to do though (the rear cf bit) is in desparate need of a respray so once its all back together that'll be going somewhere to get sorted out...

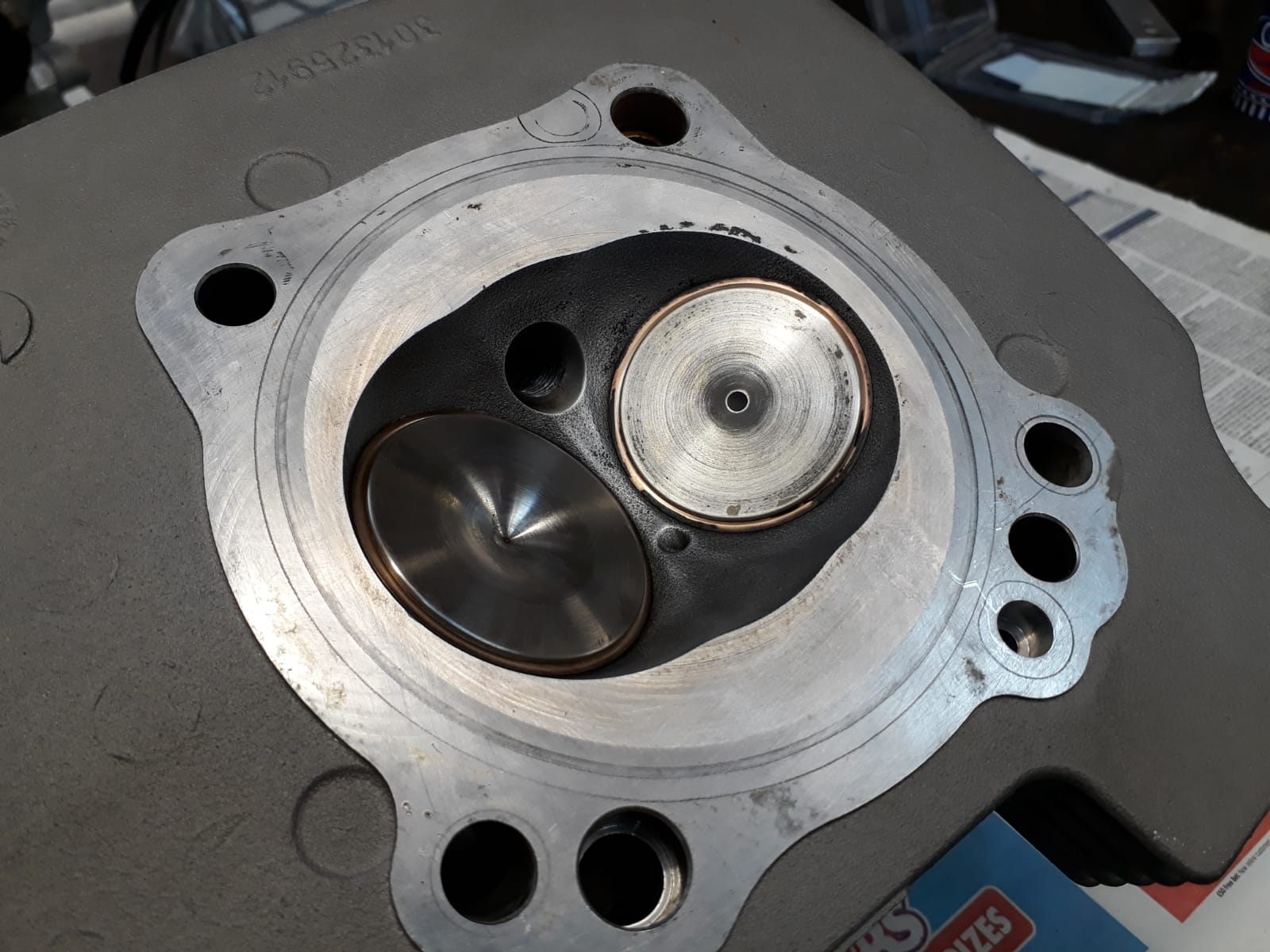

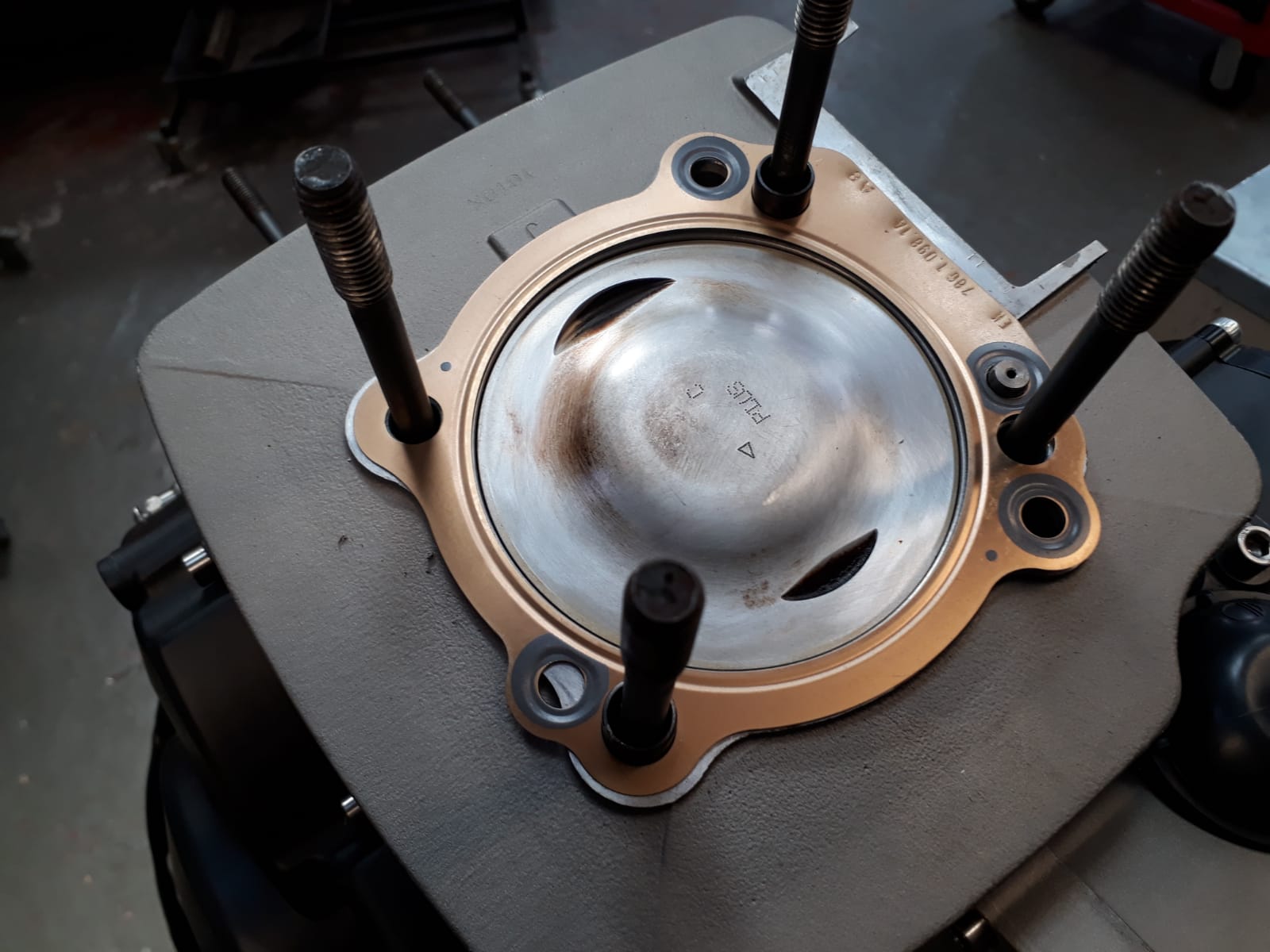

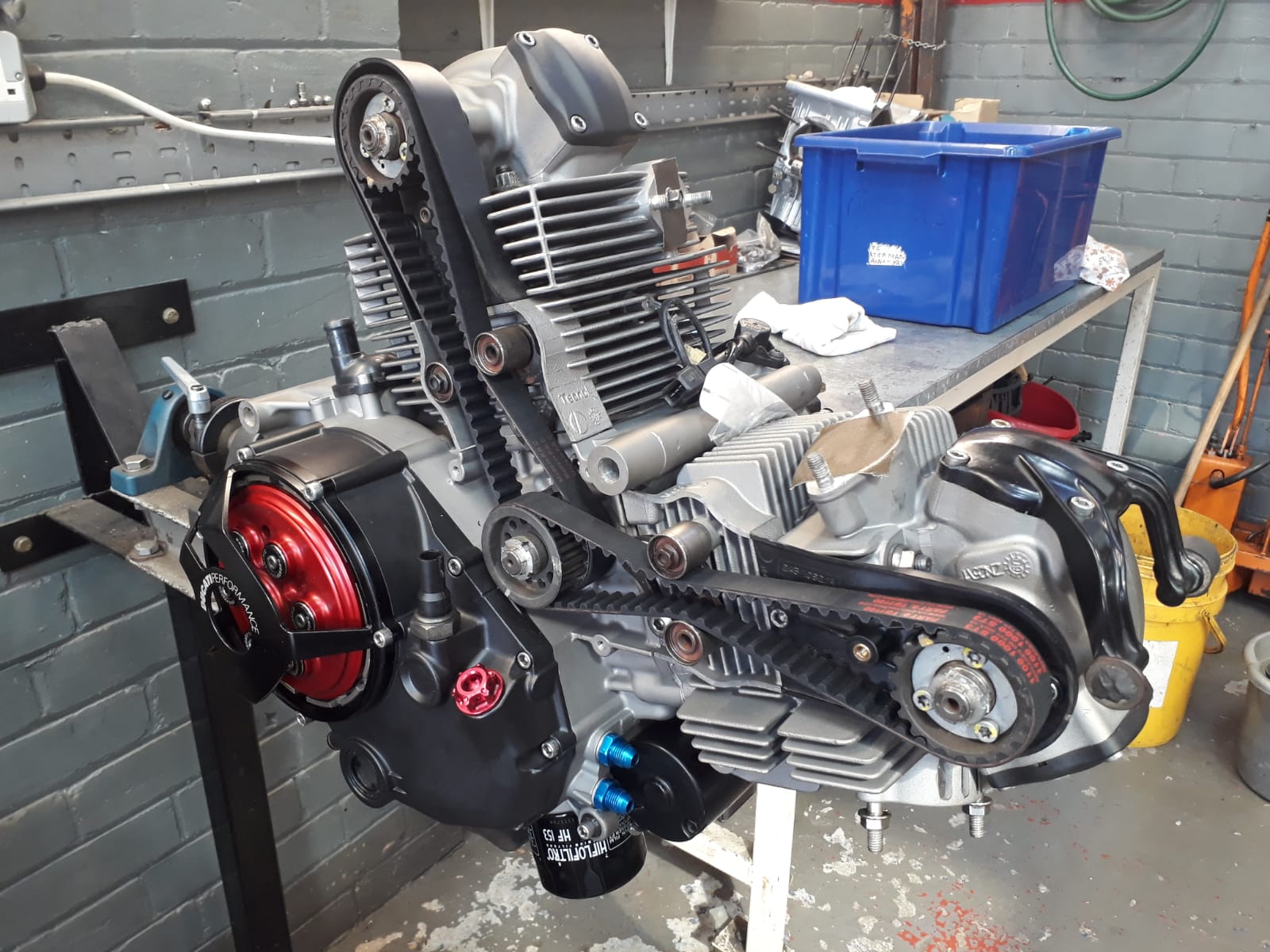

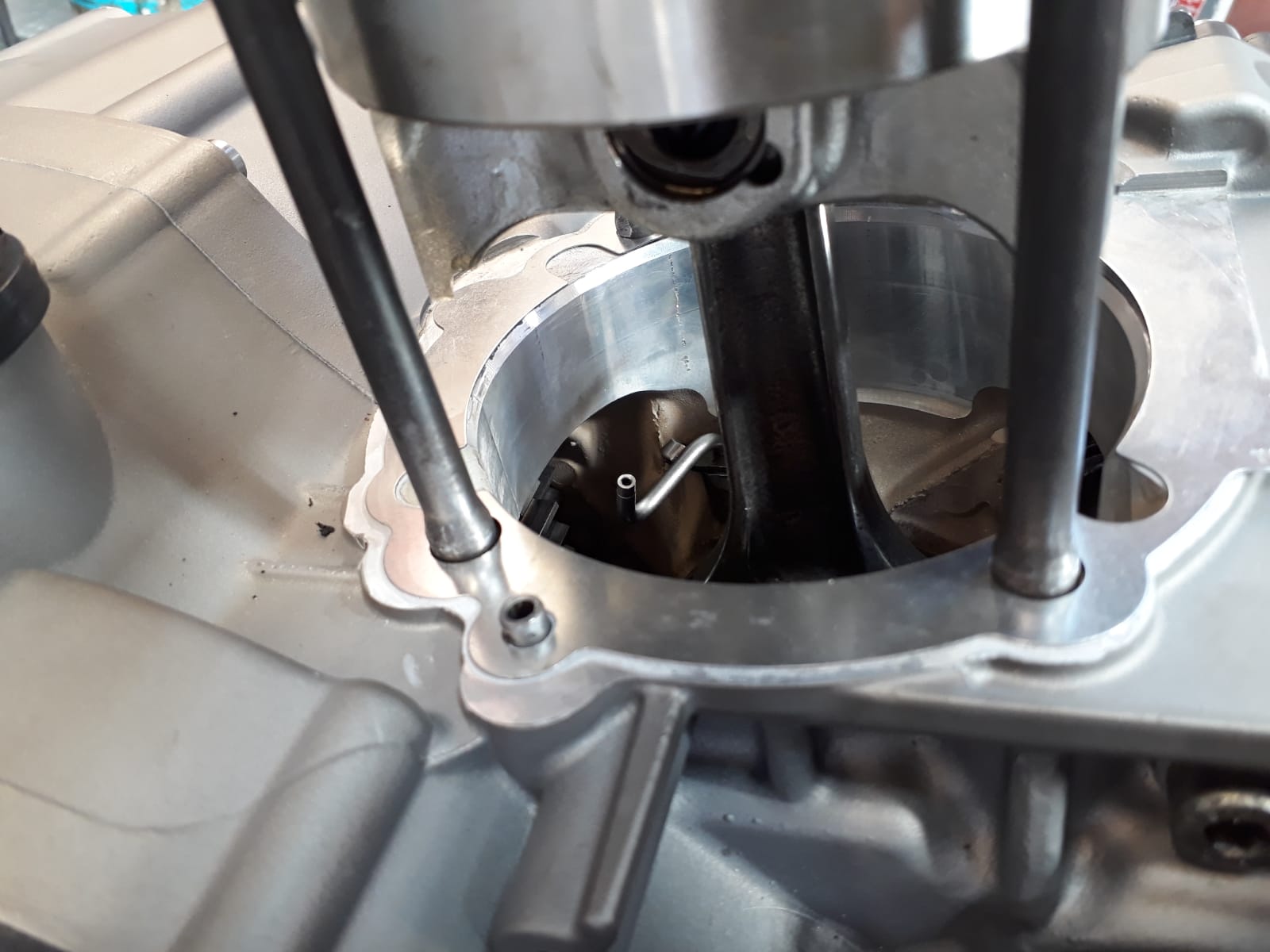

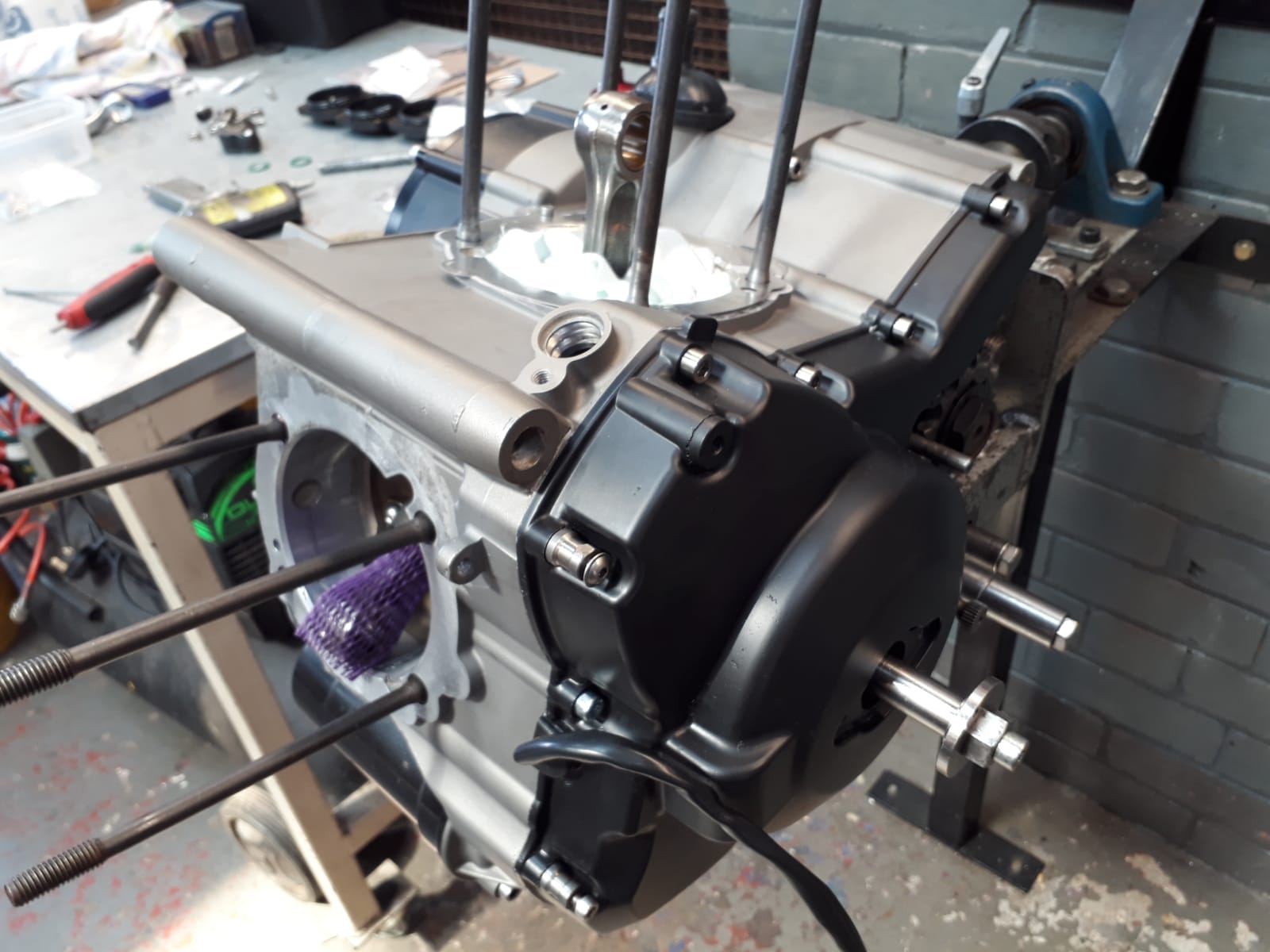

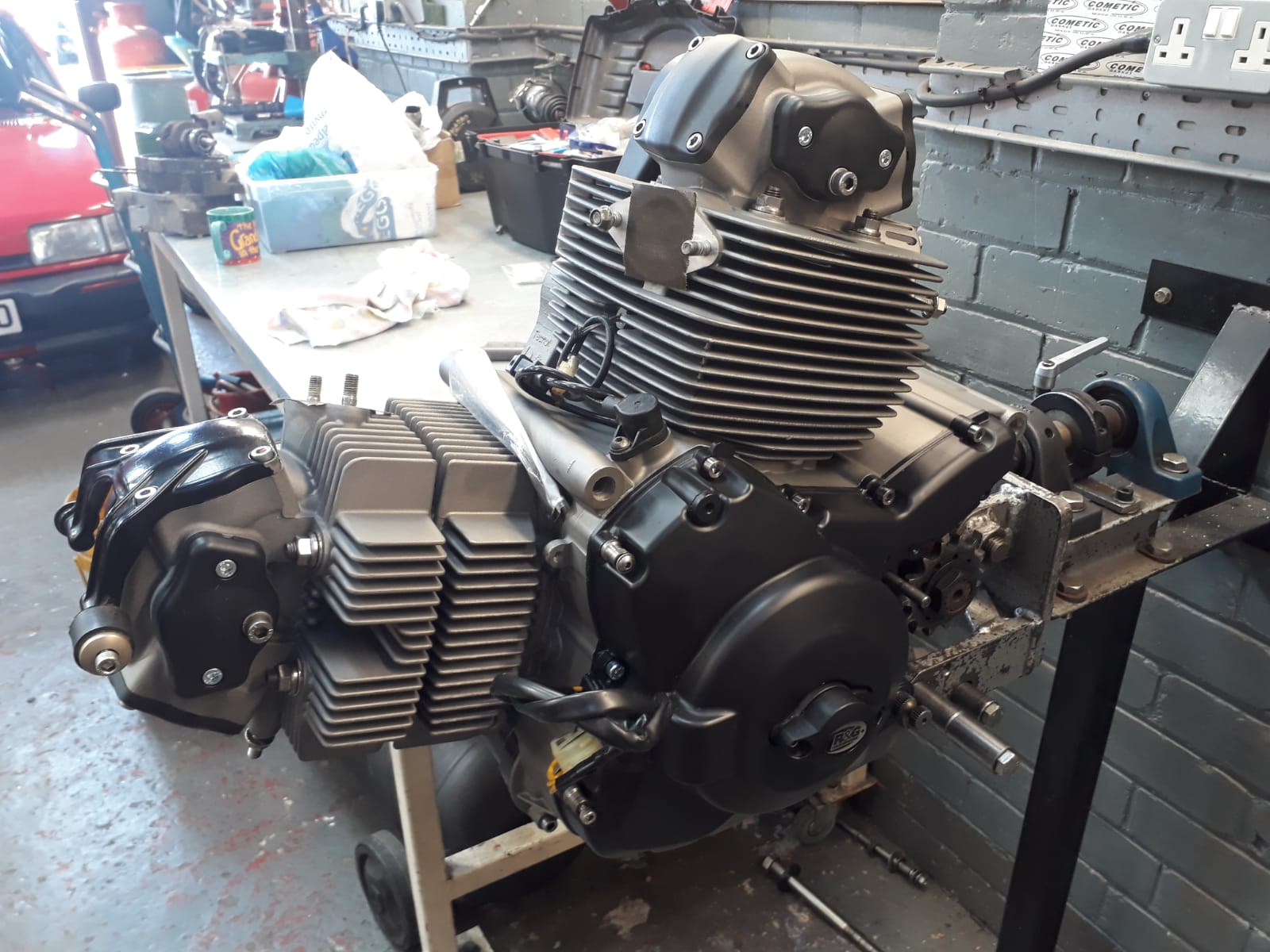

  18. And we're there...all rebuilt and back together...its been off the road night on 4 months...worth the wait...!
    IMG-20180731-WA0009.jpg IMG-20180731-WA0001.jpg IMG-20180731-WA0007.jpg IMG-20180731-WA0008.jpg IMG-20180731-WA0006.jpg IMG-20180731-WA0002.jpg IMG-20180731-WA0003.jpg

    • Like Like x 8
  19. Brilliant, looks gorgeous! :upyeah::motorcycleduc:
