998 Matrix In France

Discussion in '748 / 916 / 996 / 998' started by Guillaume69, Nov 19, 2020.

  1. Yes i”ve seen it, but i am having mine painted in the Original Verde with grey wheels, they are doing Silver stickers for me, but i am having the seat Logos changed from Reloaded to Reimagened. Just can’t wait to get it back now

  2. My god that is a beautiful bike!

    • Like Like x 1
  3. We went for a 2-days bike trip two week-ends ago, in Auvergne, just south-west of Clermont-Ferrand, in France. That’s about 2 hours from us. Trip was organized with our Planète Ducati forum group. High grounds (1000m-ish) so usually damp and chilly in late October. But not this year. This year, fall has been absolutely fabulous, save a couple thunderstorms here and there o_O

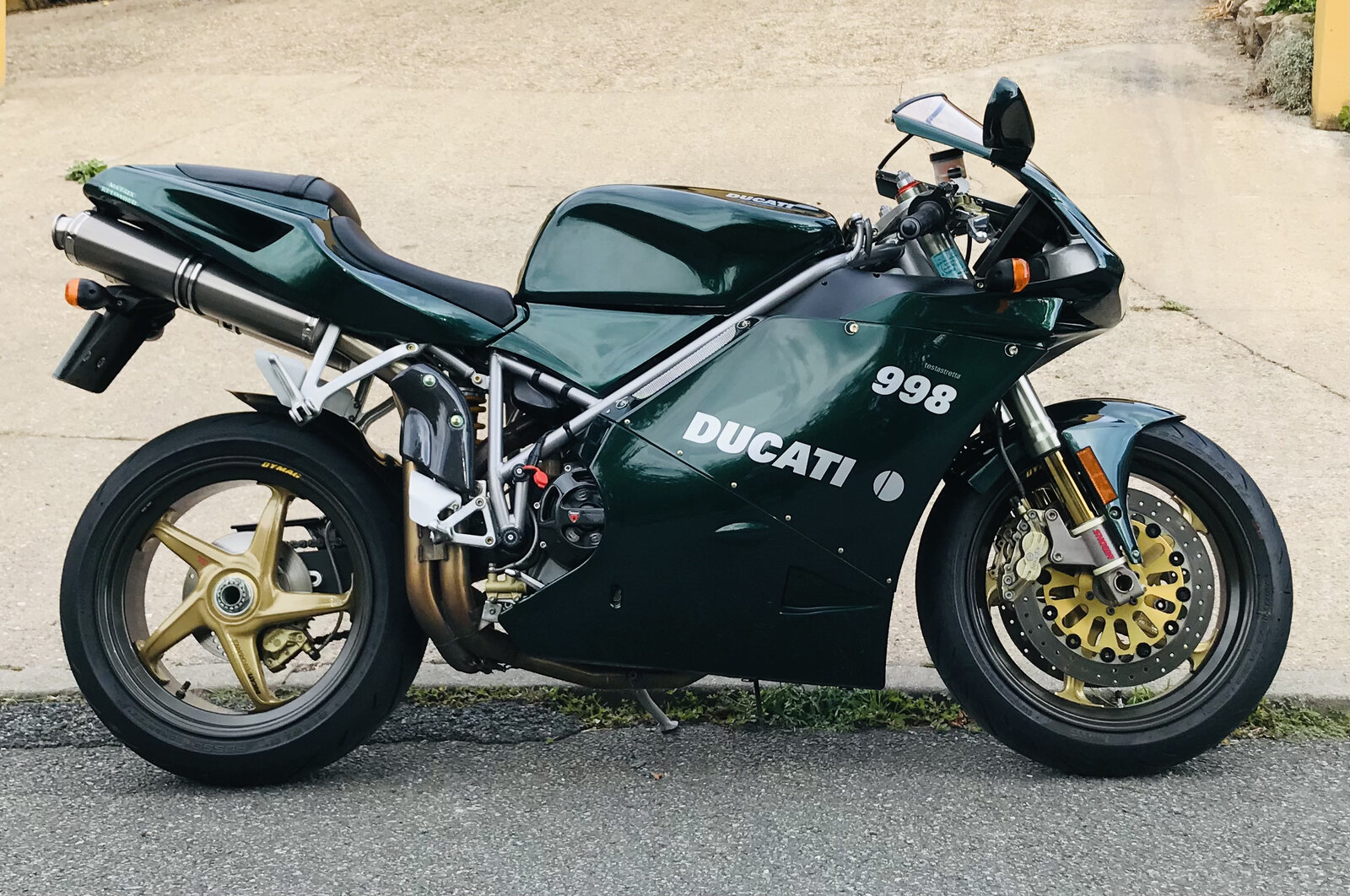

    The Matrix with the Dymag wheels was the perfect bike for this trip. Fantastic feeling all the way!


    It looks like a track, doesn’t it? Well it’s not. It’s just the pass between Chambon-sur-Lac and le Mont Dore, road D36. :D

    • Like Like x 3
  4. Gutted I was unavailable this weekend Guillaume...next time!

  5. June is when our next event takes place. I understand it shouldn’t be too far from you. ;)

    • Like Like x 1
  6. 6AC1C223-8DBD-45DA-882B-0BD193AA30CA.jpeg

    • Like Like x 7
  7. Pop some pix up buddy, I’d love to see it.

    • Like Like x 1
    • Thanks Thanks x 1
    • Thanks Thanks x 1
  8. Thank you!

    As you guessed, I already have this item in my collection. But it’s very nice of you to have posted this link here. :upyeah:

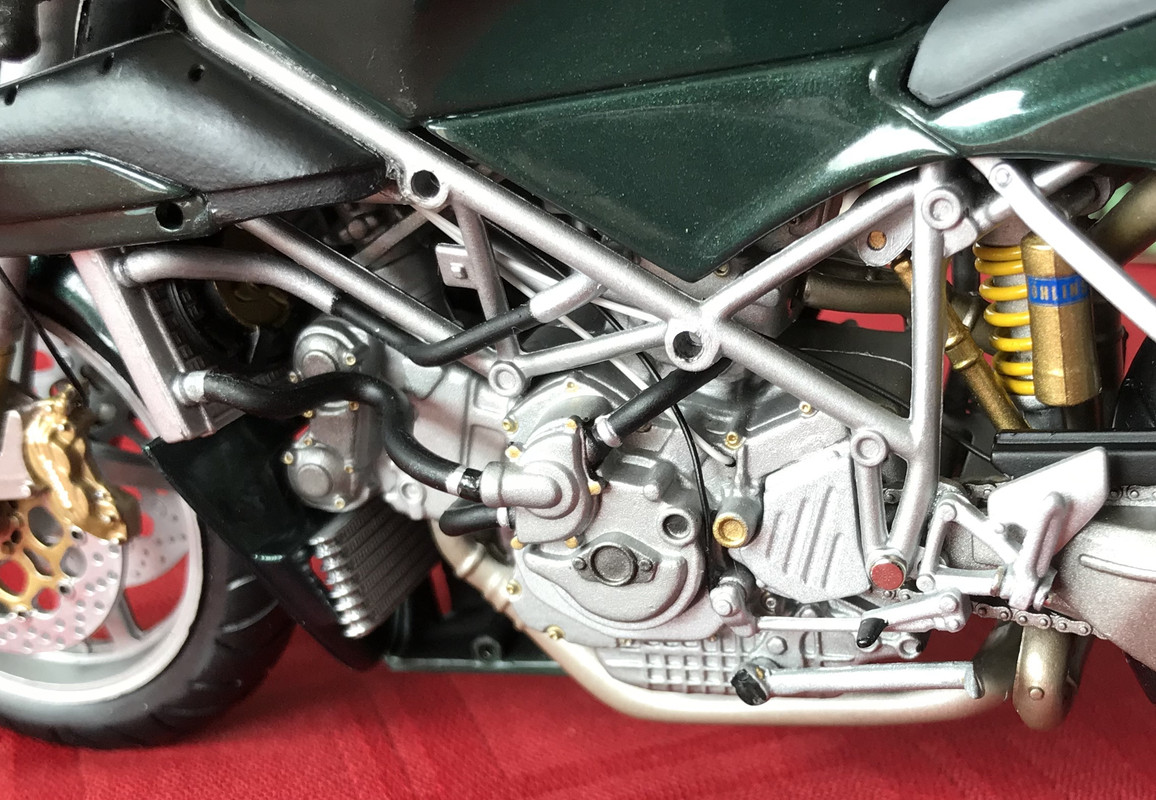

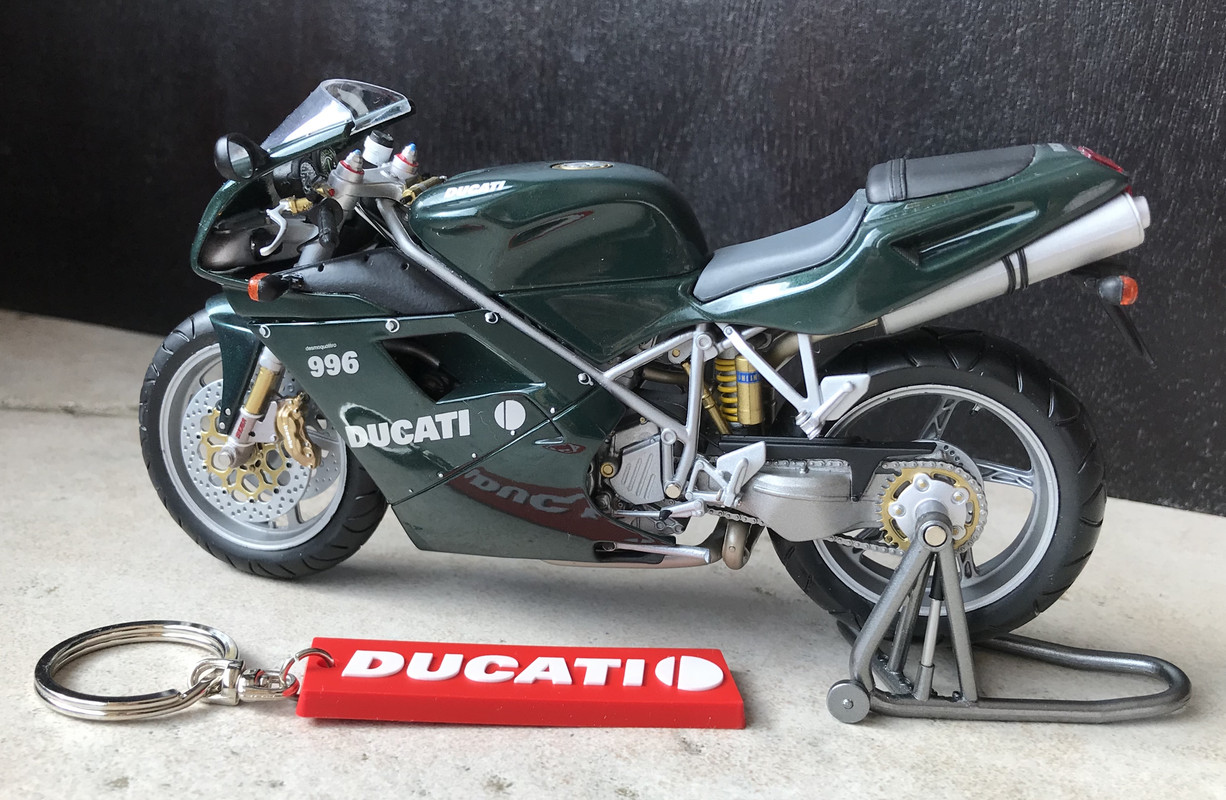

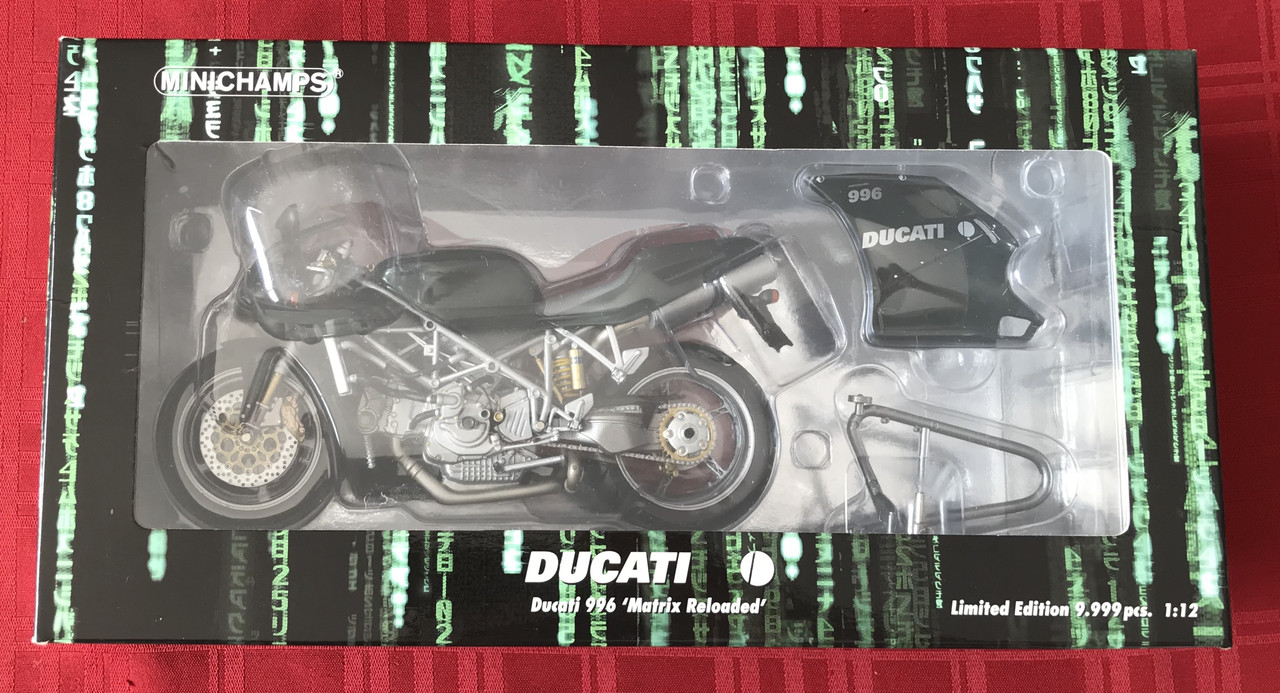

    Now, for anyone interested, this Minichamps 1/12 replica of the 996 Matrix is an absolute beauty. And the one posted above is at a very good price too!

    047F94C7-C6C2-460C-BBDA-D87C67A2929F.jpeg 9A5F33A8-0BFE-44D5-A1D2-D04D92F960AD.jpeg 24C0E53D-027A-4C8F-B6D0-E7DF28773036.jpeg

    Here are a few other « Matrix » items I gathered around this bike. :) 4E21CCDD-C8B9-40A8-BE44-1A3C41E37BD2.jpeg D83366D0-257C-4ECB-8EAE-17AE326F3159.jpeg


    • Like Like x 5

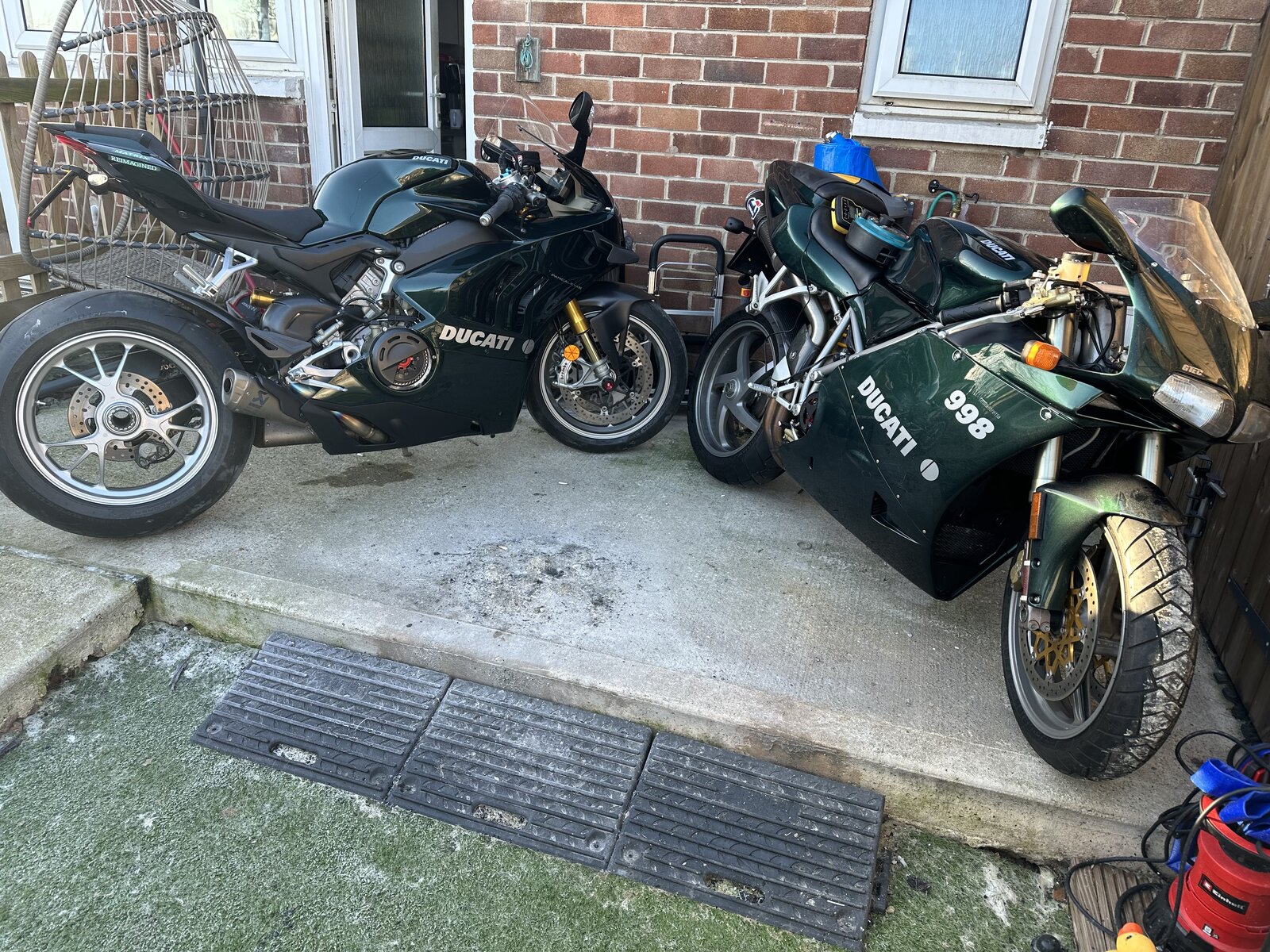

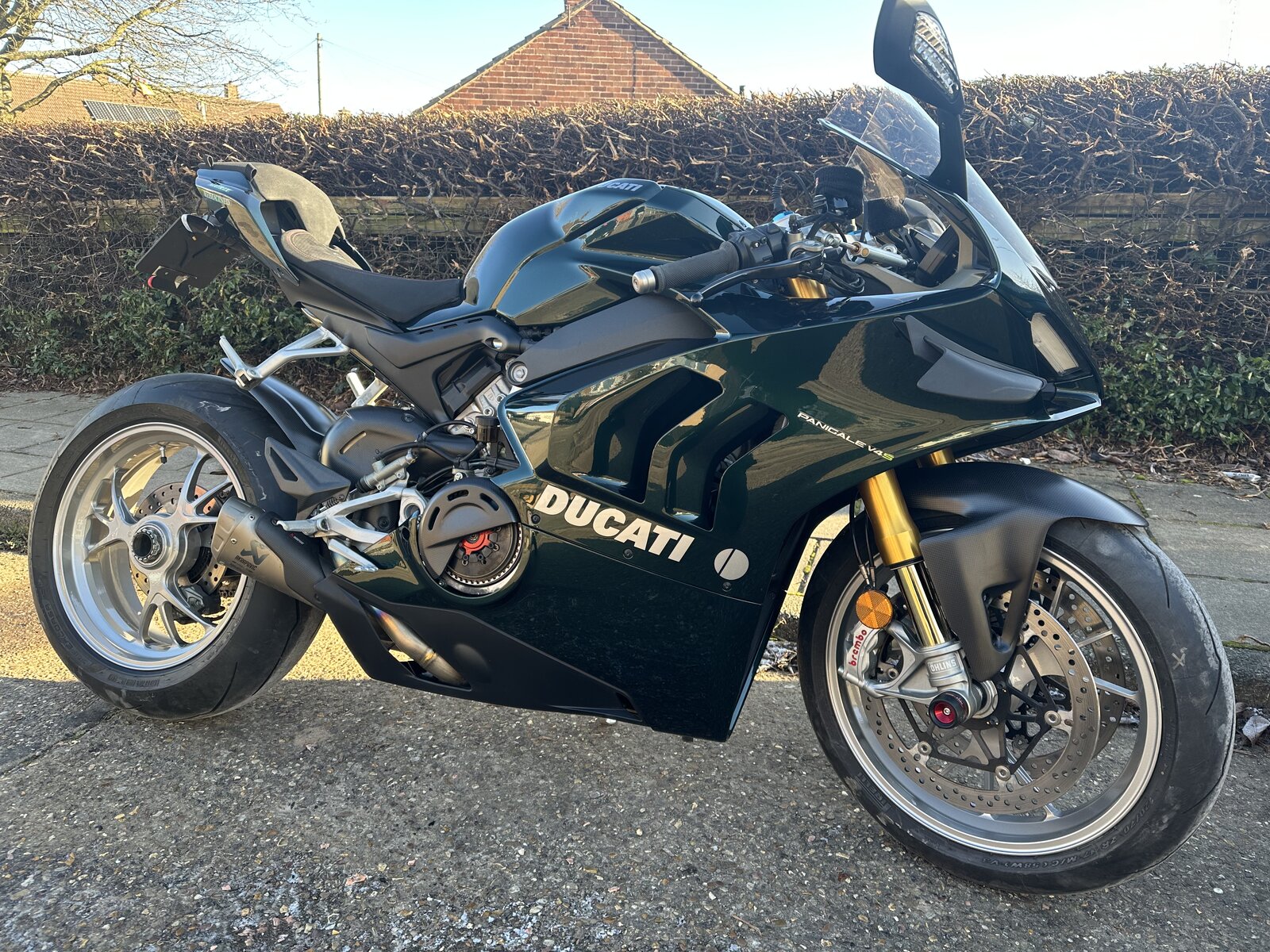

  9. The V4 is back and it makes a great big sister to the 998 91C89BAC-FB12-4BB7-91FE-B600DEA7C4FE.jpeg 124DB817-362E-4022-B6D5-D05B652DA574.jpeg

    • Like Like x 7
  10. Kin ell that key ring is massive.

    • Funny Funny x 2
  11. I successfully connected JPDIAG diagnostic tool on the Matrix today. First time user as I have a Mathesis for the 916.

    After reading A LOT about how JPDIAG should be set up and used to work properly on the dedicated forum:
    https://jpdiag.xooit.eu/index.php

    I pulled the trigger on the LONELEC cables:
    https://www.lonelec.com/product/guzzidiag-3pin-interface-cable-kit/

    Downloaded the JPDIAG software (v.28):
    http://jpdiag.akress.com/download.php

    Read some more and…

    Voilà! :D

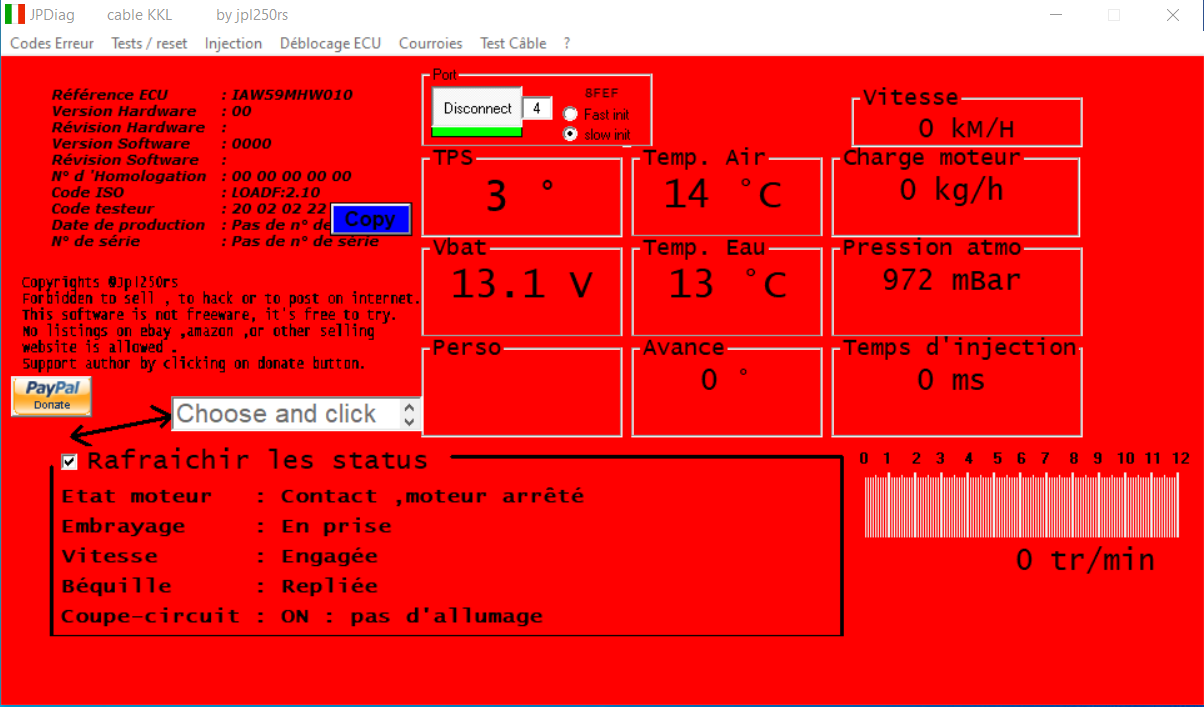

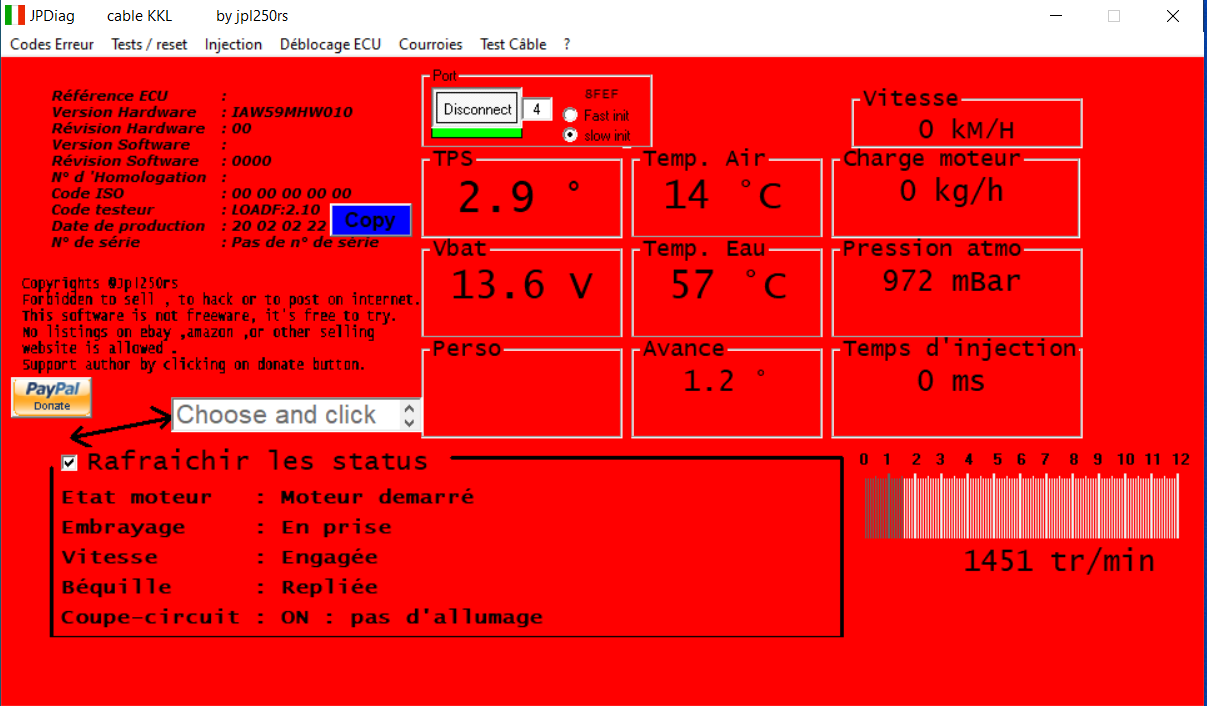

    Engine OFF: 30CA8D29-4825-49B8-8447-D59E81B704B3.png

    Engine ON:

    I have to say I am really happy it worked at my first attempt, as the reading of others misfortunes can be rather discouraging…

    I had a blast starting the fuel pump or the fans from my laptop, fiddling with the rev counter needle, visualizing the TPS degrees move as I turn the throttle, and so on. You know…

    Now, on to (non-linear) TPS (manual) reset, cylinders synchro and CO adjustment (aiming at 5%). I’ll be following Brad Black’s check list, like I did on the 916. Worked a treat!

    http://www.bikeboy.org/998748rthrottleb.html

    • Like Like x 3
  12. All done! :upyeah:

    TPS zero’d out perfectly so I didn’t have to mess with it. The master idle crew (horizontal cylinder) was too tight with 2.9 degrees, which kept a rather high idle (1400 rpm). I set it back down to 2.3 as recommended in the shop manual.

    I then synched the two cylinders. Access to the set-up elements is significantly more difficult than on a 916. You really want to select your tools and try things before putting the air box and tank back on. And have a telescopic magnet handy! Access to the throttle linkage balance adjustment screw is stupid, when compared to the 916 throttle body.

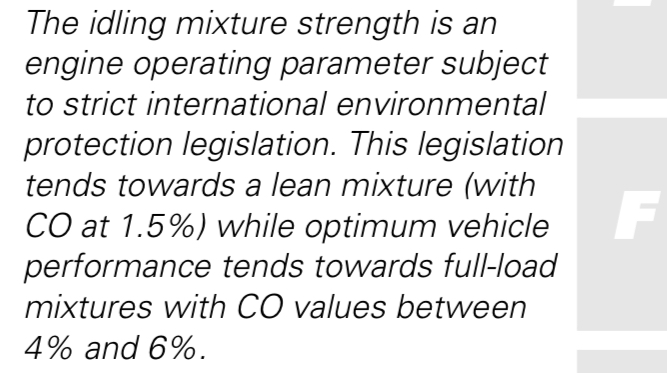

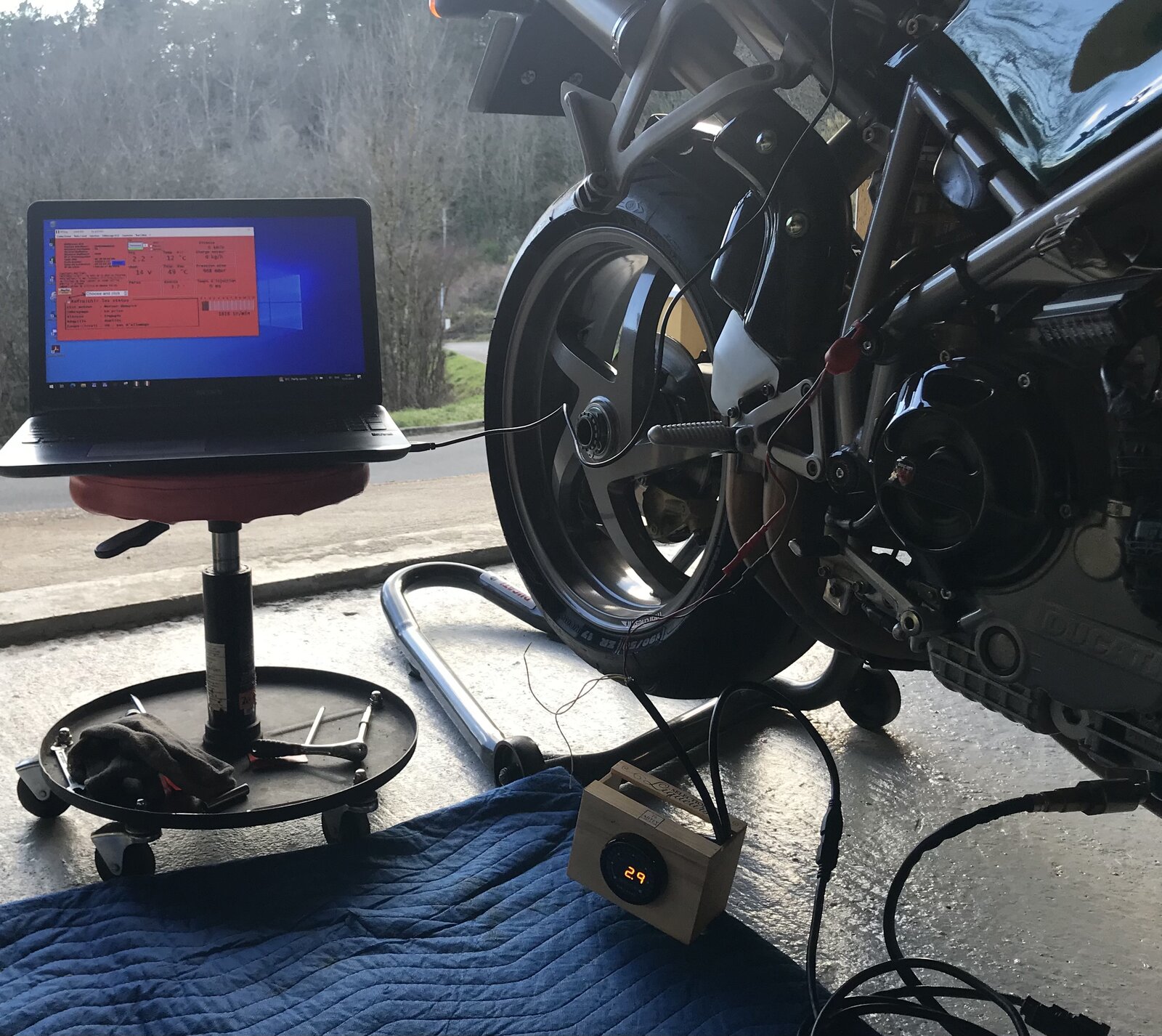

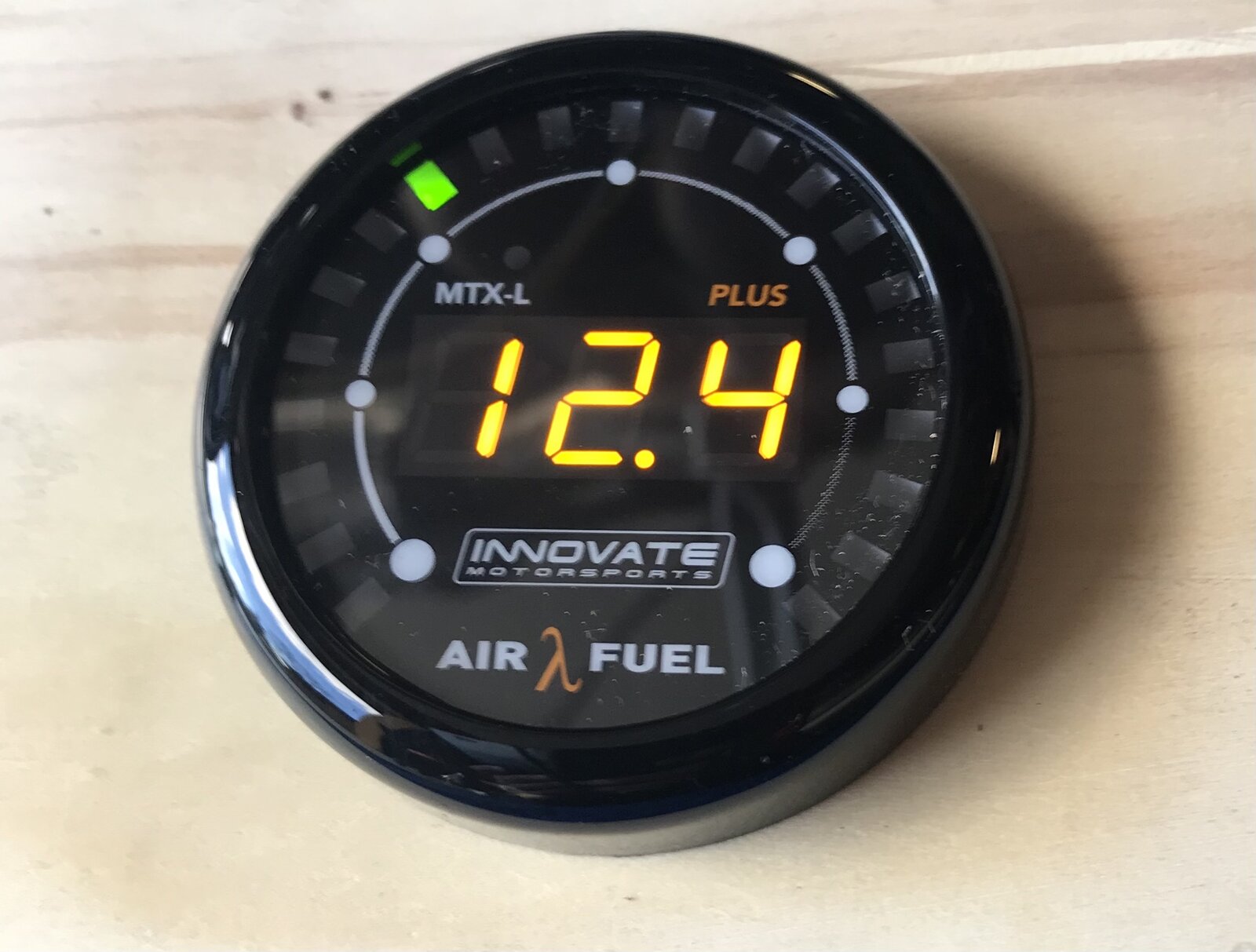

    With that done, I hooked the bike to JPDIAG and to my AFR gauge and I set the CO to a good 5.5% (12.4 AFR), which is richer than the factory setting but better for engine performance. Here’s how it is explained in the workshop manual:


    I really had a blast doing all this!



    • Like Like x 2

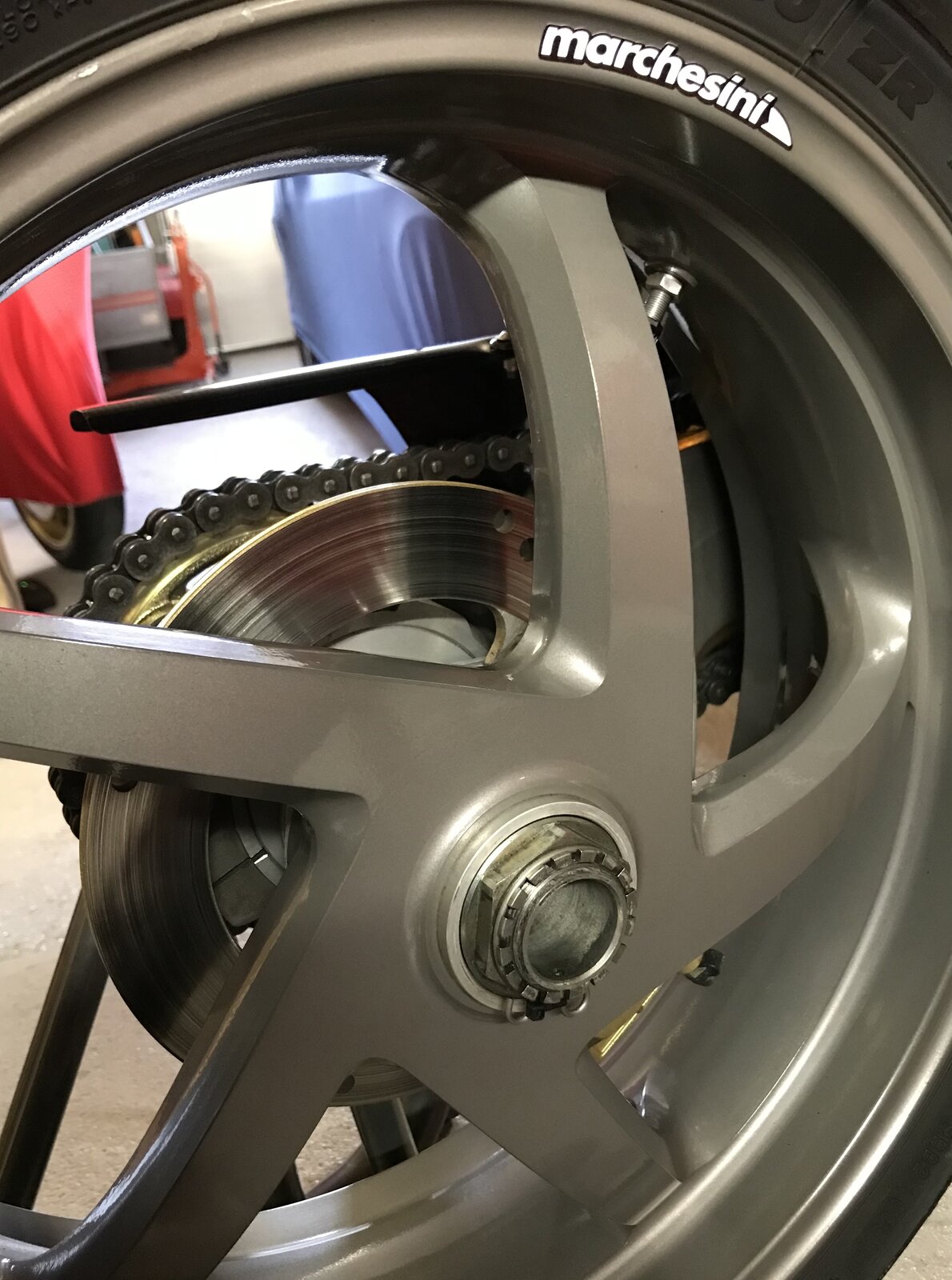

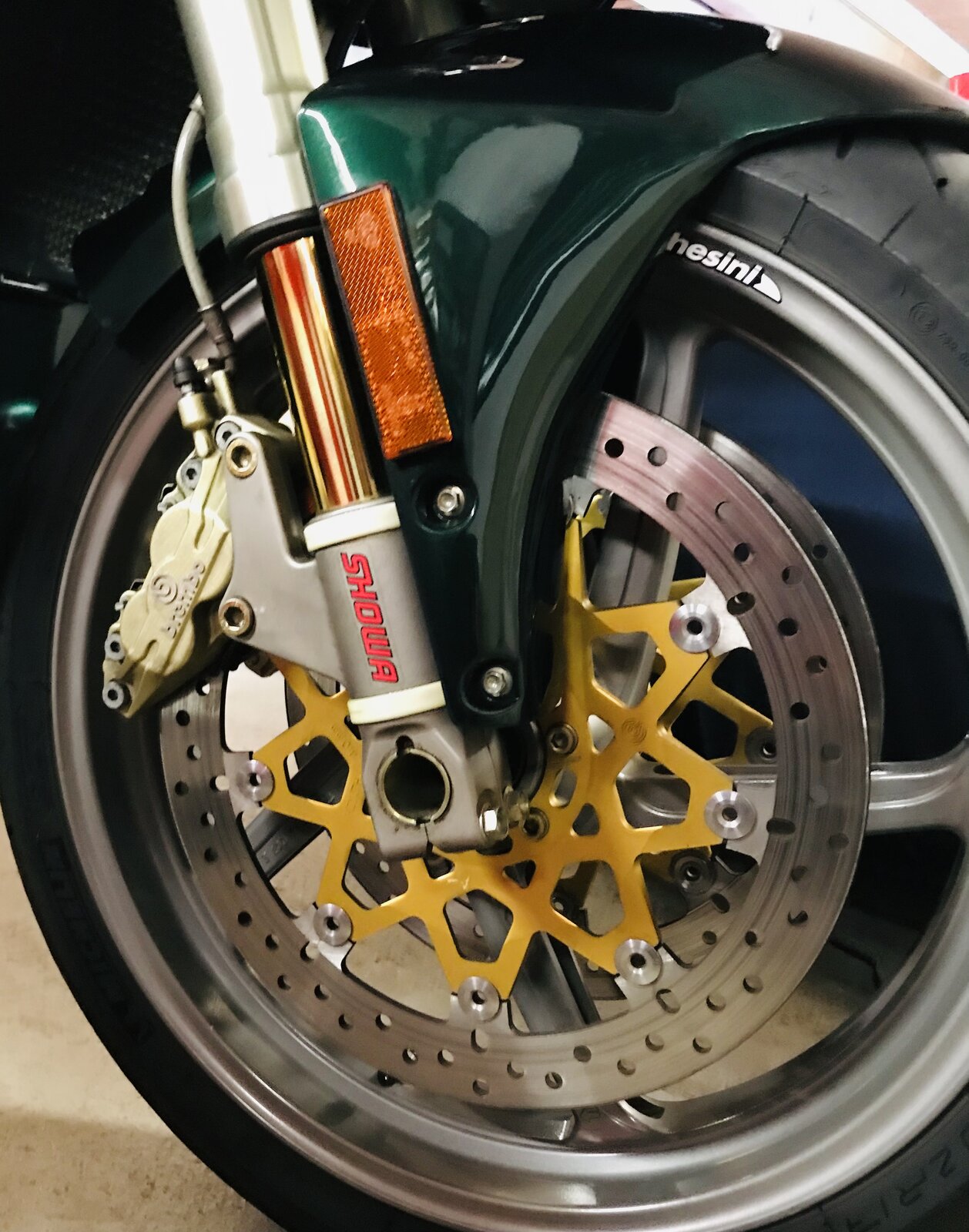

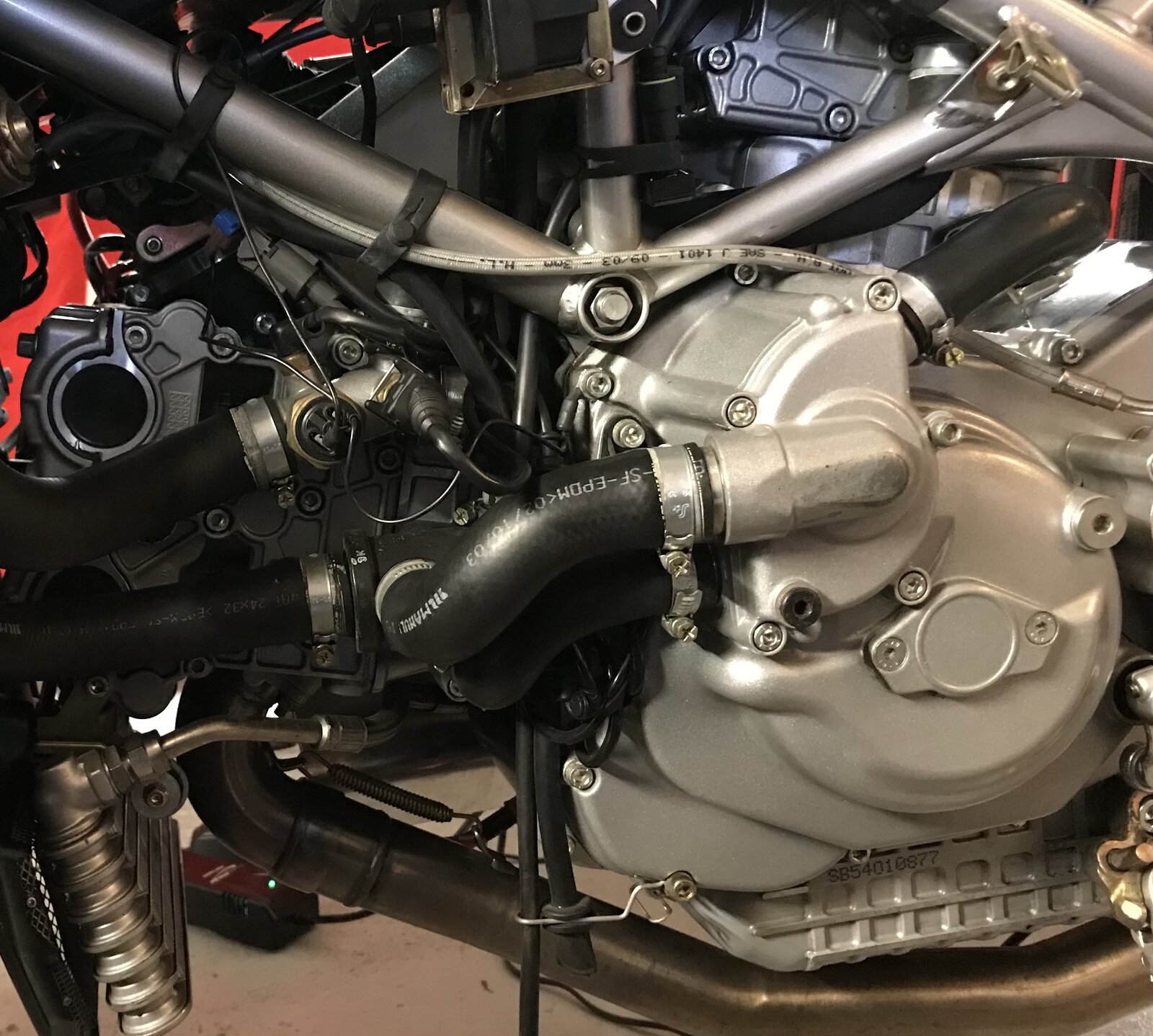

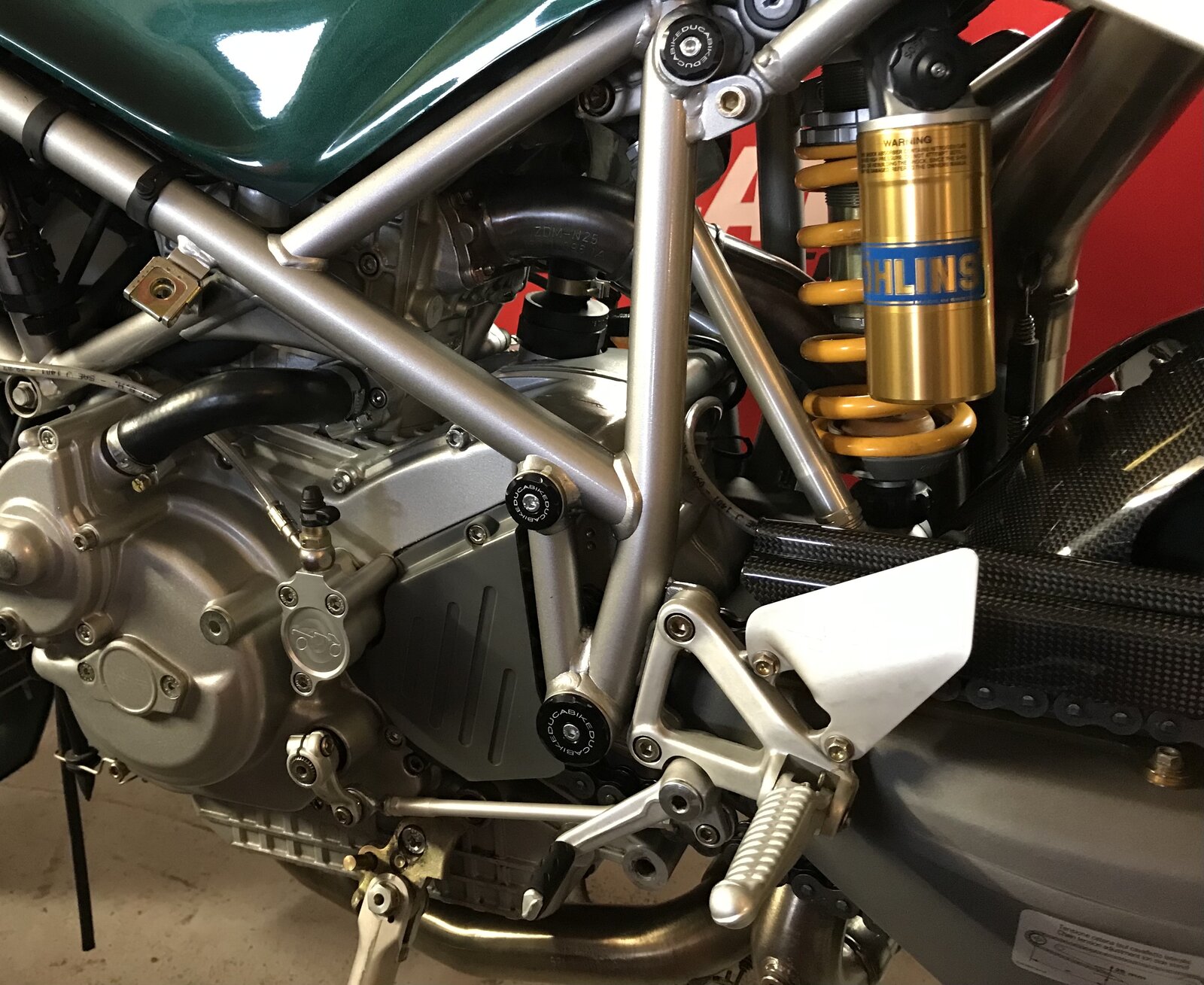

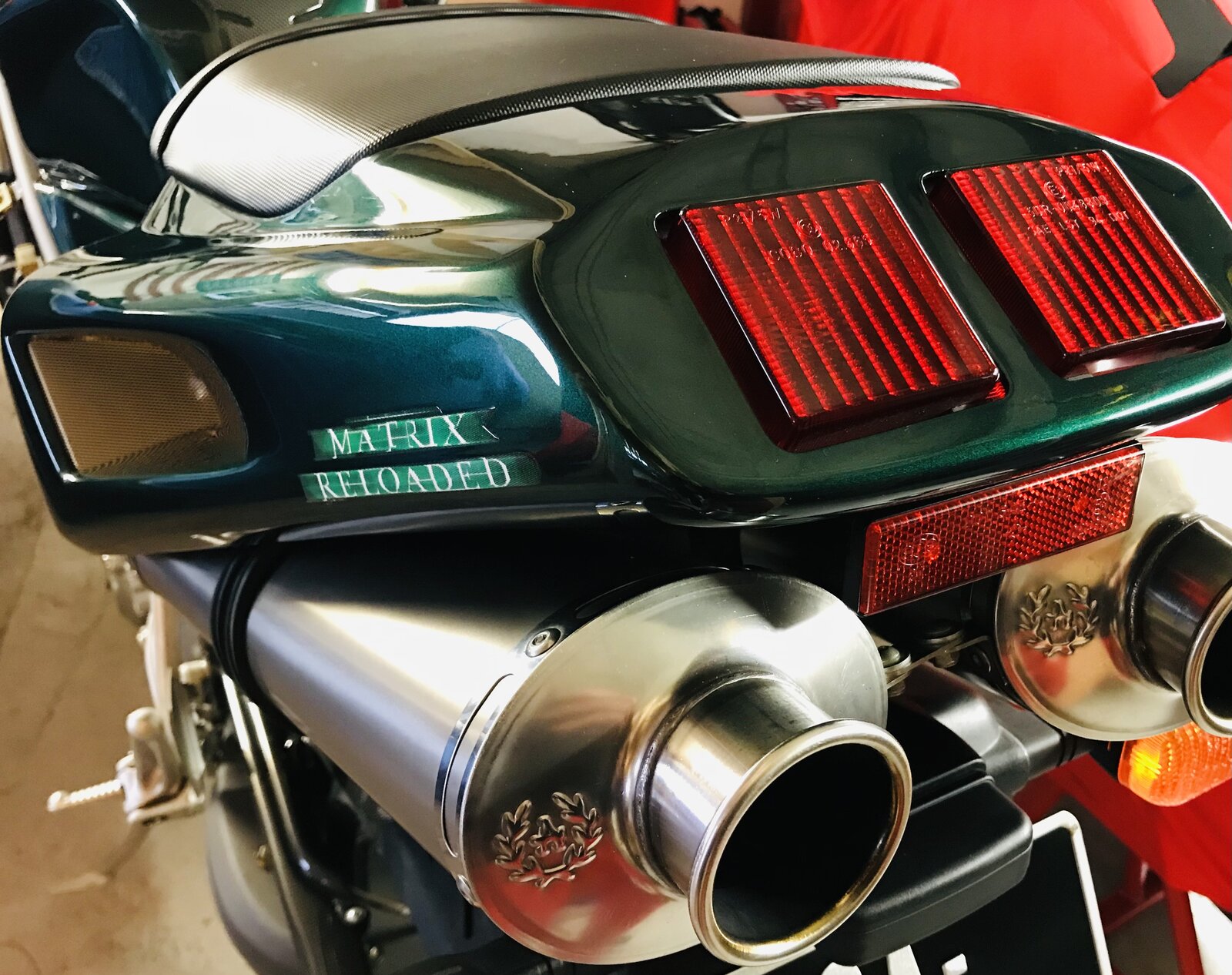

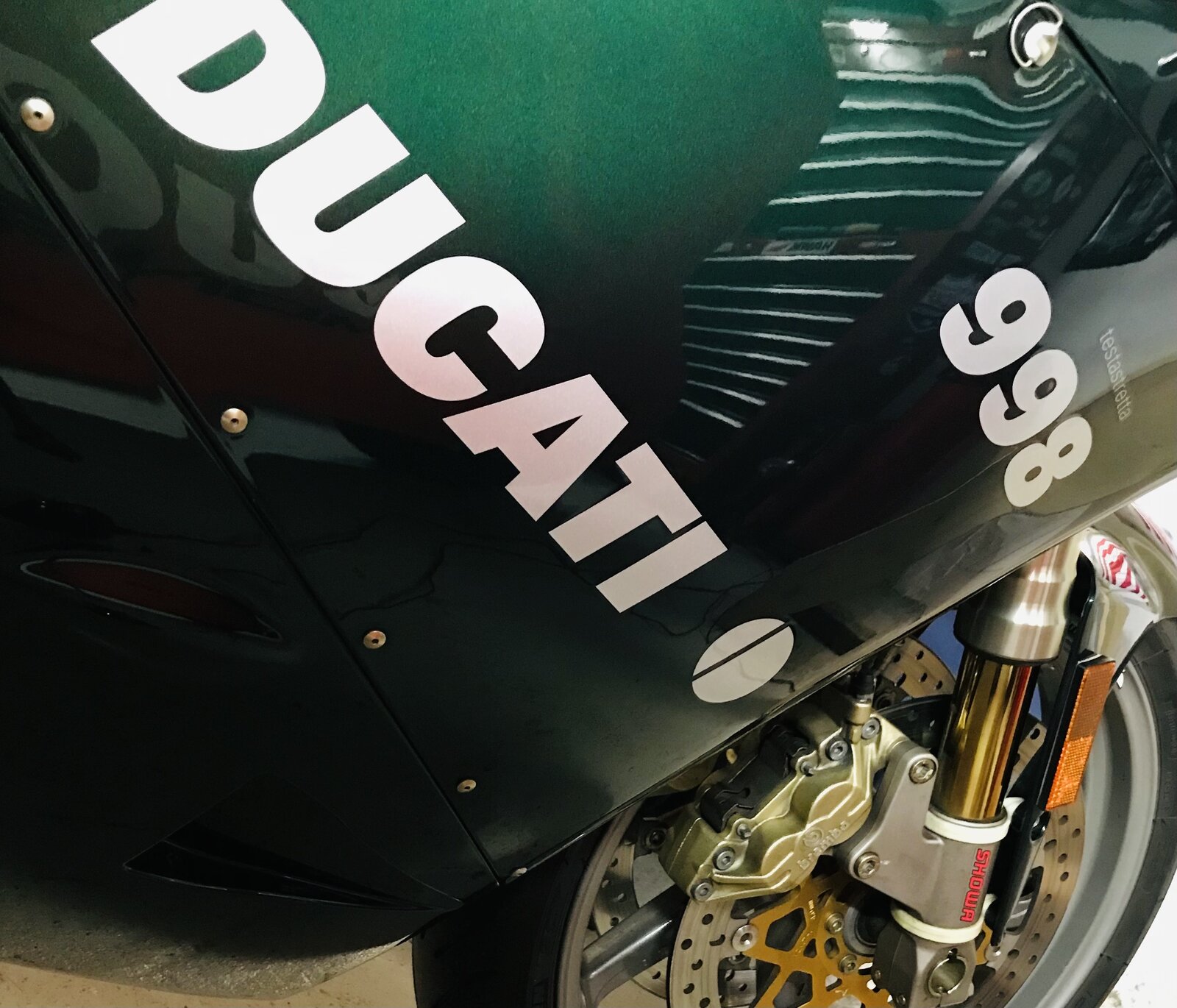

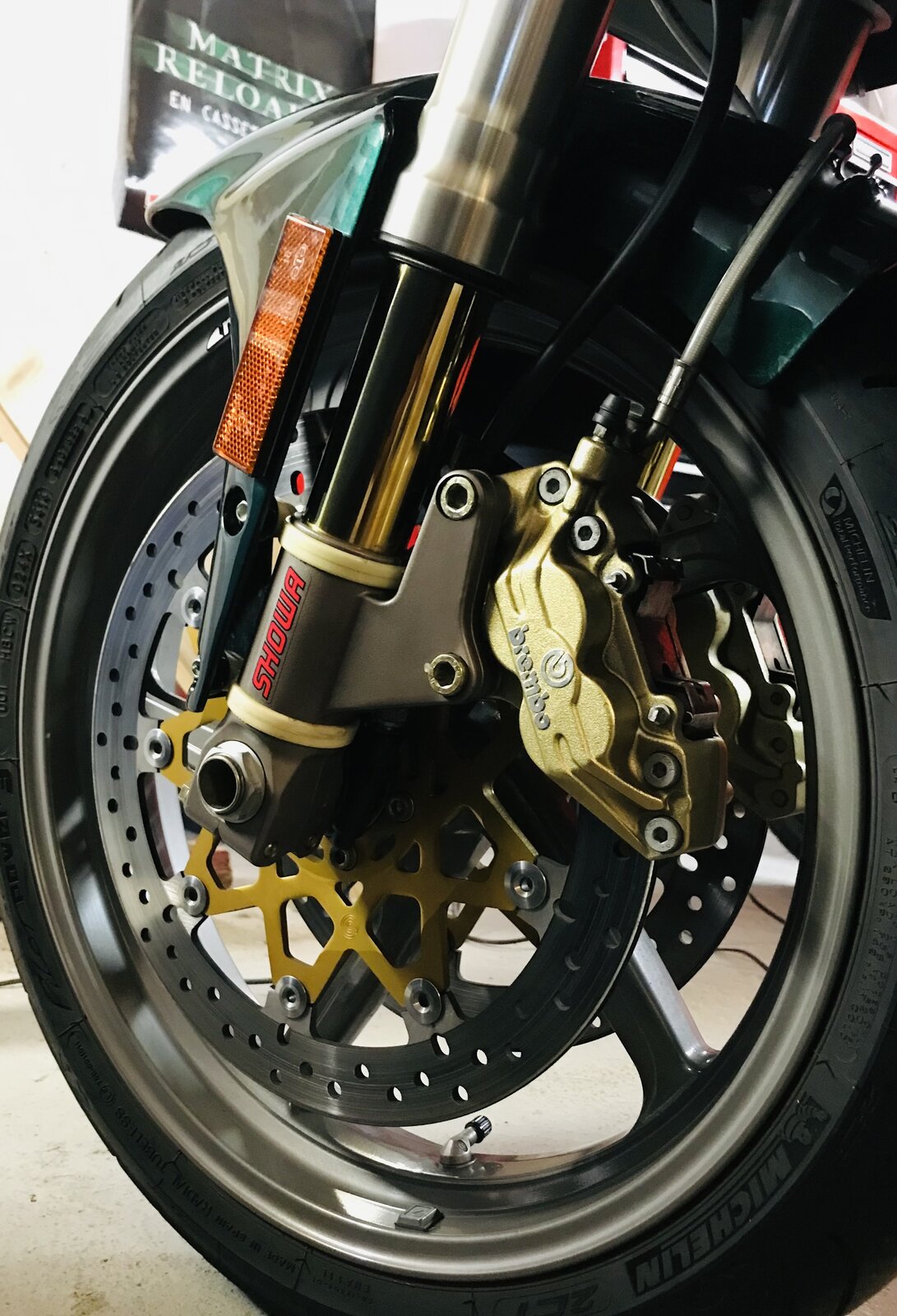

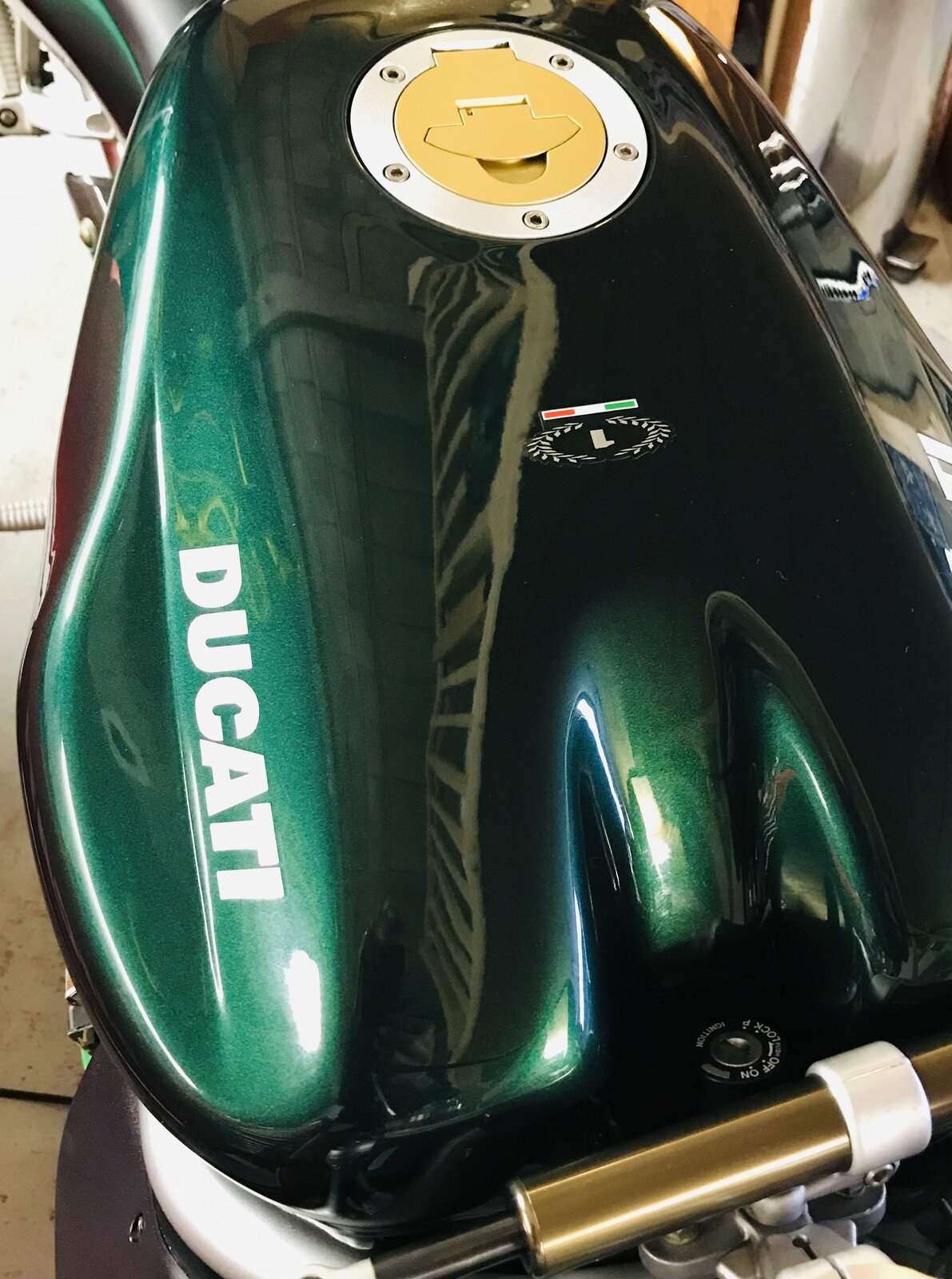

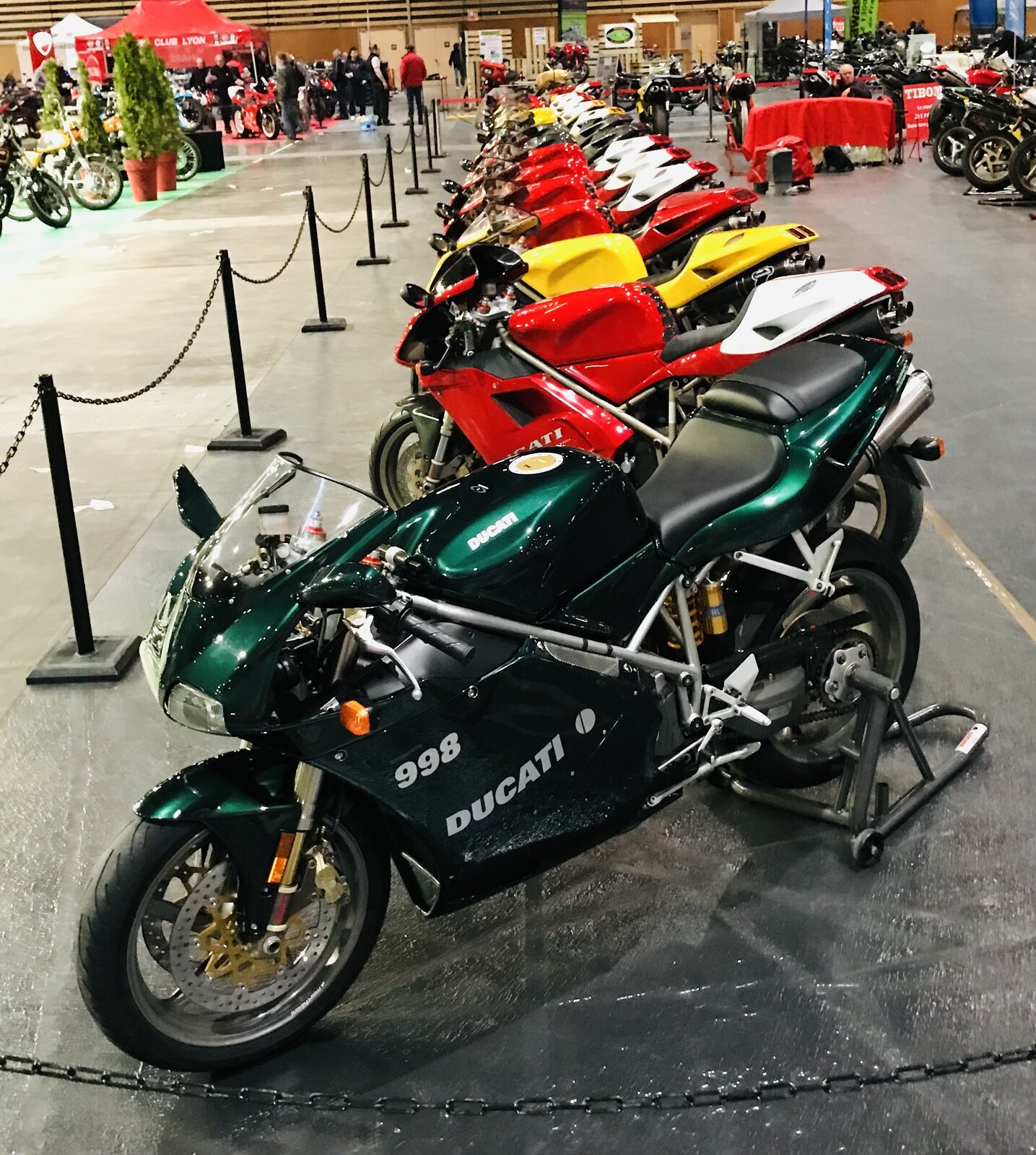

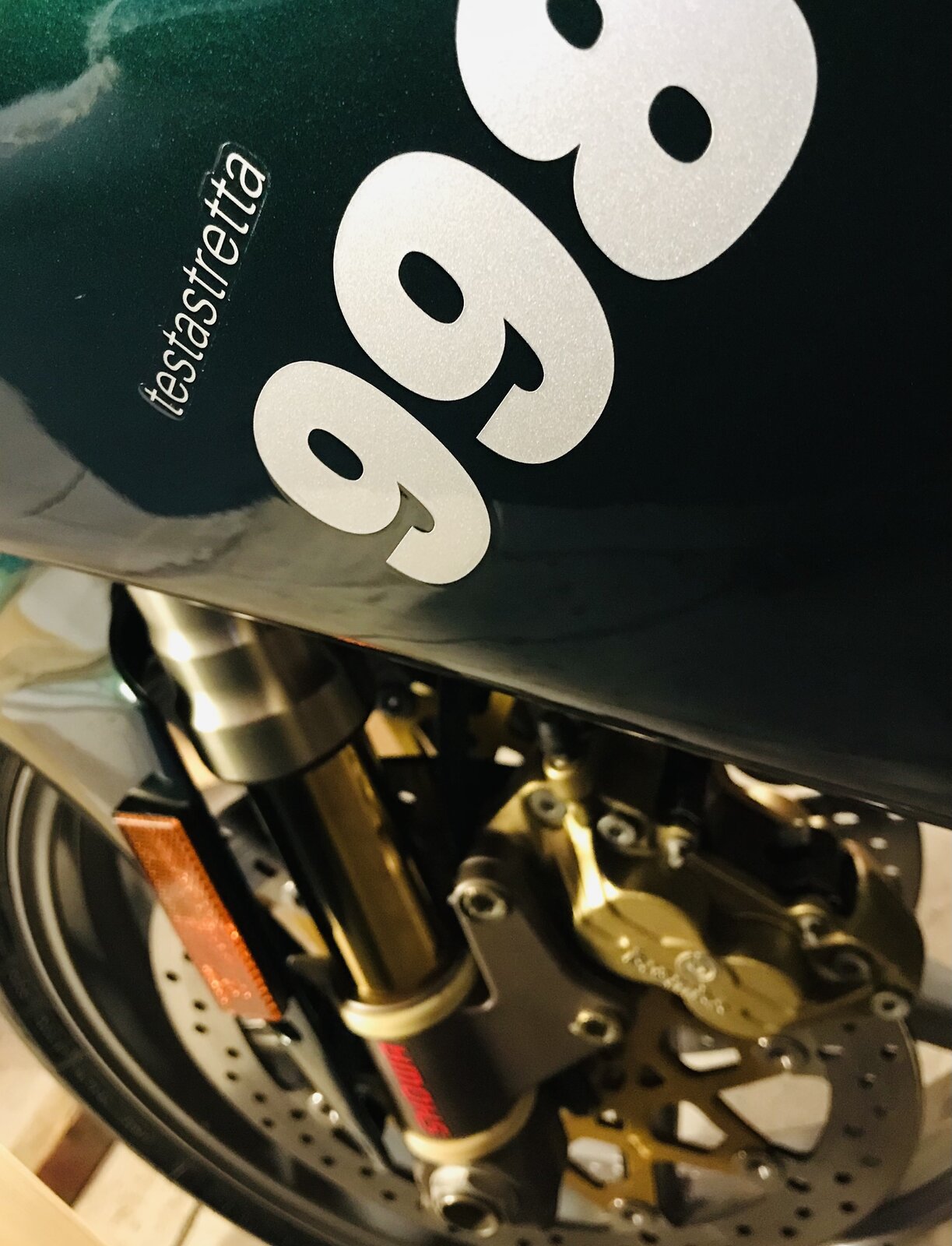

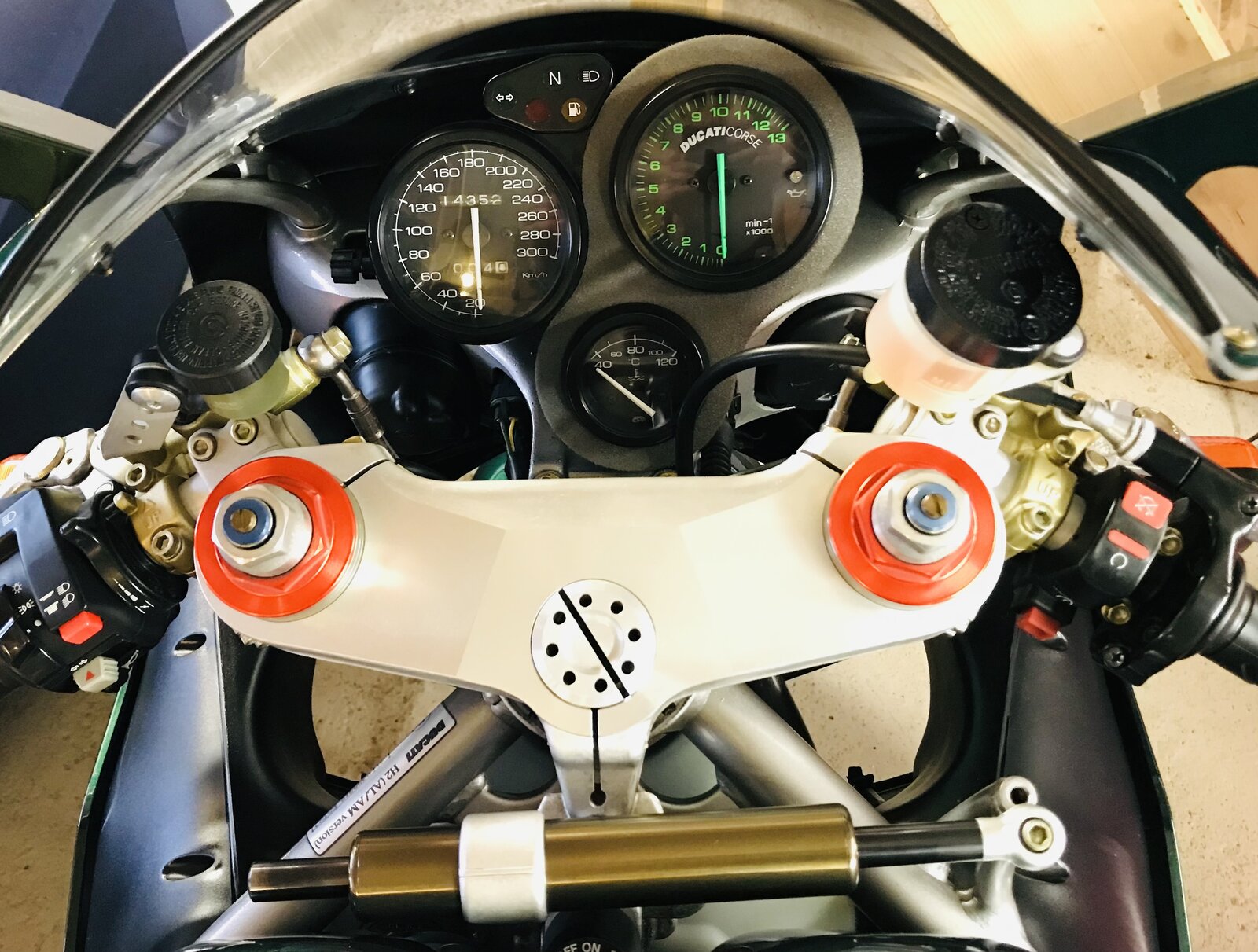

  13. Went for a ride yesterday afternoon. Super happy with the injection settings. Now just as her great sister (916), this bike will be exposed on a dedicated Tamburini stand next weekend at the Salon moto in Lyon. I gave it a good clean before it goes and couldn’t resist taking a few detailed pics.

    AA9A7109-1D87-4DCD-998A-BD5857B50DDE.jpeg 15B062E6-541E-4C35-9E92-17B56EEF60BA.jpeg 038EFD50-4566-4226-98E2-1C8F12C75915.jpeg CBB85ECC-BCE9-491A-8A0F-3A10034F8331.jpeg 7057C280-CE83-40C1-9B2C-06A327BB4704.jpeg A0493562-AED1-4EF4-B31B-4CDC7BE76C6E.jpeg B45ED9B9-9D06-4022-BA75-2B0650F1301D.jpeg B3E6F3A0-E6C4-447E-80AC-578C23124D40.jpeg 681FDBBA-277B-488D-BD6C-B8A60AE01E50.jpeg 8AA59CC6-177A-437C-BD65-2C3531B5B551.jpeg 115DAAEE-3152-4C7A-89CE-C7E3E1BA58D2.jpeg

    • Like Like x 5
  14. Beautiful Guillaume.

    • Thanks Thanks x 1
  15. Immaculate, it makes me realise how much mine needs detailing

    • Like Like x 1
  16. That color. It has to be faster than red (and yellow, of course…)


    • Like Like x 3

  17. Looks fabulous but it’s giving my mild OCD nightmares pointing the wrong way :)

    • Funny Funny x 4
  18. Only when ridden by Carrie-Anne Moss.

    • Like Like x 2
    • Funny Funny x 1
