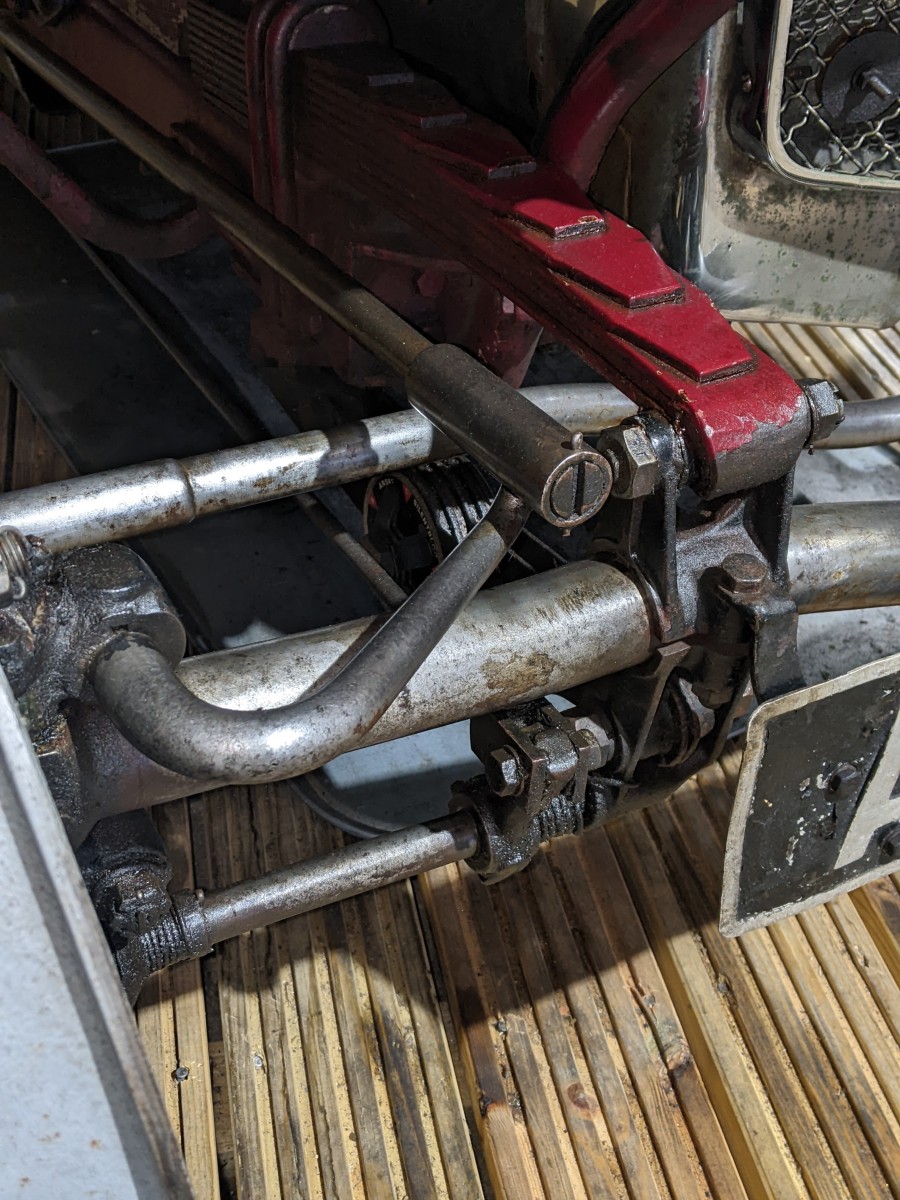

  10. See if you can figure out how this suspension set up works...



    • Like Like x 2

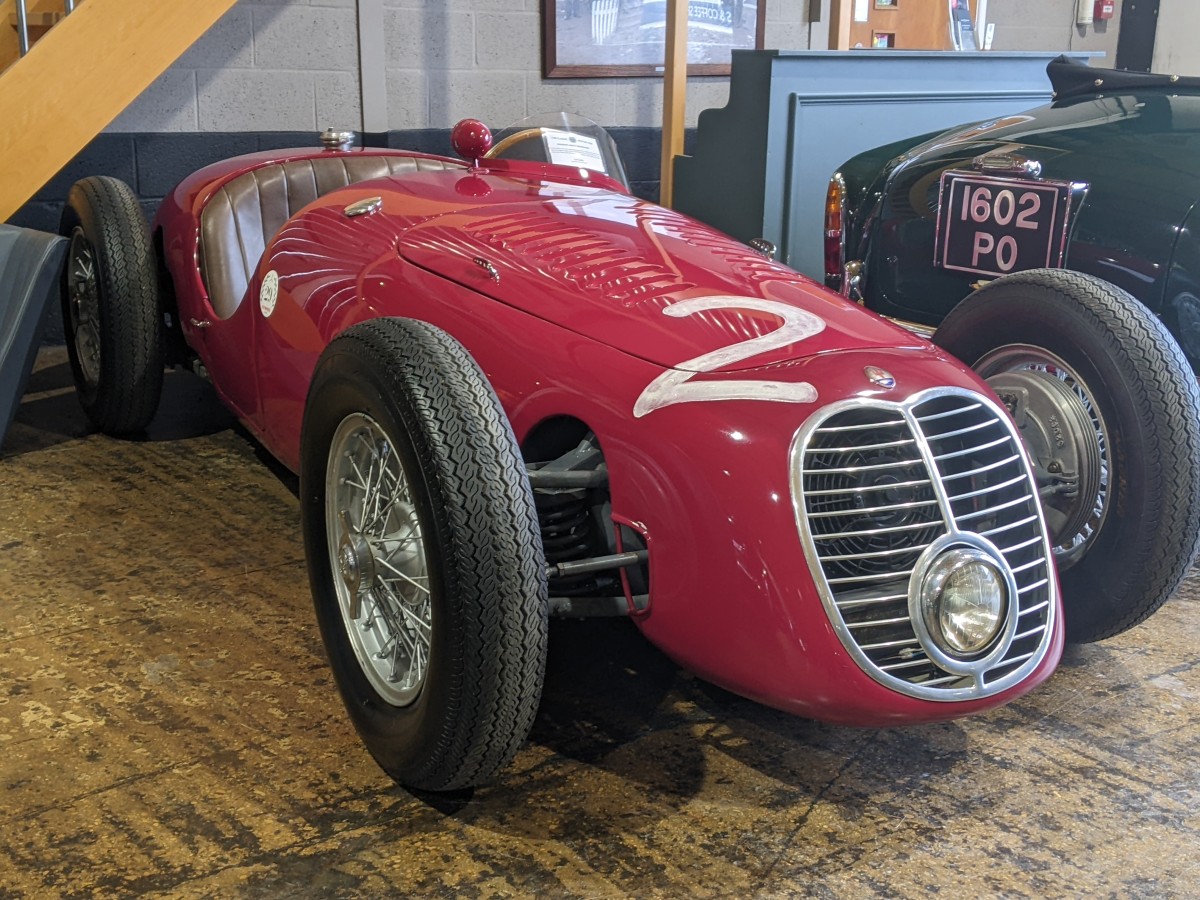

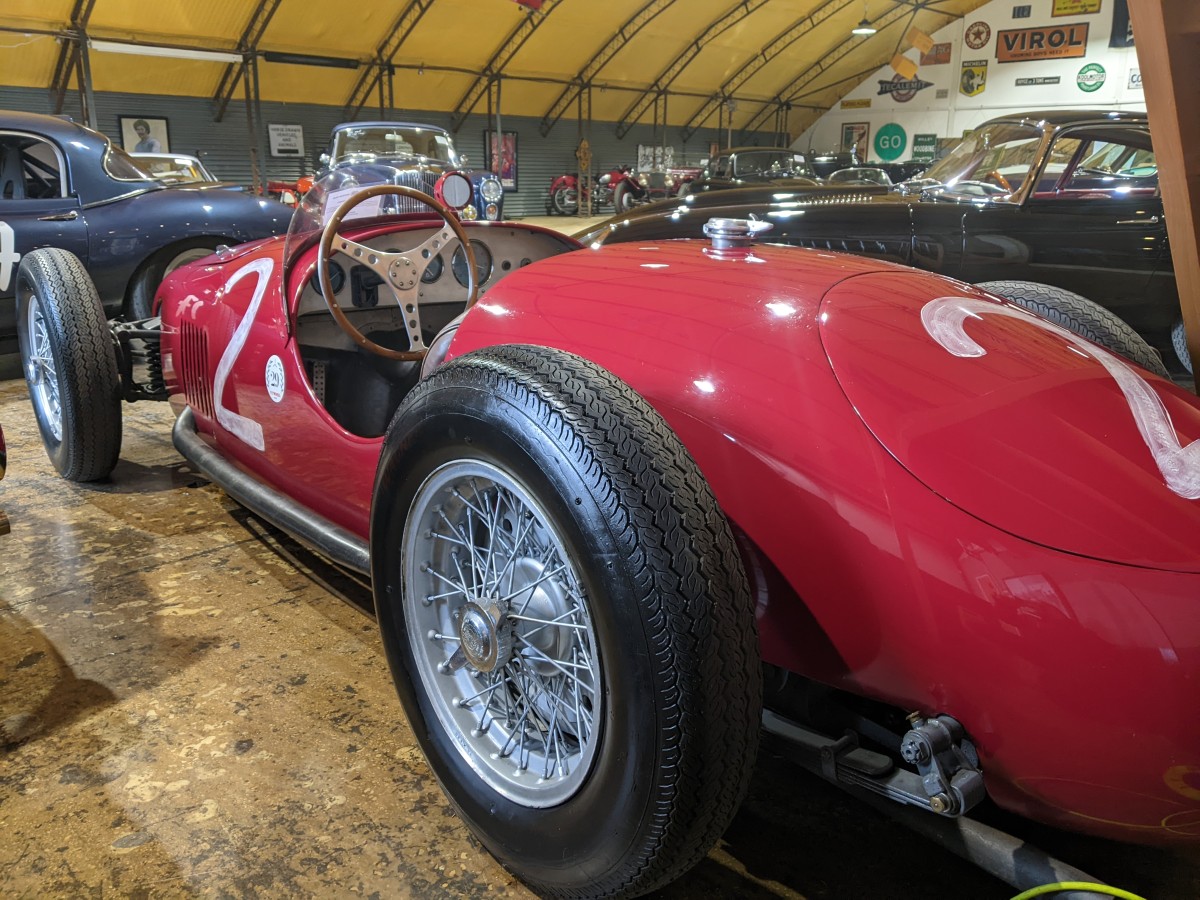

  11. maserati1.jpg



    • Like Like x 4
  12. Leaf springs and friction dampers... or am I missing something?

  13. Possibly not but I can't say I've seen such a set up before. In addition to only using half a leaf spring I can't figure out why the wheels are linked by two solid bars. They can't be both anti-roll bars.

    And what is the linkage/mechanism underneath the larger bar in the second photo?

  14. [​IMG]

    • Like Like x 5

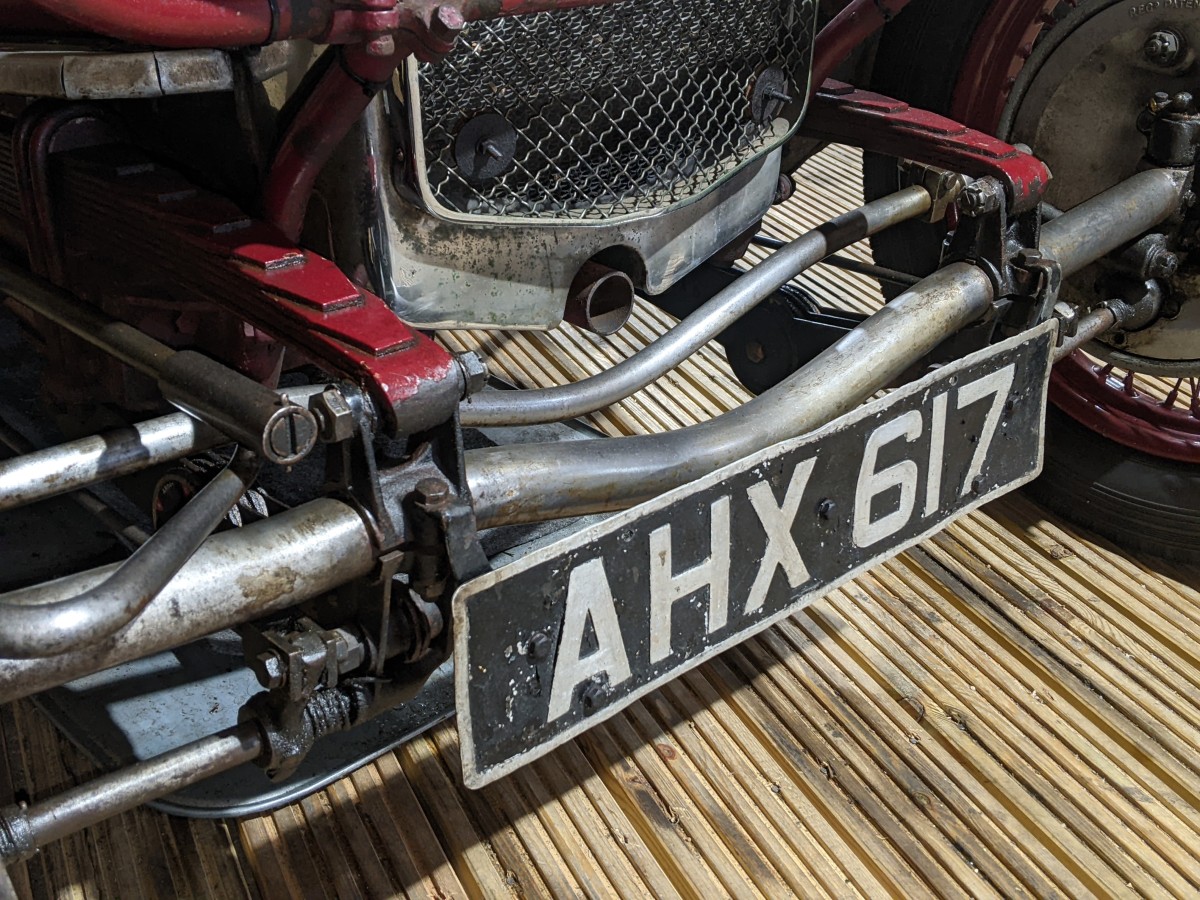

  15. I think that the swan-necked rod (front and centre in pic #2) connected to the rod running alongside the body is the primary steering turning the off-side wheel. The thicker bar curving under the rad connected to the offside wheel is the steering link from the near-side wheel. The ones under the main axle are tie-rods.
