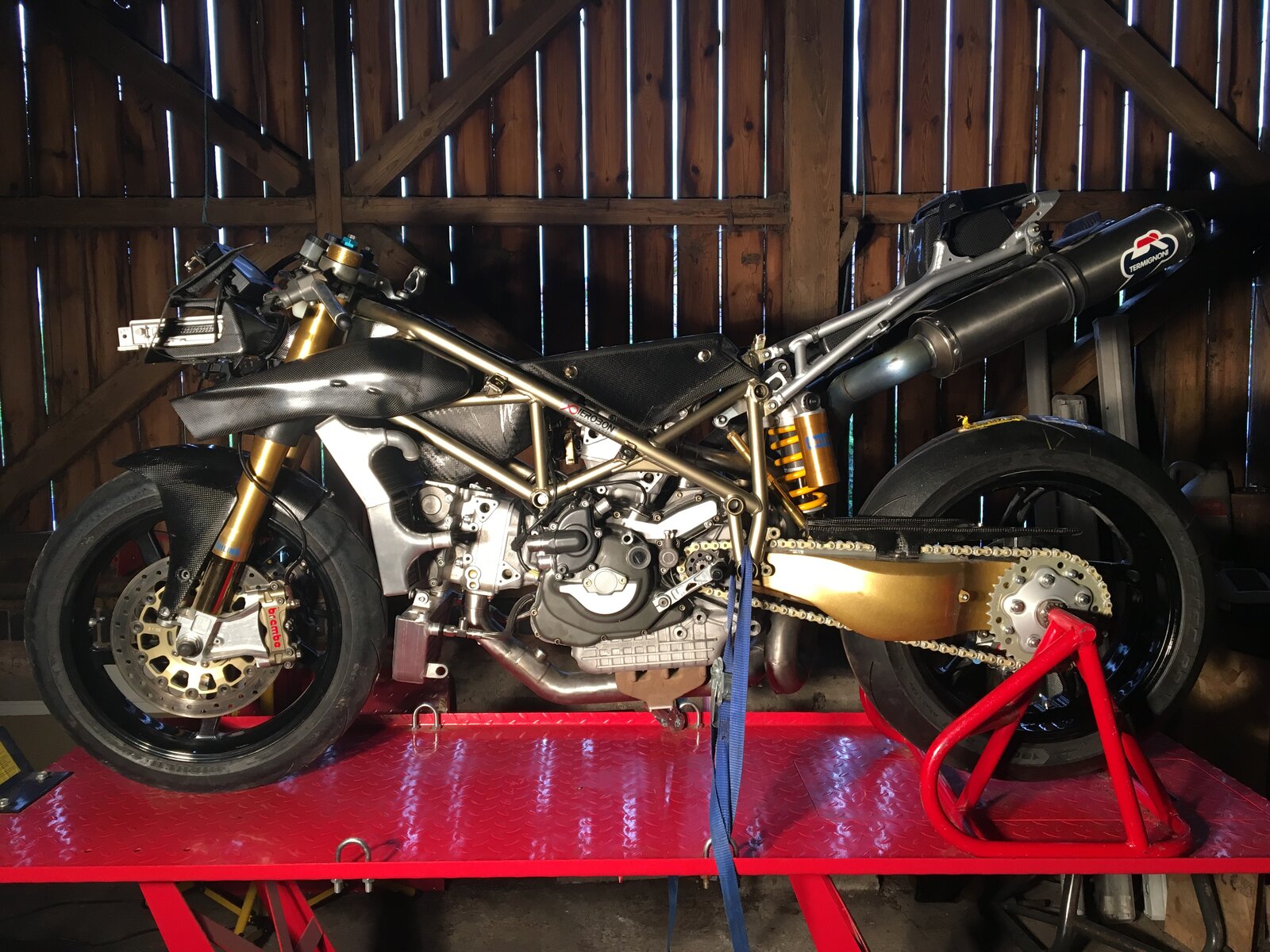

This Years Project -- 2000 996 Road / Track Bike

Yes thats the setup on race heads.
They are customer corse heads with 39mm ti inlets and 33mm exhaust.

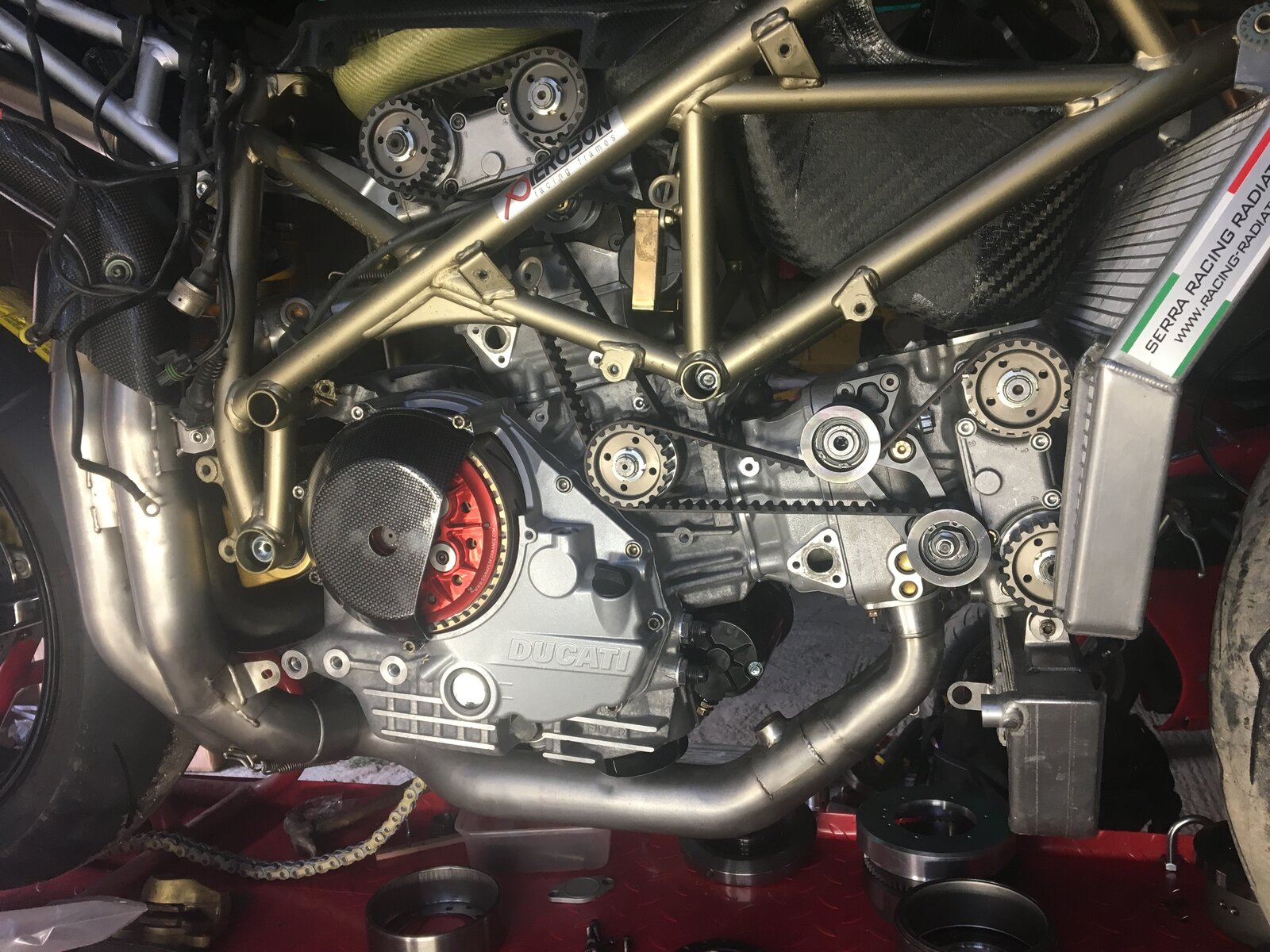

Cams are 471 with 20 tooth pulleys and wide belts hence no covers.
Compression ratio is aprox 13.5:1



I have the original frame and will inform DVLA that its been done and offer the new frame No to see what they say.
Alternatively it will go onto a 'Q' plate but initial conversation with Swansea suggests the original reg will be retained. Either way its going to be a track bike first and foremost
The belts wil be left uncovered same as the race bikes.



Hi and welcome, quite new to the forum myself.

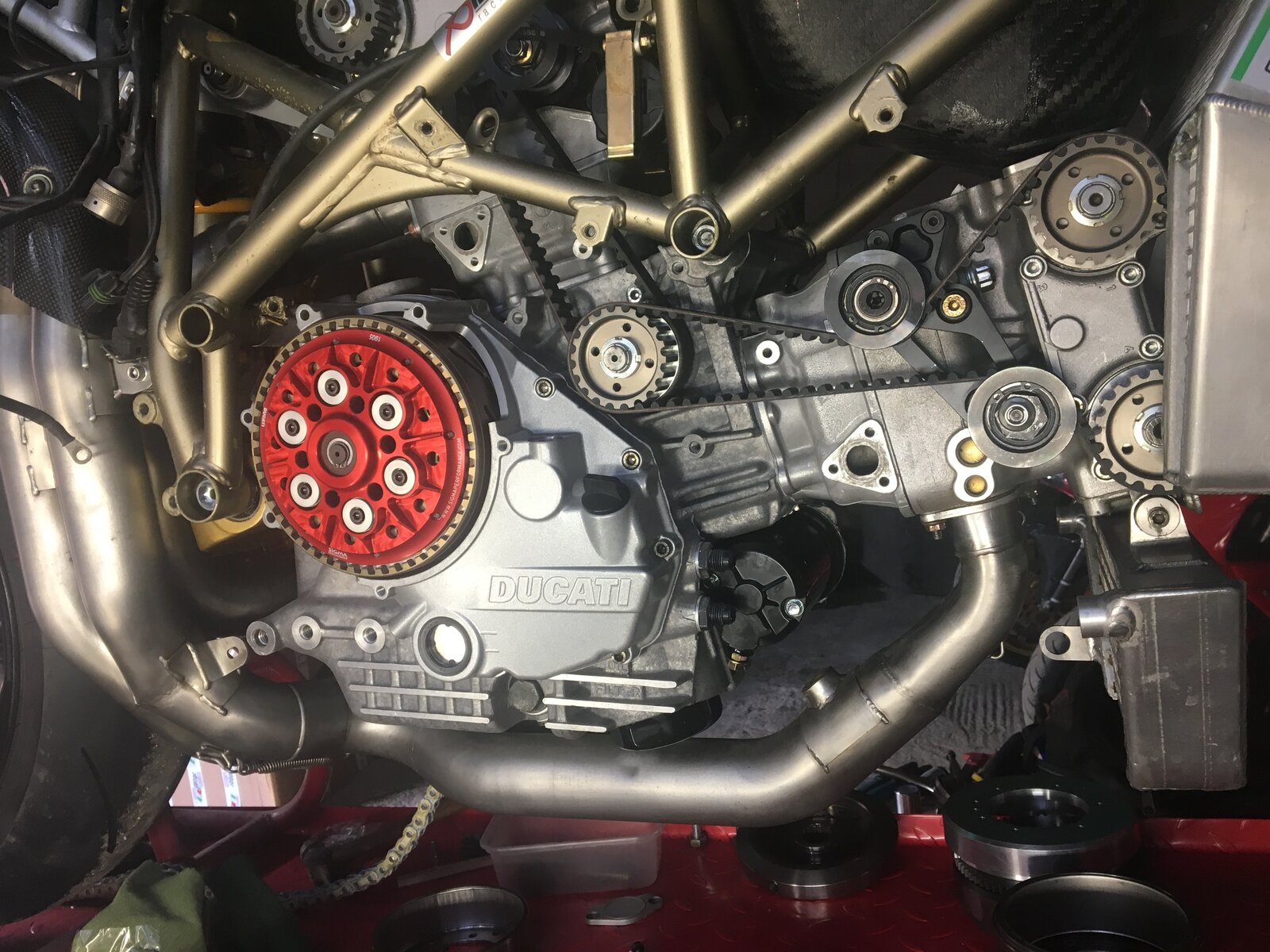

A couple of hours this evening have seen a new Sigma race clutch fitted into an old stock RS case.



Waiting for all the carbon to return from the painters.
Then the sticky job of applying decals.



You’re right but it’s only there so I could put it into gear and set the air gaps on the sensors.
Waiting for the rearsets to arrive then the correct lever with a shifter will be fitted.
Don’t forget that it’s 1 up and 5 down on race bikes.



Well spotted!
The cases and barrels are ex Hodgeson 99 996RS



it looked strange without one so I just dropped it on. Not bolted on because it’s a road guard and the wrong spacings
The correct one is being painted.
